Specifications
Transport Height :
910±30mm
Place of Origin :
China
Warranty :
1 year
Packaging Details :
Wooden
Delivery Time :
5-7 days
Certification :
CE,ISO
Brand Name :
HSTECH
Supply Ability :
100 PC/Month
Price :
Negotiation
Model Number :
HS-C600
Signal :
SMEMA
Product Name :
PCB Conveyor
Payment Terms :
T/T
Width Adjustment :
Hand Crank
PCB Width :
50*50~530*460mm
MOQ :
1 PC
Description

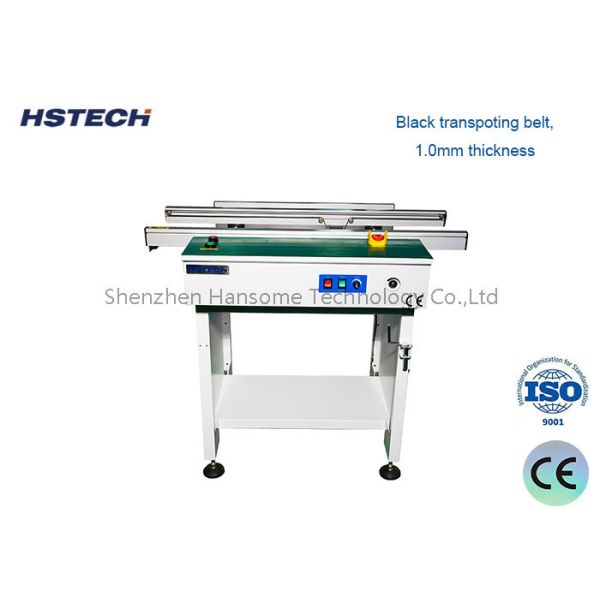

SMT PCB Conveyor With ESD Working Table Manual Width Adjust PCB Transport Machine
This height-adjustable PCB conveyor with ESD working table is a reliable solution for SMT production lines, featuring adjustable width, speed control, and SMEMA compatibility to enhance PCB handling efficiency.
Product Overview
The PCB Conveyor is an essential piece of equipment in SMT production lines, designed to transport PCBs smoothly and efficiently between different machines including printers, pick-and-place machines, AOI systems, and reflow ovens. Built with a stable structure and user-friendly design, this conveyor ensures safe, precise, and continuous board transfer, helping manufacturers improve productivity and reduce manual handling.
Key Features
PLC Intelligent Control
Equipped with a Programmable Logic Controller (PLC) for accurate and stable operation, ensuring consistent PCB transfer across your production line.
Adjustable Width Design
  • Manual hand crank width adjustment
  • Smooth and parallel adjustment via stainless steel screw system
  • Suitable for different PCB sizes
Bi-Directional Transfer
Supports left to right (L -> R) and right to left (R -> L) transfer directions, providing flexible installation for various SMT line layouts.
ESD Safe Working Surface
Designed with an ESD-safe conveyor belt to protect sensitive electronic components from static damage.
Speed Control Function
Adjustable conveyor speed allows synchronization with upstream and downstream equipment, ensuring smooth workflow.
Stable and Durable Structure
  • Adjustable height with stable foot cups
  • Strong frame for long-term industrial use
  • Compact and space-saving design
SMEMA Compatible
Fully supports SMEMA communication protocol, enabling seamless integration into automated SMT production lines.
Technical Specifications
Function Description
Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side, or customized
PCB width 50*50~530*460mm
Conveyor length options 0.5m/0.6m/1.0m/1.5m or customization
Speed adjust method Knob
Width adjustment Hand crank (optional auto adjust)
Power supply AC110/220V, 50/60Hz, ±10%
Options Light, Fan, Inspection function, Cover, Automatic width adjustment, dual rail, etc.
Signal SMEMA
Model Specifications
Model HS-C600 HS-C1000 HS-C1500
PCB width 50*50~530*390mm 50*50~530*390mm 50*50~530*390mm
Machine dimension 730*600*940mm 1130*600*940mm 1630*600*940mm
Weight 60kg 80kg 100kg
