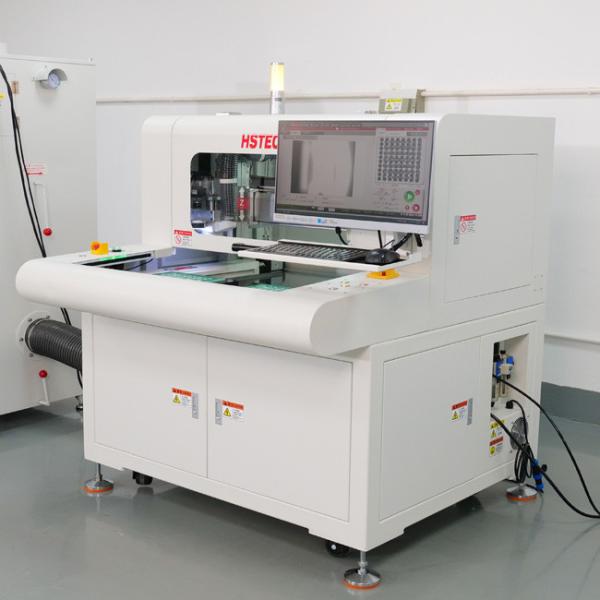

High-Speed Automatic Dual Spindle PCB Depaneling Machine
Designed for high-density PCBA cutting with precision, efficiency, and reliability for SMT assembly applications.
Product Overview
The PCB Router Depaneling Machine is a high-performance, electric-controlled depaneling solution engineered for the electronics manufacturing industry. It efficiently separates multi-up PCBA boards into individual units with exceptional precision, eliminating mechanical stress and quality risks associated with traditional manual or V-cut depaneling methods.
Featuring a high-speed spindle (up to 60,000 RPM) and advanced servo-driven motion control, this machine is ideal for depaneling small to medium-sized PCBA boards, including high-density, complex designs. Select models with dual work platforms support continuous production, minimizing downtime and maximizing throughput in SMT assembly lines.

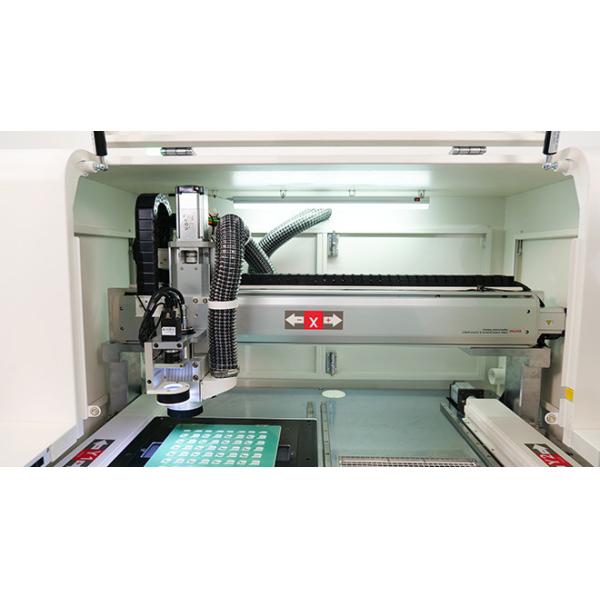

Core Working Principle
Unlike conventional depaneling techniques, the PCB Router depaneling machine utilizes a high-speed rotating tungsten steel milling cutter to cut along pre-programmed paths on the PCB. This advanced process delivers significant advantages:
  • No mechanical stress: The milling cutter removes material cleanly, preventing bending, cracking, or component damage
  • High precision cutting: Servo-driven system ensures consistent cut paths on complex, high-density boards
  • Clean, burr-free edges: High-speed spindle and dedicated dust collector eliminate debris and reduce burr formation
  • Programmable paths: Supports custom depaneling designs including irregular shapes and multi-up layouts
Key Features & Benefits
Feature Details Benefits
Electric Control, No Air Source Required Operates on pure electric power, eliminating compressed air pipelines Simplifies installation, reduces infrastructure costs, avoids air supply downtime
High Stability & Easy Maintenance Robust mechanical design with precision components and open structure Minimizes breakdowns, reduces maintenance time, extends service life
Simple Operation & Short Changeover Time User-friendly software with keyboard/mouse control and intuitive programming Reduces operator training, enables quick job switching, maximizes uptime
Dual Work Platforms (Select Models) Dual rotary work platforms allow loading/unloading during cutting Doubles production efficiency, eliminates idle time between batches
High-Speed Spindle (Up to 60,000 RPM) 5000~60000 RPM auto-cooling spindle with tungsten steel cutters Delivers clean, fast cuts on various PCB materials for all production volumes
Bottom Dust Collection System Large-capacity dust collector with bottom collection design Captures milling debris, maintains clean workshop, prevents component contamination

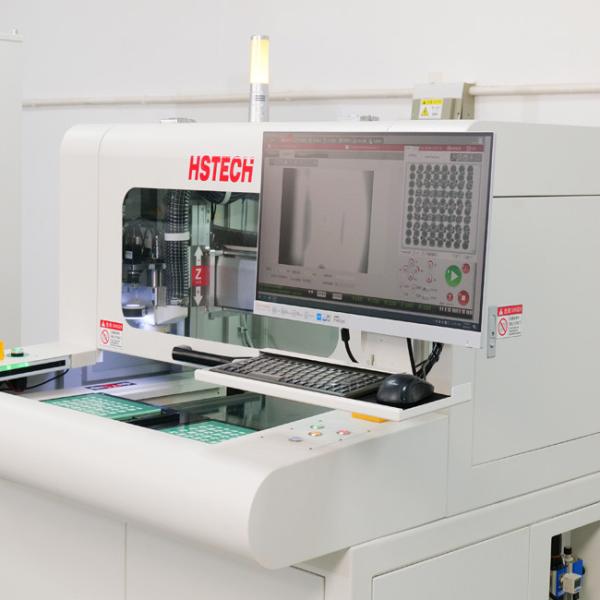

High-Speed Automatic Dual Spindle PCB Depaneling Machine For High-Density PCBA Cutting High-Speed Automatic Dual Spindle PCB Depaneling Machine For High-Density PCBA Cutting
Product Specifications
Item RT350 RT360 / RT360A
Model RT350 RT360 / RT360A
Structure Single Spindle, Dual Work Platforms Dual Spindle, Dual Work Platforms
Machine Size (mm) 1000*1200*1550 1200*1400*1550
Gross Weight 700kg 900kg
Dust Collector Size (mm) 625*600*1600 625*600*1600
Dust Collection Method Bottom collection Bottom collection
Work Platform Size 300*400mm 410*510mm
Platform Driving Type Double rotary platform, precision slicer with 3-phase motor inverter Double rotary platform, precision slicer with 3-phase motor inverter
Driving System X/Y/Z axis driven by servo motor; W axis driven by three-phase motor frequency inverter X/Y/Z axis driven by servo motor; W axis driven by three-phase motor frequency inverter
Routing Spindle 5000~50000 RPM, auto cooling 5000~60000 RPM, auto cooling
Cutting Speed 1–100mm/s 1–100mm/s
Cutting Accuracy ±0.05mm ±0.05mm
Repeat Accuracy ±0.02mm ±0.02mm
Axis Moving Speed 800mm/s 800mm/s
Z Axis System Screw driven, dual guide Screw driven, dual guide
Router Kit Milling cutter, φ0.8~φ3.0 left rotation, shank tungsten steel Milling cutter, φ0.8~φ3.0 left rotation, shank tungsten steel
Tool Life Control Software program control Software program control
Active Protective Function Safety light curtain Safety light curtain
Security Door Manual door Manual door
Error Alarm Yes Yes
Program Method Self-programming, camera controlled by keyboard and mouse Self-programming, camera controlled by keyboard and mouse
Applications & Suitable Industries
This PCB Router depaneling machine is widely used in electronics manufacturing industries requiring precise, stress-free depaneling:
  • Consumer electronics: Smartphones, wearables, and home appliances with small to medium-sized PCBA boards
  • Automotive electronics: ECUs, sensors, and control modules requiring high reliability
  • Medical devices: Medical equipment PCBs where component integrity is critical
  • Telecommunications: Network devices and routers with high-density, fine-pitch components
  • Industrial control: PLCs, motor drives, and industrial automation systems
