Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Specifications
Delivery Time :
25-30 days
Place of Origin :
China
Warranty :
1 year
Price :
Negotiation
Power supply :
AC380V 50HZ 65A
Drying temprature :
Max 99°
Certification :
CE,ISO
Supply Ability :
50 PC/Month
Machine body material :
304 stainless steel
Brand Name :
HSTECH
Payment Terms :
T/T
Packaging Details :
Wooden
MOQ :
1 PC
Machine power :
approx 26kw
Model Number :
HS-810
Product name :
Offline PCBA Cleaning Machine
Description
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
The HS-810 integrated offline PCBA cleaning machine is an economical and efficient batch cleaning system designed to remove various residues from electronic products. This advanced system handles water-soluble residues, RMA (moderately active rosin), lead-free flux without washing, electroplating salts, fingerprints, dust, and solder balls. The complete cleaning, rinsing, and drying process occurs within a single chamber, effectively reducing chemical usage and consumption.
Key Features
  • 304 Stainless steel machine body with touch screen control
  • Suitable for all cleaning requirements with programmable cycle cleaning
  • Cleaning solvent recycling system saves chemical consumption
  • Multiple cleaning nozzles for fast cleaning times
  • Three cleaning bars (top, middle, bottom) for 360-degree cleaning without blind spots
  • Observation chamber for monitoring the entire cleaning process
  • Circulating hot water system for chemical cleaning section
  • External exhaust port with regulating door and quick connector spray bar system
  • Low liquid level automatic water filling function
  • Oversized cleaning basket (L610×W560×H100mm) with dual layer design for large PCBA requirements
Standard Configuration
Component Included
Touch screen control system Yes
Alarm system Yes
Durable 304 stainless steel construction Yes
Programmable cycle cleaning solutions Yes
Cleaning solvent recycling system Yes
Three cleaning bars (top, middle, bottom) Yes
Observation cleaning window Yes
Stainless steel PCB structure Yes
Chemical cleaning hot water cycle system Yes
Exhaust air connector Yes
Fast connection cleaning spray bar Yes
Low liquid automatic solvent filling system Yes
Cleaning basket: 610×560×100mm, dual layer Yes
3 PH, 380 VAC, 5 wires power supply Yes
Optional Equipment
Option Availability
0.3T/H DI water producing device (resistivity above 15 meters) Yes
Customized fixtures Yes
Technical Specifications
Parameter Specification
Machine size L1500 × W1300 × H1830 (mm)
Inner chamber size L690 × W620 × H715 (mm)
Cleaning basket size 610 × 560 × 100 (mm), dual layer
Machine power Approx 26kW
Control mode Touch screen + PLC
Machine body material 304 stainless steel
Mesh material 304 stainless steel
Power supply AC380V 50HZ 65A
Air supply 0.45Mpa～0.7Mpa
Weight Approx 600kg
DI water requirement >15MΩ
DI water inlet 0.5 m³/h
Noise < 70 dB
Spraying pressure 30-40psi
PCBA thickness 0-100mm
PCBA weight Less than 10kg
Chemical cleaning temperature 25-75℃
Drying temperature Max 99℃
Spray pipe installation Fast connector, easy replacement
Water pipe installation Fast connector, easy maintenance
Chemical solvent filter 0.45μm (filters solder paste, rosin, and flux contaminants)
DI water filter 0.45μm (filters solder paste, rosin, and flux contaminants)

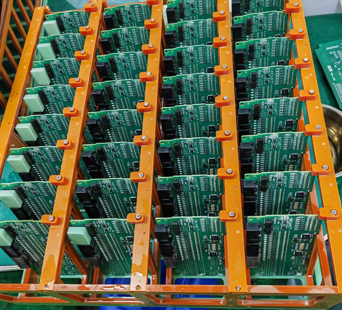

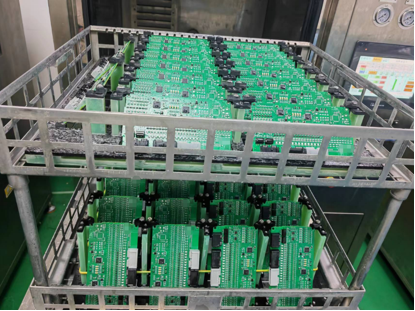

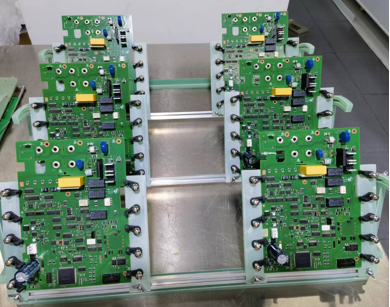

Cleaning Fixtures
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System

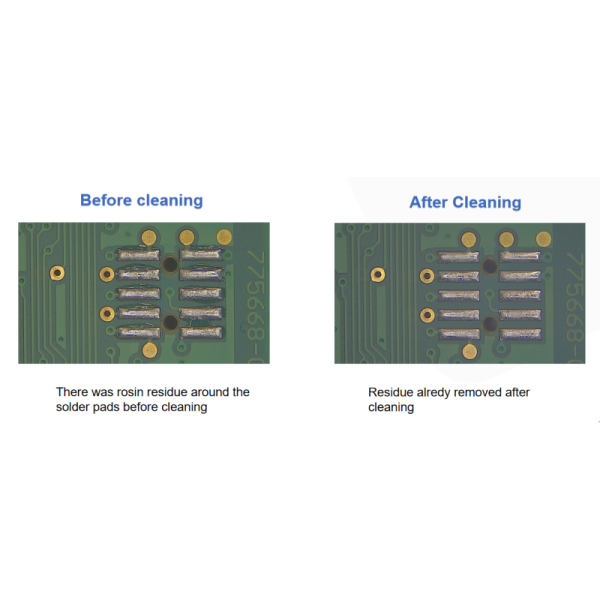

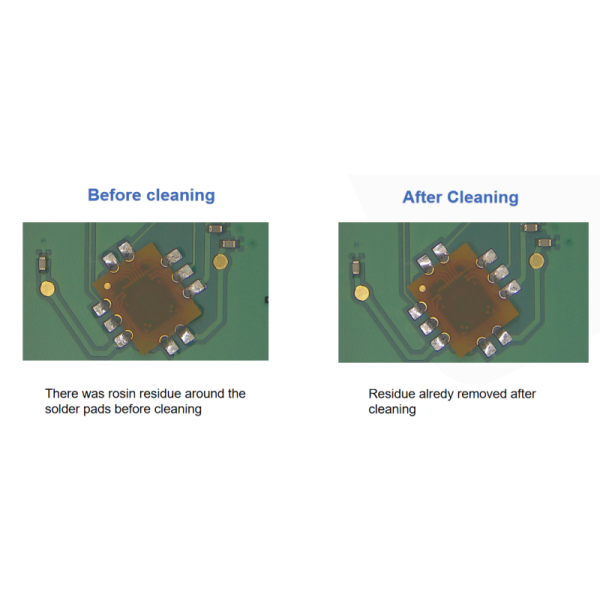

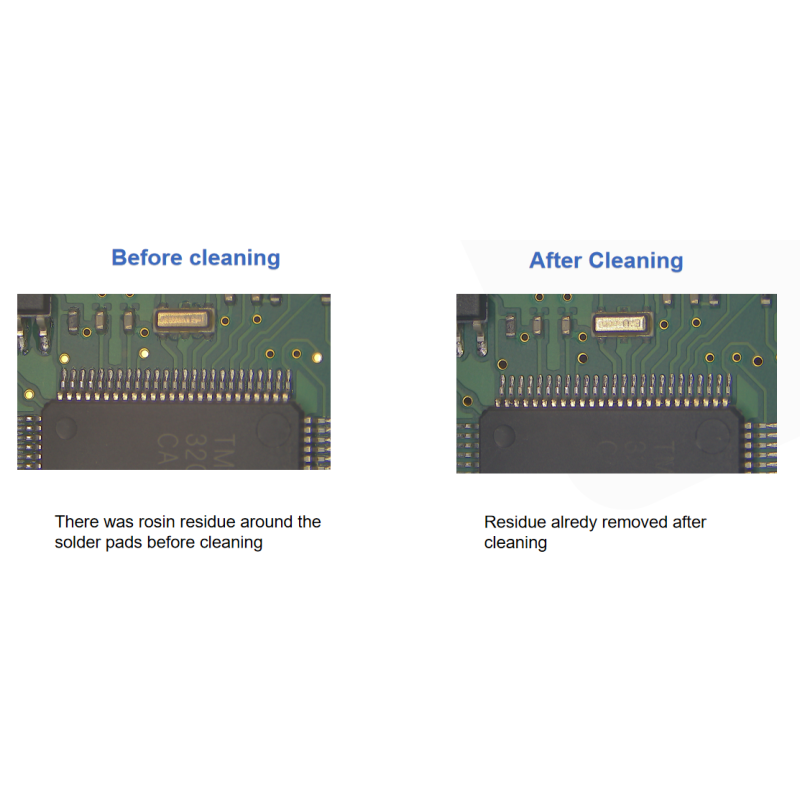

Cleaning Performance
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
Applications
Communications & Consumer Electronics: Post-soldering cleaning of PCBs/PCBAs for routers, base station equipment, and precision instruments. Removes rosin and solder paste residues to prevent short circuits and signal interference.
R&D Prototyping / Pilot Production: Cleaning of sample boards and small-batch pilot production boards in laboratories and R&D centers. Offers flexible adaptability to various PCBA models and contamination levels.
PCBA Repair & Rework Cleaning: Cleaning of circuit boards following repair or rework procedures. Removes residual solder, flux, and contaminants to restore board performance and reduce scrap rates.
Precision Electronics Packaging: Cleaning of semiconductor packages and micro-modules. Removes microscopic particles and organic residues to meet stringent high-precision assembly requirements.
Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
