NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal
NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal
Specifications
Brand Name :
HSTECH
Model Number :
HS-NK250
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10~15 work days
Packaging Details :
Wooden package, with foam
Product name :
NG OK PCB unloader
Material :
Stainless Steel
Structure :
Belt Conveyor
Warranty :
1 Year
Application :
SMT PCB Assembly Production Time
PCB Thinckness :
Min 0.6mm
Pitch Selection :
1-4（10mm pitch）
Power :
0.05kw
Air Consumption :
Max 15L/min
Description

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

This machine is used behind the AOI, to collect OK and NG PCBs separately after signals of AOI equipment.

Features

1. PLC program control.
2. Strong, firm
3. Optional control button or touch screen control up to customers.
4. Top and bottom pneumatic clamps to secure magazine rack.
5. No PCB breakage guarantee during loading&unloading.
6. Automatic NG/OK board separate store NG/OKboards.
7. NG/OK signal from the upstream AOI machine.
8. Self programmed machine error display,different errors have different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9. Enclosed machine design for safety operation.
10. Three color tower light display.
11. SMEMA compatible.

Specification

Model HS-250-NK HS-330-NK HS-390-NK HS-460-NK
Power Supply AC110V/AC220V 50H60Hz
Air Supply 5kgf/C M2
PCB Size(mm) 50*50~330*250 50*50~455*330 50*50~530*390 50*50~530*460
PCB Direction left to right or right to left
Magazine Size(mm) 335*320*563 460*400*563 535*460*570 535*530*570
Step pitches(mm) 10,20,30,40
Transport Height(mm) 900±20
Transmission Speed 10m/s
Main Motor Power 420W
Machine Size(mm) 1510*1530*1250 1910*1630*1250 2160*1760*1250 2160*1900*1250
Weight(kgs) 220 280 340 380

Operation diagram

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

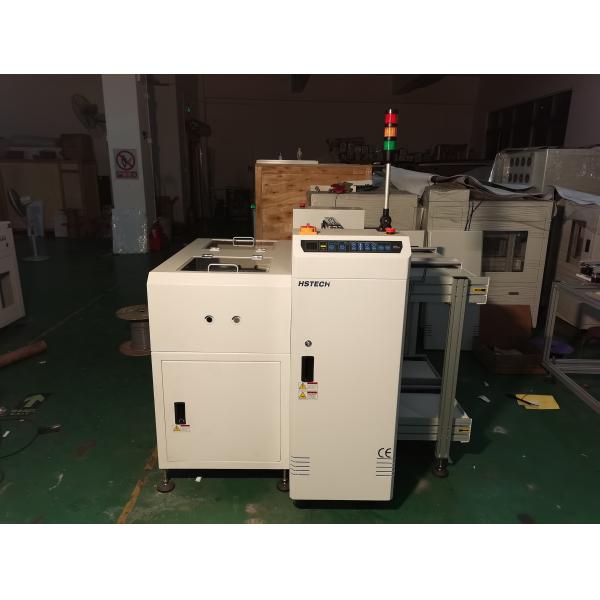

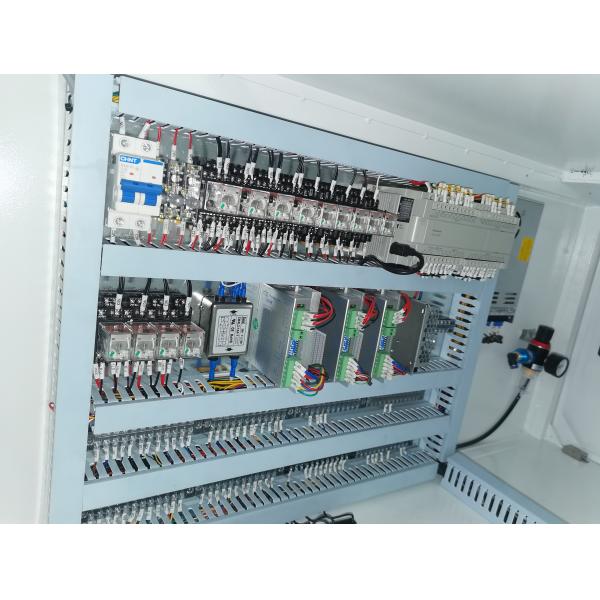

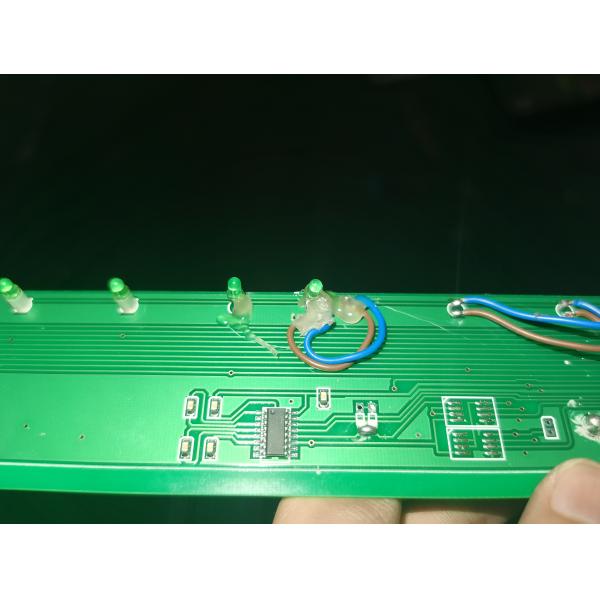

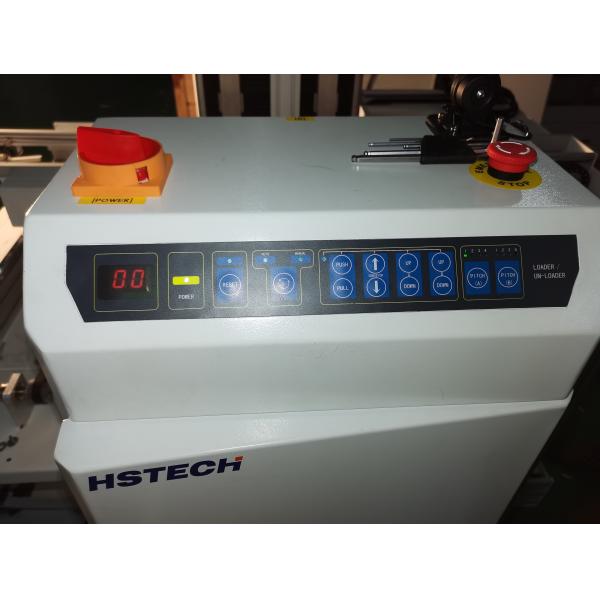

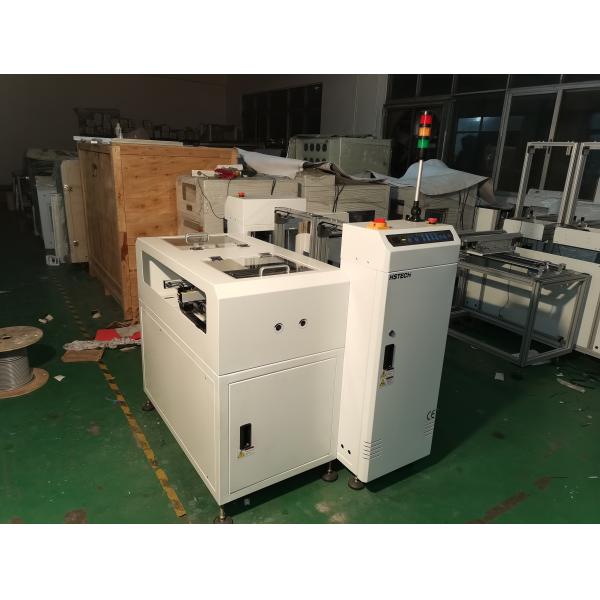

Product physical picture

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

Application

It is used in the AOI backend of SMT and DIP production lines to receive signals from AOI and automatically distinguish and store NG/OK PCBs. It is suitable for machines with PCB specifications of 50 * 50~330 * 250. Other sizes of PCB boards can be customized according to the customer's actual situation, or due to site size limitations, they can also be customized according to the actual situation

About Packaging

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal

NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal
