Single Screw Driver Screw Fastening Machine for Fast and Accurate Assembly
Single Screw Driver Screw Fastening Machine for Fast and Accurate Assembly
Single Screw Driver Screw Fastening Machine for Fast and Accurate Assembly
Single Screw Driver Screw Fastening Machine for Fast and Accurate Assembly
Specifications
Brand Name :
HSTECH
Model Number :
HS-SL5331
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package, foam inside
Product name :
4Axis Screw Fastening Machine
Feeding :
Suction feeding
Screw feeder :
Single, or customized two
Screws compatible :
M1-M6, or customized
Moving Range :
500*300*300*100mm
Material :
Aluminum
Port :
Shenzhen
Warranty :
One year
Description

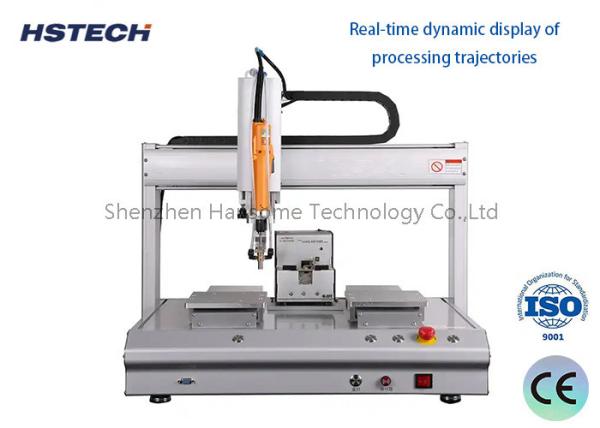

Double Working Station Single Screw Driver Fastening Machine
Introduction
This screw machine is a widely used screw fastening machine, compatible for many industries, smart phone, PC, electric device, furniture industry, etc. It's a 4 axis screw lock machine, with double working station, single screw driver and single feeder, the whole machine include a feeding system and a screw-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency.
Specification

Model HS-SL5331
Production name 4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 746*585*800mm
Machine weight 65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
