Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power
Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power
Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power
Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power
Specifications
Brand Name :
HSTECH
Model Number :
HS-620
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100 sets per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package
Product Name :
BGA Rework Station
Warranty :
1 Year
Control :
Touch screen
PLC :
MITSUBISHI
Relay Brand :
Schneider
Optoelectronic Switch :
OMRON
Material :
Aluminum Alloy
Condition :
New
Thickness :
0.3 - 5mm
Signal :
SMEMA
Application :
Electronic Assembly
Color :
Silver
Control System :
PLC
OEM/ODM :
Available
Total power :
2600W
Power Supply :
AC220V
Air Pressure :
4-6bar
Mounting accuracy :
±0.01mm
Type :
Automatic
Weight :
30KG
Description

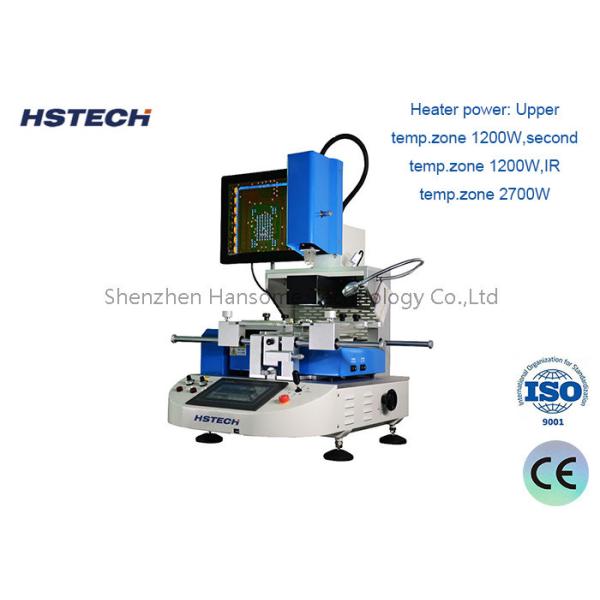

Manual & Automatic Laser Position MCGS Touch Screen Control BGA Rework Station

​Specification

BGA Rework Station Model:HS-620
Power Supply AC 220V±10% 50/60Hz
Total power 3500W
Heater power Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W
Electric material Driving motor+PLC smart temp.controller+color touch screen
Temperature control independent temp.controller,the precision can reach ±1℃
Temperature Interface 1pcs
Locating way V shape slot,PCB support jigs can adjust,laser light do fast centering and position
Overall dimension L650mm*W630mm*H850mm
PCB size Max 450mm*390mm Min 10mm*10mm
BGA size Max 80mm*80mm Min 1mm*1mm
Weight of machine 60KG
Usage Repair chips / phone motherboard etc

About Packaging

Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power

Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power

Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power

We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.


At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
