Specifications
Brand Name :
HSTECH
Model Number :
HS-F550
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
1 month
Packaging Details :
Wooden case with foam protective
Product name :
Inline V-cut PCB Separating Machine
Other name :
PCB Depaneling Machine
Circular blade size :
Φ125*30*3mm
Linear blade size :
420*45*6mm
Cutting thickness :
High speed steel cutting tool
Application :
Tic Tac Toe Connected PCB Panel
Working Voltage :
AC220V,50/60Hz
Warranty year :
1 year
Description

Linear and Circular Blade Fixture Equipped Inline Vcut PCB Depaneling Machine

Description

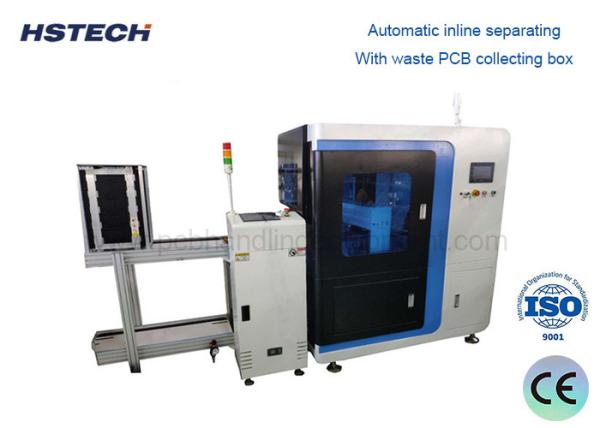

This PCB separating machine is a full automatic inline V-cut type PCB separating machine, it's use the PCB loader to achieve automatic PCB loading, and the belt will trasport the PCBs for X axis and Y axis automatic Separating with linear blade and circular blade combined.

Operator just put the boards into the magazines and wait the PCB units after separating at the end of the machine.It's a high automatic PCB separating machine.

Features


1, Automatic inline separating.

2, Automatic feeding with PCB loader, automatic X axis and Y axis direction vcut separating.

3, With waste PCB collecting box.

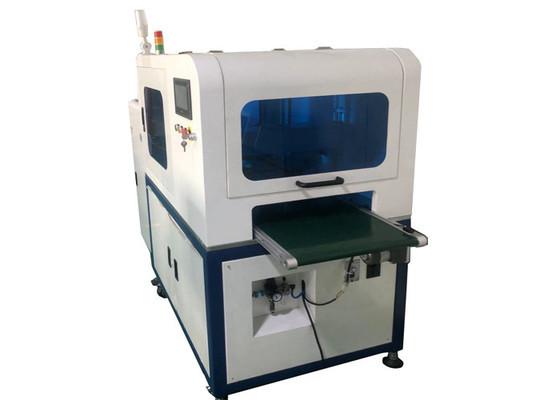

4, Transporting belt for collecting after separated.

5, PLC control precision PCB depaneling, can connect the PCB loader machine, full automatic from board loading and collecting.

6, Save the labour for manual loading the PCBs, much efficiency and more precision.

Specification

Model HS-F550
Efficiency cutting length 0-500mm
Separating width ≤ 300mm
Circular blade size Φ125*30*3mm
Linear blade size 420*45*6mm
Blade thickness 0.3-0.6mm
Separating speed Adjustable
Separating thickness ≤2mm
Blade material Overseas high quality steel blade
Production ability 100,000pcs per day
Voltage AC110V/220V
Air pressure 0.5-0.8Mpa
Power 1.1KW
Machine dimension 1500*550*1550mm
Weight 325KG
