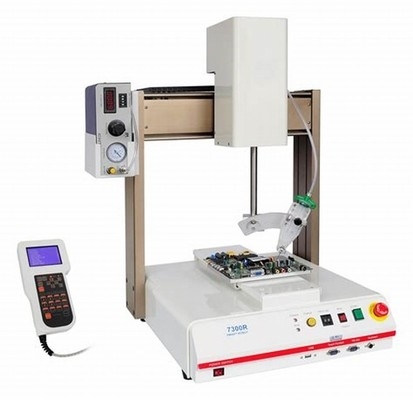

Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
Specifications
Brand Name :
HSTECH
Model Number :
HS-CC300
Certification :
CE,TUV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10-20 days
Packaging Details :
Wooden case, with foam inside
Product name :
3Axis Selective Coating Machine
Axis :
3 Aixs or 5Axis
Power supply :
AC220V/110V
Transport height :
920±20mm
Machine weight :
600kg
Machine dimension :
1060x1200x1700mm
Description

Automatic Selective Conformal Coating Machine for PCBA SMT Backstage Process

Product introduction
1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.
2. Achieve selective coating for various kinds of PCB.
3. Straight line, circle, arc coating and dispensing.
4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.
5. Accuracy: ±0.02mm.
6. With high-speed, high reliability, high stability of the transmission and control system.
7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.
8. With smart automatic width adjustment function (automatically adjust after inputting the board width).

Machine Specification

Product nameSelective conformal coating machine
ModelHS-CC300
Transmission height920±20mm
Conveyor width50-450mm/or customized
Transmission L to R, or R to L
Component heightup and down max 100mm
Size of PCB board edge≥5mm
Transport speed0-12000mm/min
3 Axis drive speed800mm/s
Repeat accuracy±0.02mm
Storage programsup to 1000
Power supplyAC220/110V
Air pressure4-kgf/cm2
Glue tank10L,manual stirring
Control modeIndustrial PC+Motion control card
Linear guide adjustmentIntelligent adjust
Programming modeManual teaching
Communication portSMEMA
Lighting sourceSelf-equipped lighting source
Detection lighting sourceSelf-equipped
SoftwareWindows+coating software
Driving MotorStepper motor(2pcs)
3 axis driving modeServo motor+screw driver module+Electric Cylinder
Number of rubber valves1 spray valve+ 1 dispensing valve
Spray width3-20mm
Spraying methodAutomatic
Total power2.6kW
Machine bodyStainless steel
Machine weight600kg
Machine dimension1060x1200x1700mm

Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine

About Packaging

Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine

Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine

Automatic Selective Conformal Coating Machine For PCBA SMT Backstage Process 3Axis Selective Coating Machine
