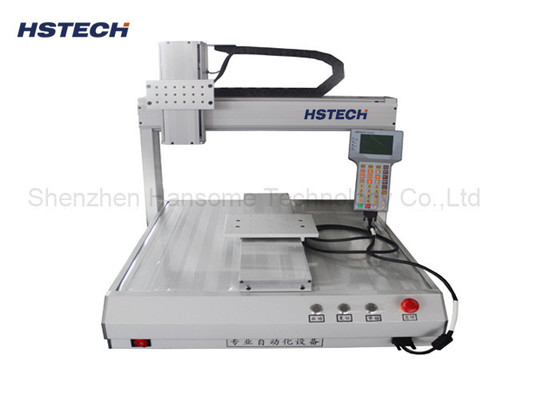

4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function
4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function
4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function
4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function
Specifications
Brand Name :
HSTECH
Model Number :
HS-D441
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100pcs per week
Delivery Time :
5~7 work days
Packaging Details :
Wooden package, with foam
Product name :
4Axis Glue dispensing machine
Driven System :
Stepper and Timing Belt
XYZ working range :
400*400*100mm
XYZ Speed :
Max 300mm/s
Repeat accuracy :
±0.02mm
Warranty :
1 Year
Description
Epoxy Glue Dispensing Machine Teach Pendant Stepping Motor With Vacuum Device 4Axis Glue Dispensing Machine HS-D441
Teach Pendant Stepping Motor Epoxy Glue SMT Dispenser with Vacuum Device 4Axis Glue Dispensing Machine
Technical Specifications
ModelHS-D441
Power Supply110V/220V 50-60Hz 350W
Glue Mixing Ratio1:1-10:1/Customizable
Dispensing Speed10-150g/5s (based on 1:1 glue proportion)
Dispensing PrecisionGlue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range400*400*100mm (Z axis can be rotated)
XYZ SpeedMax 300mm/s
Drive SystemStepping Motor + Timing Belt
Repeatability±0.02mm
PatternLines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting PrecisionAmount ±1%, Ratio: ±1%
ProgrammingTeach Pendant
ControlPLC
Leak-proof FunctionValve with Vacuum Device
Document SupportCAD, CorelDRAW
Weight40kg
Dimension (L*W*H)616*685*645mm
Machine Features
  • PC computer LCD screen operation, easy to program, easy to learn and understand
  • Functions include drawing points, lines, faces, arcs, circles, and continuous tween of irregular curves for any 3D non-planar track path
  • Parameterized control of glue size, glue speed, dispensing time, and stopping time
  • Special dispensing controller ensures stable glue output, clean dispensing, and no leakage
  • Quick dispensing on inner, outer walls, vertical surfaces, gaps, and spherical surfaces
  • Customizable with fixtures, glue guns, controllers, heating temperature control devices
  • Optional 1-4 head dispensing device for multiple glue guns operating simultaneously
  • Software features include regional display, translation rotation operation
  • Trapezoidal acceleration and deceleration, speed preview, micro line interpolation technologies
  • High-speed, low-noise Japanese stepping motor for precise positioning and stable performance
4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function 4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function
Packaging Details
4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function 4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function 4Axis Glue Dispensing Machine with Teach Pendant Programming, ±0.02mm Repeat Accuracy, and Vacuum Device Leak-proof Function
