Product Overview:

Carbon Oil PCB from PCBGATE is designed for stable contact and long life.
The carbon layer is printed on the PCB surface to replace gold plating, offering a cost-effective solution for keypads, remote controls, and industrial devices.

Key Selling Points:

· Professional PCB manufacturer with over 15 years experience

· Stable carbon ink with good conductivity

· Cost-effective alternative to gold plating

· Suitable for keypad and contact applications

We are skilled manufacturer in varied Carbon PCB/PCBA with nine years expertise, our cabon PCB is especially used for potentiometer, automotive air con door sensors, automotive wipers, automotive dimmers and resistance sort controllers. we are able to give an inexpensive worth with top quality product.

Main technical parameters:

Resistance Range: 1KΩ to 1MΩ

Resistance tolerance: ±15% (inclusive) or more

Durability: more than 1 million times

Special introduction of manufacturing process

PCB printing insulation paint, silver paint, carbon paint, ink, peelable adhesive need to go through 170°C~230°C, after high-temperature sintering and curing, the film is polymerized, and high-temperature ovens and tunnel furnaces are high-power devices (50KW~60KW).

Production Flow

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

It is widely used in remote controls, membrane switches, and control panels.

Our factory ensures:

· Stable resistance value

· Strong adhesion

· Long working life

We support prototype, small batch, and mass production.

Our PCB manufacturing capability includes:

· Carbon ink printing

· Multilayer PCB up to 38 layers

· HDI PCB fabrication

· Controlled impedance PCB

· Quick turn PCB service

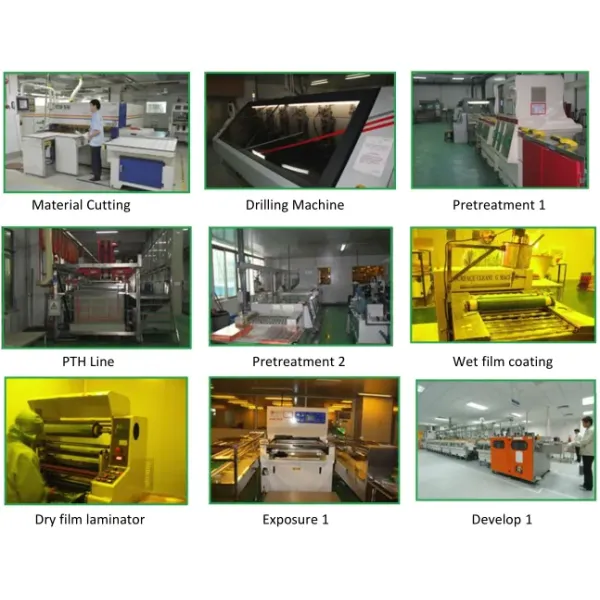

Production Process:

PCB Manufacturing Process:

Engineering Review → Material Preparation → Circuit Pattern → Copper Bonding → Etching → Solder Mask → Surface Finish → Testing → Packing

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

Key Specifications

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

Why Choose Us

•15years experience in PCB manufacturing.

•Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

•Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

•Own Global Supply System.

•Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

•New styles updating everyday and MOQ for all the styles;

FAQs

1. What's your MOQ?

A: Our MOQ is Minimum packaging quantity, please contact us for details.

2. What are your payment terms?

A:Advance T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Others

3.What files are required for PCB quotation?

A:Gerber files, PCB specifications and quantity.

Welcome to send us your PCB Gerber files for quotation.

Our engineering team will respond within 24 hours.
