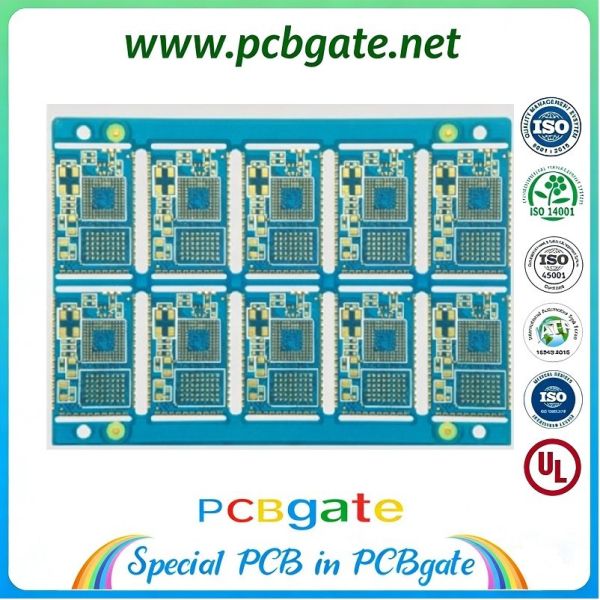

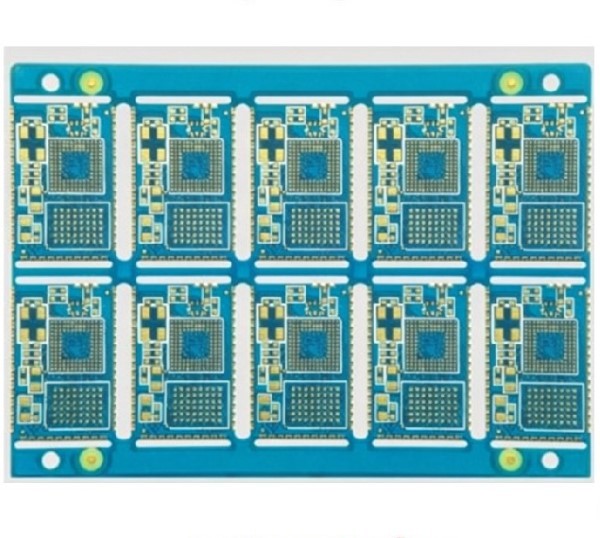

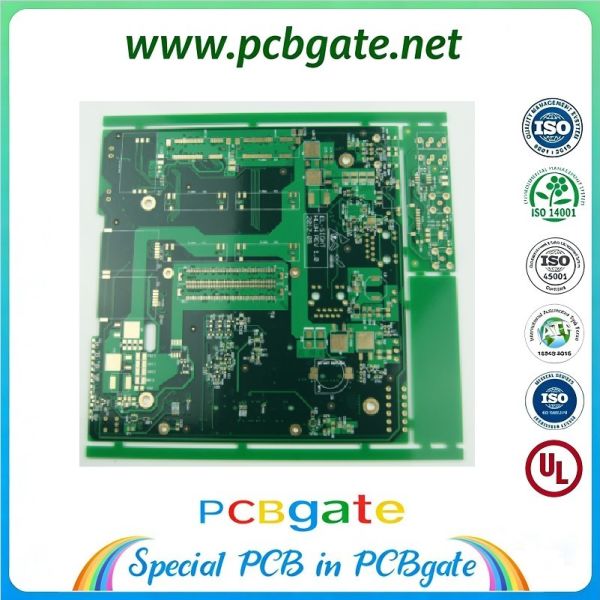

8-Layer RF PCB for Smart Auto: High-Precision Impedance Control

Product Overview:

Engineered for the future of autonomous driving and V2X systems, this 8-layer High-Frequency PCB provides unparalleled signal precision for complex automotive radar and telematics. The advanced multilayer structure optimizes thermal management and EMI shielding, ensuring reliable performance in high-density automotive environments. With a focus on signal integrity and long-term durability, this board is the ideal foundation for high-speed data processing in smart vehicle electronics and safety-critical modules.

Key Selling Points:

• 8-Layer Stack-up: Maximum signal isolation and routing for automotive RF.

• Precise Impedance: Guaranteed +/-5% tolerance for stable microwave transmission.

• Auto Reliability: High thermal stability for harsh road and engine conditions.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in High-Frequency PCB manufacturing, providing the perfect balance between signal integrity and thermal stability. By utilizing precision impedance control and advanced vacuum etching, we achieve the consistent dielectric performance required for your 8-layer automotive designs.

This structure is ideal for 5G telecommunications, automotive radar, and satellite navigation. We ensure E-test and signal integrity inspection to guarantee that every board meets the highest industrial standards for low-loss transmission.

We support High-Frequency PCB prototypes, small-batch production, and mass production to meet different customer requirements, offering expertise in handling premium materials like Rogers and Arlon.

Our PCB manufacturing capability includes:

• Premium RF Materials: Rogers, Arlon, and Teflon

• Hybrid Lamination: FR-4 + High-Frequency material hybrid stack-ups

• Low-Loss Performance: Low Df materials for minimal signal attenuation

• Surface Finishes for RF: Immersion Silver, ENIG, and ENEPIG for optimal conductivity

• High-Layer RF Structures: Multilayer high-frequency boards up to 20+ layers

• Quick-Turn Service: Rapid prototyping for RF and Microwave designs

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;

1. What's your MOQ and what is PCBgate's fastest delivery time?

A: Our MOQ is Minimum packaging quantity, please contact us for details. Sample to mass production all can be supported by PCBgate.

2. Which payment terms does PCBgate accept?

A:Advance T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Money Gram and Others.

3.What files are required for PCB quotation?

A:Gerber files, PCB specifications and quantity.

4. How to test PCB boards?

A: AOI, Fly probe testing, Text fixture testing, FOC etc. For bare PCB.

Shipping Information

Welcome to send us your PCB Gerber files for quotation.

Our engineering team will respond within 24 hours.
