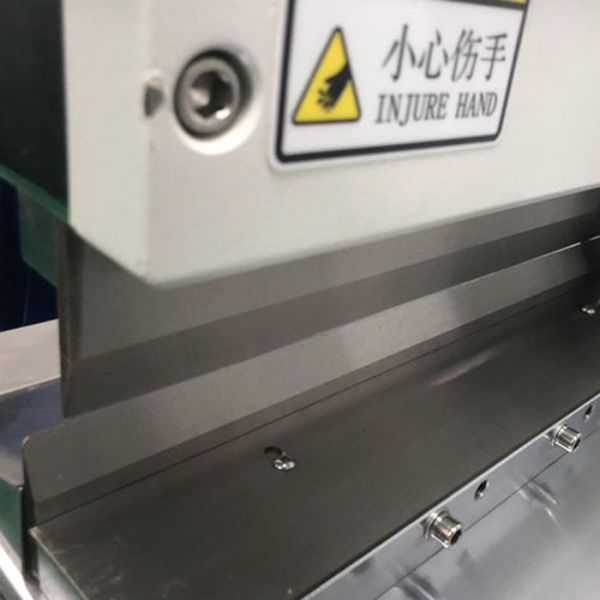

Max 2mm Clearance Metal Core Guillotine PCB Cutter with Adjustable Pressure for V Cut PCB Depaneling
Max 2mm Clearance Metal Core Guillotine PCB Cutter with Adjustable Pressure for V Cut PCB Depaneling
Specifications
Brand Name :
Winsmart
Model Number :
SMTPD2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD2000-5000/unit
Payment Terms :
T/T
Supply Ability :
500 units/month
Delivery Time :
3-5 working days
Packaging Details :
Plywood case
Device Name :
Pneumatic PCB depaneling machine
Minimize Speed :
0-400mm/s
Cutting Capacity :
330mm
Blade Type :
Linear Blade
Pcb Connection :
V-cut
Pcb Thickness :
0.3-5mm
Condition :
New
Name :
Guillotine PCB Cutter
Description
Max 2mm Clearance Metal Core Guillotine PCB Cutter PCB Cutting Machine
The Max 2mm Clearance Metal Core Guillotine PCB Cutter is a specialized depaneling machine designed for precise cutting and separation of printed circuit boards (PCBs). Using a guillotine-style cutting mechanism, it ensures clean, accurate cuts with minimal waste and damage to the PCB. Ideal for PCB manufacturing, prototyping, and repair environments where precision is essential.
Key Features
  • Max 2mm Clearance: Cuts PCBs with thickness up to 2mm for wide compatibility
  • High Precision Cutting: Low cutting stress provides smooth, precise cuts with minimal burrs
  • Ergonomic Design: Comfortable handle and cutting mechanism reduces operator fatigue
  • Adjustable Pressure: Customizable force settings for different material thicknesses
  • Heavy Duty Construction: Built for long-term use in demanding environments
  • Safety Mechanism: Locking system prevents accidental operation
Technical Specifications
ModelSMTPD2
Max cutting length400mm
CE approvalYes
PCB connectionV-cut
PCB materialFR4, MCPCB, CEM
PCB thickness0.3-5mm
Blade typeLinear blade
Cutting speedAdjustable
Cutting typeShear
OperationFoot pedal, manual
Primary Functions
  • PCB Panel Separation: Cuts V-grooved or pre-scored aluminum PCBs into individual units
  • Manual or Semi-Automatic Feeding: Operator places board; machine performs precise cut
  • Stress-Free Cutting: Applies even pressure to avoid component or board damage
  • Adjustable Blade Gap: Fine-tuning for different board thicknesses and scoring depths
  • Anti-Bending Support: Prevents board warping during cutting, especially for long LED strips
Key Advantages
  • Precise Cuts: High-accuracy cutting with minimal risk of PCB or component damage
  • Increased Efficiency: Guillotine mechanism reduces cuts and rework needed
  • Reduced Material Waste: Clean separation minimizes scrap and waste
  • Long-lasting Durability: Metal core construction enhances lifespan and reduces maintenance
  • Versatile Use: Suitable for wide range of PCB thicknesses and designs
  • Improved Safety: Protective features ensure safer working conditions
  • Ergonomics: Reduces operator strain during extended use
Customized Blade Available
Max 2mm Clearance Metal Core Guillotine PCB Cutter with Adjustable Pressure for V Cut PCB Depaneling
