Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision
Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision
Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision
Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision
Specifications
Brand Name :
Winsmart
Model Number :
SMTIRX
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD20000-80000
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100 Sets/Month
Delivery Time :
5-10 days
Packaging Details :
Plywood case
Color :
White
PCB Material :
FR4, Aluminum
PCB Thickness :
0.8-3.0mm
Fixture :
Customized
Cutting Precision :
±0.05mm
Max PCB Size :
350x350mm
Application :
Milling Joints PCB Separation
Product Name :
Full Automatic PCB Depaneling Solution
Description
Full Automatic PCB Depaneling and PCBA Tray Destacker/Stacker Solution 450x400mm
The Full Automatic PCB Depaneling and PCBA Tray Destacker/Stacker Solution is an integrated automation system designed to streamline PCB manufacturing processes. This comprehensive solution combines automatic PCB depaneling with automated tray management (destacking/stacking) capabilities, handling maximum tray sizes of 450x400mm.
Ideal for high-throughput PCB manufacturing environments, this system enhances workflow efficiency from depaneling operations to organized tray management, significantly reducing manual labor in electronics production, automotive, and telecommunications sectors.
Key Features
  • Fully automated operation for high-volume production
  • PC and CCD vision system for precise cutting accuracy
  • Programming with compensation and integrated dust collection
  • Bottom cutting and vacuum cleaner system for clean PCB surfaces and workshop environment
  • Flexible design adaptable to different product types with custom models available
  • Automatic tray loading of individual PCBA after depaneling
  • AGV-compatible tray handling system
  • Optional barcode scanner integration
  • MES connection support for smart factory integration
Technical Specifications
Main Depaneling Unit - Model SMTIRX
SpecificationDetails
Machine SizeApprox 1450(L) x 1100(W) x 1600(H) mm
Machine WeightApprox 800 kg
Max PCB Size350x350mm (customized), Dual tables
PCB Thickness0.4-6mm
Transmission Height900±50mm
Transmission DirectionLeft → Right or Right → Left
Transportation Speed1500mm/s
Feeding ModeSection type transportation guide rail
Rail Width AdjustmentManual
Communication SignalSMEMA
PCB PositioningFixtures positioning
Picking SystemVacuum, 40-60 nozzles
Cutting Spindle80000rpm/min (standard)
Cooling TypeSelf cooling
Automatic Tool ChangeManual
Break Knife CheckingYes
Cutting Accuracy±0.05mm
Routing Bit0.8-3.0 Diameter, right rotation
Repeat Accuracy±0.02mm
Coordinate Moving Speed1000mm/s
Unloading ModeESD Belt
Tool DetectionYes
Procedure ProgrammingGerber Drawing Import/Editing Program by Visual
Air Supply5-8kgs/cm²
Power SupplyAC 220V, 50/60Hz, 3KW
Tray Handling Unit - Model SMTDS-350
SpecificationDetails
Power SupplyAC220V 50Hz/3KW
Air Supply0.6MPa
DirectionL→R
Weight≈1200kg
Rail Width AdjustmentAuto
CommunicationSMEMA
Tray Sizemax 400x450mm
Tray Storage Height500 mm
Tray Moving Speed1000 mm/s
OSWIN10
PCB PositioningFixture
Counting FunctionSupport
Classified StorageOK, NG, Empty Tray
MESYes
ControlIndustrial PC
Operation ModeHuman-machine interface
PCB Transportation ModeCoordinate system transportation + vacuum suction cup
Operation permissions3 grades
Tray Storage Quantity10
CameraYes
AGV ConnectionSupport
NG JudgmentSupport
Industry Applications
This automated depaneling system is widely used throughout the electronic product manufacturing industry. Traditional manual depaneling methods generate significant stress that negatively impacts product quality, making machine-based depaneling the preferred solution. This inline router system features loader and unloader integration for ATE test lines, high-speed spindle operation, low-stress PCBA separation, and ensures precision and cleanliness for high-volume production environments.

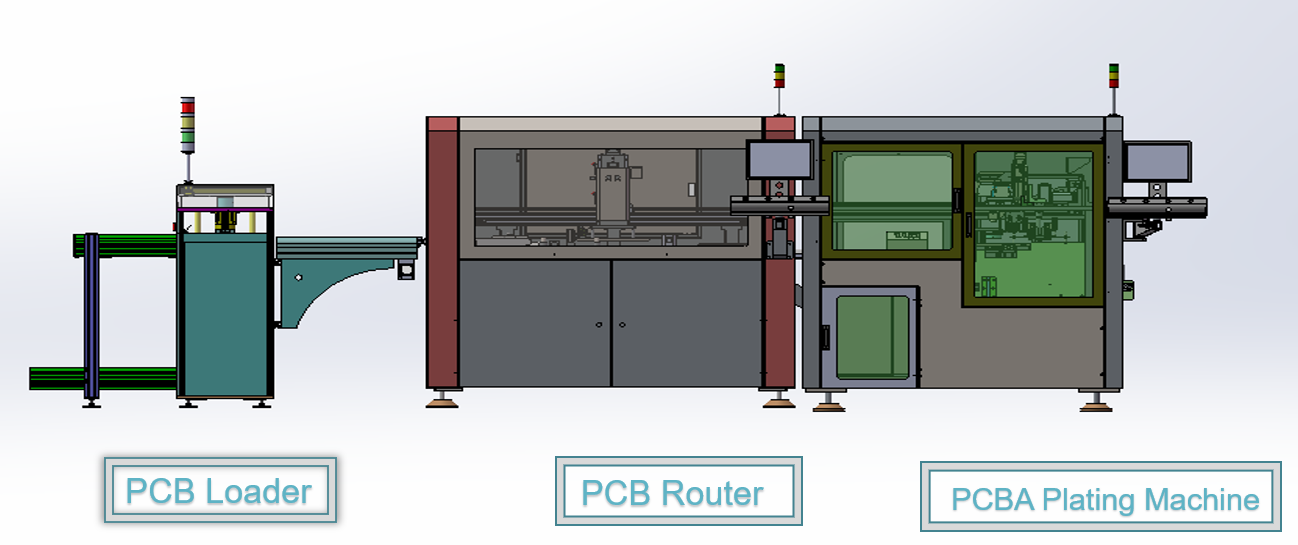

Solution Layout
Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision

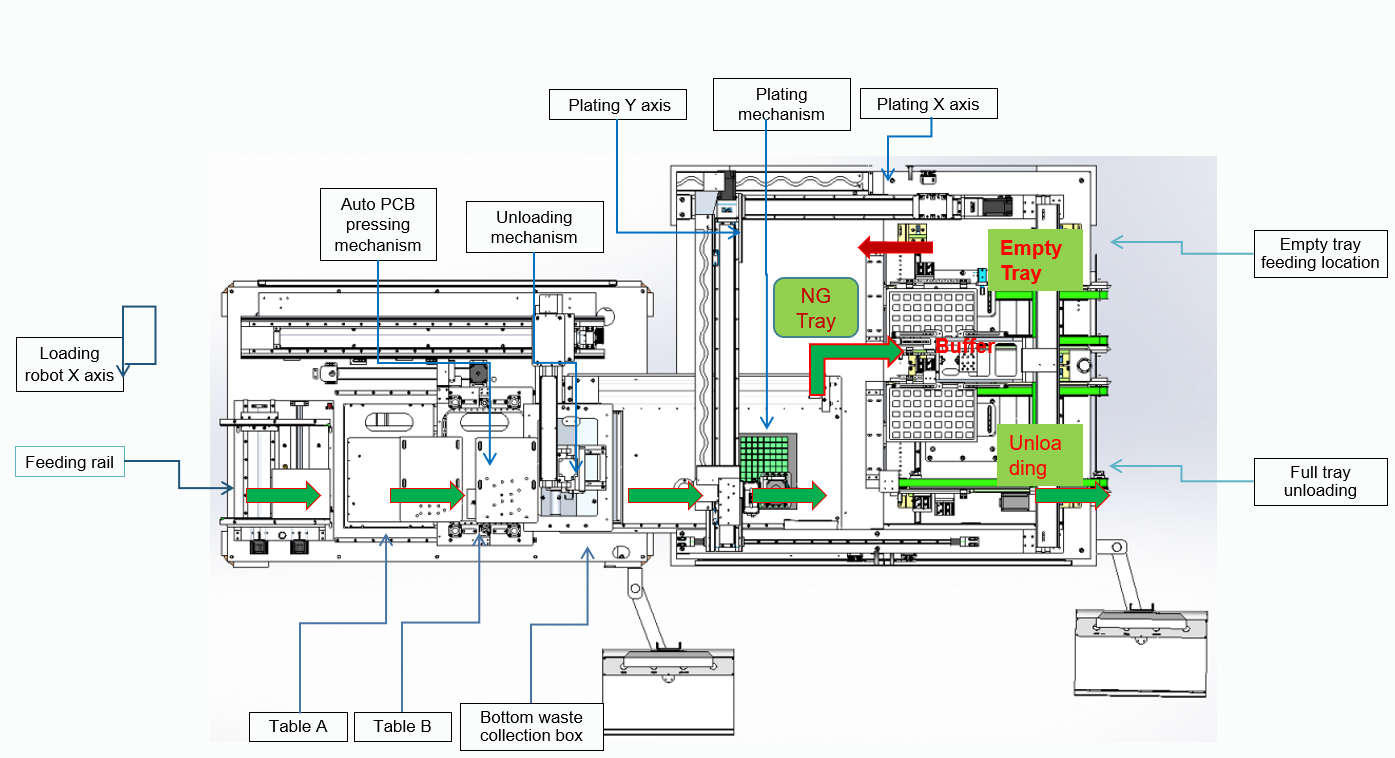

Solution Overall Mechanism Introduction
Full Automatic PCB Depaneling Router Machine with 450x400mm Tray Size and ±0.05mm Cutting Precision
