V Cut PCB Depaneling Machine Designed to Prevent Microcracks and Component Damage During Aluminum PCB Depaneling Process

V Cut PCB Depaneling Machine Introduction:

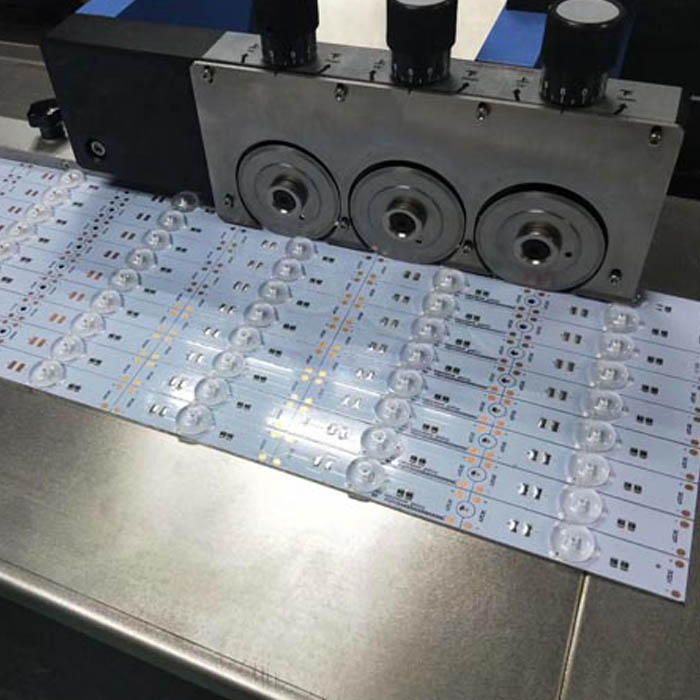

The 3-Group Cutter Aluminum PCB Separator is a specialized depaneling machine designed for high-precision, low-stress separation of aluminum-based PCBs, particularly used in LED lighting and power electronics. Featuring three groups of circular blades, this machine enables multi-stage progressive cutting, effectively reducing mechanical stress and preventing microcracks or component damage during the depaneling process.

Featuring compact structure, easy operation and low maintenance cost, the V-Cut depanelizer requires no professional training for daily operation. Its precise mechanical positioning greatly reduces board stress and product defective rate, significantly improving production efficiency and product consistency. Widely applicable in consumer electronics, automotive electronics, communication equipment and industrial circuit board manufacturing, it is a reliable and cost-effective depaneling equipment for modern electronic factories.

V Cut PCB Depaneling Machine Features:

1). Easy operation, high cutting speed. First blade set separate 40% of board, second blade set separate 40% of board, third blade set separate the rest 20% to finish depaneling.
2). 3 blade set share cutting stress as a straight line, to make sure lower stress to avoid bending issue.
3). Very good positioning for smooth cutting even if light v-scoring.
4). Blade is made of imported high speed steel which is durable, life time is 6-36 months.
5). Cutting speed is adjustable according to different application.
6). Precision scale for upper blades adjustment, blades are re-sharpened.

V Cut PCB Depaneling Machine Specification:

V Cut PCB Depaneling Machine Functions:

3-groups cutters cutting one V-scoring line to reduce cutting stress.

Adjustable cutting speeds.

Supports max 130mm PCB width.

Customized larger version is available.

Adjustable cutting speed to match material type and production needs.

Blade Height Adjustment

Accommodates varying board thicknesses and component placements.
