Mulit Blade Pcb Board Cutter Aluminum LED Pcb Depaneling Equipment
Mulit Blade Pcb Board Cutter Aluminum LED Pcb Depaneling Equipment
Specifications
Brand Name :
Winsmart
Model Number :
SMTD3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
Color :
Blue
PCB Material :
FR1, FR4, CEM1, CEM3, MCPCB
Blade Dimension :
2x14x57mm
Cutting Length :
No limit
Origin :
China, New
Name :
LED PCB Separator
Description

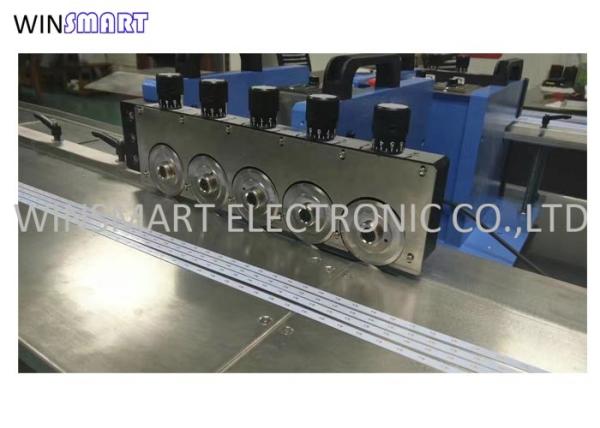

Mulit Blade Aluminum LED PCB Separator LED PCB Cutting Machine

LED PCB Separator Introduction:

1. Equipment designed to minimize board stress and avoid component damage.

2. Five pairs of precision beveled cutting blades ensure the board does not bend or deform.

3. The guide can be adjusted vertically to suit different LED boards.

4. Depth between upper circular blades can be precisely adjusted to reduce stress on score line edge and blade wear.

LED PCB Separator Features:

1. Separates panels up to 0.1"

2. The longest panel: No limit

3. Minimum board thickness of 0.024"

4. Shears boards safely with parts as close as 0.02" to score line.

5. Only allow correct boards placement to avoid mistakes.

LED PCB Separator Specification:

Model SMTD3L　
Machine Dimension 400x400x330mm
Platform Dimension 2400x300x200mm
Max Cutting Length No limit
PCB Material FR4, MCPCB, Copper Boards
Cutting Speed 0-500mm/s
PCB Thickness 0.6-3mm
Power 220/110V
Machine Weight 50kgs
Wooden Case Dimension 116x67x58cm
Gross Weight 85kgs

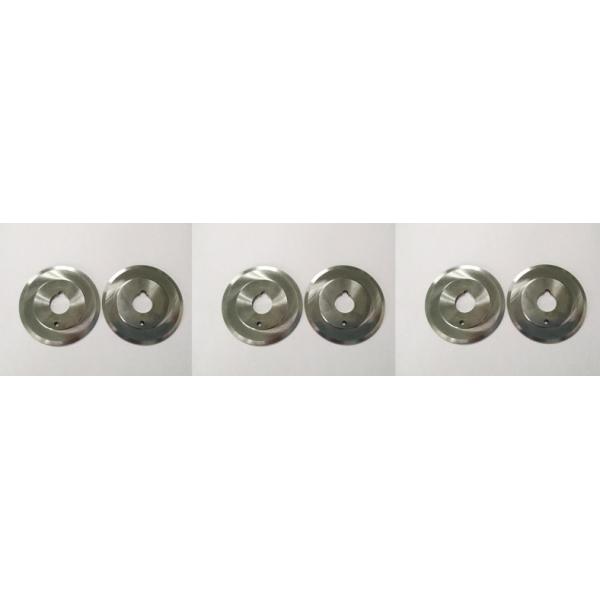

LED PCB Separator Blades:

Mulit Blade Pcb Board Cutter Aluminum LED Pcb Depaneling Equipment
