50W 330mm Cutting Length PCB Cutting Machine 500mm/s
50W 330mm Cutting Length PCB Cutting Machine 500mm/s
Specifications
Brand Name :
Winsmart
Model Number :
SMTAD4
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
Warranty :
1 year
Condition :
New
Blade Material :
High Speed Steel
Cutting Speed :
100-500mm/s
Power :
50W
Name :
Pizza Cutter PCB Depanelizer
Description

Pizza Cutter PCB Depanelizer 300mm Cutting Length PCB Cutting Machine

Technical Specification:

50W 330mm Cutting Length PCB Cutting Machine 500mm/s

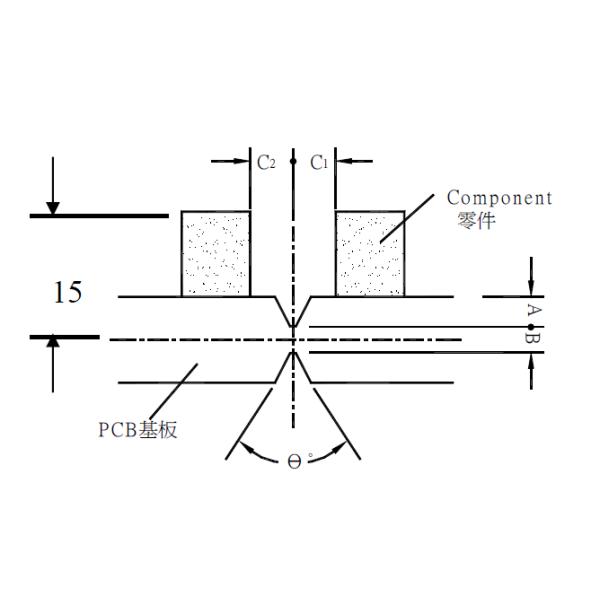

A : > 0.25mm

B: 1.0mm(Max)

Standard cutter :

C2: ≧2mm C1: ≧0.3mm

Θ: ≧200
Max.Cutting length (mm) 15-300mm
Cutting thickness (mm) 0.8~2.0
Cutting Speed (mm/s) 0~400
Voltage (VAC) 220
Machine Weight (KG) 42

Features:

1. Minimize the shearing stress to avoid micro-cracks of the solder joints.

2. Guiding device of the “V-CUT” can easy setting the edge of PCB and the height of the tabletop to fit for difference kinds of thickness of PCB.

3. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.

4. Cutters can be re-grinded.

5. The shape of the cutter can be customer made.


Installation:

Placing the machine on the table which should be flat and stable.

The parallelism of the machine can be adjusted by the foot on a small scale

Power connection:

Connect the power plug to the 220VAC 50HZ / 110VAC 60HZ power supply.

Turn on the power switch and lower blade start to turn, then the machine can work.
