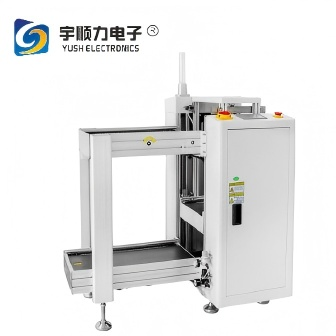

PLC High Efficiency Plate Feeder Equipment For SMT Production Line
PLC High Efficiency Plate Feeder Equipment For SMT Production Line
Specifications
Brand Name :
Yushunli
Model Number :
YSL-250SB
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
USD 3000
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
300 sets/ month
Delivery Time :
3 days to 7days
Packaging Details :
Plywooden case
Overall dimension :
L1130*W845*H1500±30mm
The maximum specification of PCB :
L330*W250
The lifting platform pitch is selected :
The lifting platform pitch is selected
Transmission height :
H=920±30
Power suppl :
220V50HZ
Description

High Quality/High efficiency Plate feeder For SMT production Line YSL-250SB 220V50HZ

Features

◎ This equipment is used for PCB board feeding operation in SMTand Al production lines.

◎ PLC control system,true color touch screen man-machine control.

◎ Auxiliary positioning braking system,accurate postioning,fast lifting speed,high production efficiency.

◎ Multple electrical distribution circuit protection,safe and reliable.

◎ Sound and light prompt alarm system,easy operation and maintenance.

◎ Compatible with SMEMA interface

◎ Standard monorail loading machine sizes are 250,330,390,460,which can be selected according to needs,and othersizes can also be customized according to customer needs.

◎ Extended product:double-track plate feeder.

Technical parameter

Overall dimension:L1130*W845*H1500±30mm

Special aluminum profile guide rail and special Qianniao plastic chain

90 W production brake motor is driven by ball screw to lift Magazine step by step

The transmission motor is a 15W constant speedplatform motor

Pneumatic clamp structure

The specification of Magazine is L355*W320*565mm

The maximum specification of PCB is L330*W250

Direction:right to left/left to right

The lifting platform pitch is selected as 10,20,30,40

Transmission height H=920±30

Huichuan PLC programmable controller control

With automatic board loading function
