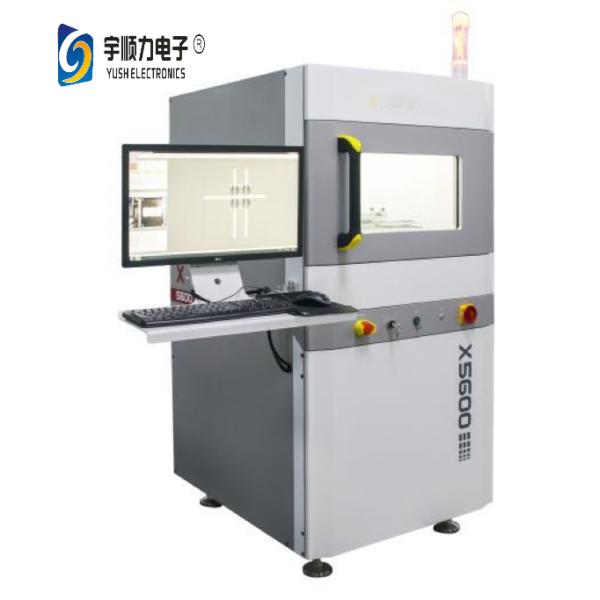

High Qauality X-Ray Solution YSL-X5600 X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System
High Qauality X-Ray Solution YSL-X5600 X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System
Specifications
Brand Name :
YUSH
Model Number :
YSL-X5600
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
USD 12800~17800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 sets/ month
Delivery Time :
7days
Packaging Details :
Plywooden case
Tube type :
Sealed micro-focus Hamamastu Xray tube
Voltage Range :
40-90kV
Current Range :
10-200 μA
Focal spot size :
5-15μm
Cooling methodConvection cooling :
Convection cooling
Description

High Qauality X-Ray Solution YSL-X5600 X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System

Applications

1: Semiconductor 2: Automotive electronics 3: PCB’A 4: LED
5: BGA/QFN inspection 6: Aluminum die casting

7: Mould

8: Electrical and mechanical

components

9: Biological

agriculture seed

10: Aviation

component

 11: Wheel hub 12: Wire/USB/Plug

Functions and Features

Function Advantages

X-ray detector can move along Z direction,

Speed of table moving along X-Y direction can be adjusted.

Larger effective detection range, improving the magnification and the detection

efficiency of the product.
Long life X-ray tube, maintenance free for life Adopt the world's top Japanese Hamamatsu X-ray source
Fault less than 2.5 μm can be detected. High detection repeat accuracy. Easy to distinguish the gold wire bending and break of the semiconductor package.

Powerful CNC Measuring Function, can

inspect automatically, testing program can be edited.

 Suitable for large-scale inspection and improve detection efficiency.
Small body, easy to place, less space Can be used in laboratories, materials rooms, etc.
Large navigation view, table will move to where you click the mouse. Very easy to operate, quickly find item defects and improve detection efficiency

Application Advantage:

  • Miniaturized equipment, easy to install and operate
  • Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging, Sensors and other fields products inspection.
  • High resolution design to get the best image in a very short time.
  • Infrared automatic navigation and positioning function can select the shooting location quickly.
  • CNC inspection mode which can quickly and automatically inspect multi-point array.
  • Inclined multi-angle inspection makes it easier to inspect sample defects.
  • Simple softwareoperation, low operating costs
  • Long lifespan
