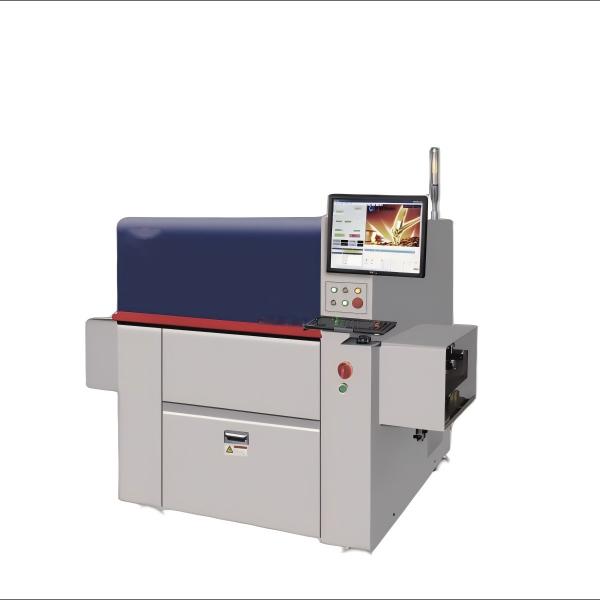

High Quality and High Efficiency Tickle Switch Insert Machine
High Quality and High Efficiency Tickle Switch Insert Machine
Specifications
Brand Name :
YUSH
Model Number :
YS-W50
Place of Origin :
GuangDong
MOQ :
1
Price :
USD30000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100
Delivery Time :
20work days
weight :
750kg
model :
YS-W50
Pressure requirements :
0.6Mpa
Insertion Direction :
0°- 360°,increment
Description

Product presentation:

1.Driven by XY servo motor, it realizes high automation and can complete the preparation for normal production within 10 minutes
2.0° - 360° freely programmable insertion angle (the increment is 1°, and the rotation angle has no effect on the insertion rate)
3.Insertion rate up to 3.3 unit per second (1 unit per stroke)
4.The lower cutter is clamped synchronously during insertion to avoid float
5.Support standard package feeding and bulk vibrator bowl feeding schemes
6.Flexible and diverse PCB transmission directions (support left to right, right to left, in / out on the same side as SSIO)
7.The lower support tool with pin inspection function is configured to effectively monitor the insertion quality
8.Real time strength monitoring to ensure 100% high-quality insertion (maximum strength and strength and distance monitoring)
9.High precision vision system for PCB deviation correction
10.Provide easy programming and intuitive software operation interface
11.PCB thickness tolerance compensation algorithm
12.Provide modular options for industrial 4.0 connectable process hosts to achieve full traceability

Parameter:

Item YS-W50
Theoretical Speed Approx 12,000 CPH
Head 1-2 tools
Component Lead Span W4.5mm,L6.5mm
Board Size Min 50mm*50mm,Max 350mm*300mm
Track Width 50~300mm (Adjustable
Clinch Angle 45°Internal Bending
Weight Main Body,Approx 750kg
Power Requirement AC220V,50/60Hz, Single Phase 1.0Kw
