Universal X-Ray Inspection System,high Quality 3D Measurement and Non-destructive Analysis.
Universal X-Ray Inspection System,high Quality 3D Measurement and Non-destructive Analysis.
Specifications
Brand Name :
YUSH
Model Number :
YS-8500
Place of Origin :
GuangDong
MOQ :
1
Price :
USD50000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100
Delivery Time :
20work days
weight :
2950kg
Model :
YS-8500
Field of View :
130mmx130mm
Tube Voltage Range :
25-160KV
Resolution :
5.8Lp/mm
Description

Product Introduction

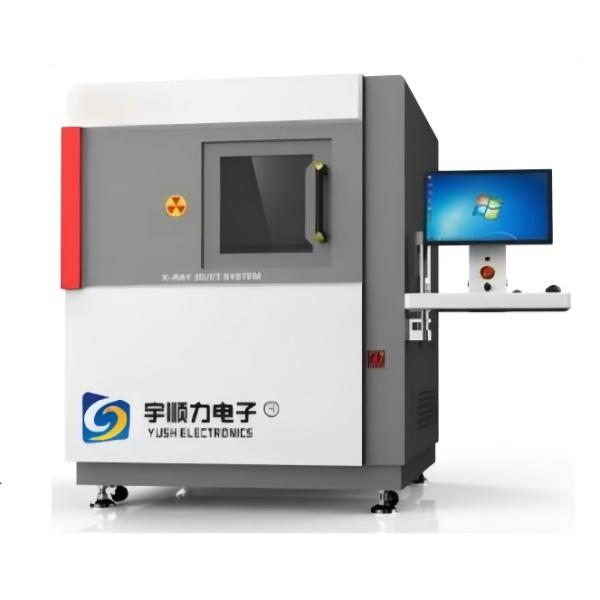

Universal X-Ray Inspection System ,YS-8500 adopts COMET's open X-ray tube design,and its defect inspection capability can reach 0.5um.It can realize 2D/3D/CT and other inspection methods,and is suitable for quality inspection,3D measurement and non-destructive analysis.

Application Advantages

  • With planar CT function(PCT),it can be applied to 3D/CT inspection of printed circuit boards,SMT,IGBT,wafers,etc.
  • With cone beam CT function,it can be applied to the inspection of sensors,relays,micro motors,materials, and aluminum castings
  • Convenient 360°fixed-point observation mode
  • 2D void inspection software module(optional)
  • 3D measurement and analysis software module(optional)

Application Fields

  • Soldering quality inspection of solder joints on PCB,BGA components,integrated circuits(IC)and their bond wires inspecton,semiconductor package inspection and internal connection,electronic power(IGBT)module inspection,Wafer defect inspection(WLCSP)
  • Inspection of sensors,relays,fuses,coils,micro drive systems and air bag control systems,micro motors (MEMS,MOEMS),cables and plugs,plastic parts, various materials such as plastics,ceramics,biological materials,optical components,small titanium and aluminum castings

360°Rotating Observation Mode

Product Parameters

Model No. YS-8500
×-Ray Tube Type OpenMicrofocusTransmittedRaySource
Tube Voltage Range 25-160KV
Tube Current Range 0.01mA~1.0mA
Maximum Tube Power 64W
MaximumTarget Power 10W
Micro Focus Size <1μm
Flat Panel Type AmorphousSilicon FlatPanelDetector (Optional)
Pixel Matrx 1536x1536
Field of View 130mmx130mm
Resolution 5.8Lp/mm
Image Frame Rate(1×1) 20fps
AD Conversion Digits 16bits
Maximum Sample Size 750mmx650mm
Maximum Inspection Area 550mmx550mm
Image Geometric Magnification 2000X
Input Powe 220V 10A 50-60Hz
Operation System PrecisionT7920 ImageWorkstation
Dimensions L1600mm×W1700mm×H2000mm
Net Weight About 2950 KG
