High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line
High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line
High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line
High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line
Specifications
Brand Name :
YUSH
Model Number :
YS-450Y / YS-450YT
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1set
Price :
USD18000
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal
Supply Ability :
100set
Delivery Time :
3-5dyas
Packaging Details :
wooden case
Applicable PCB board size :
L*W : 50×50～450×400 mm
Applicable PCB board thickness :
Substrate thickness：0.8～3 mm / Pin length：Within 3mm
Component height :
Less than 100mm above the substrate / Less than 50mm below the substrate
Substrate shape and conditions :
1. Substrate placement edge: more than 3mm from the substrate process edge. \ n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm
Total power :
AC 220V 3.5KW
Flux capacityower :
2 L
Gas source :
0.5-0.7Mpa
Weight :
150KG （Containing solder12KG）
Description
High Efficiency /High Quality Integrated Selective Wave Soldering For SMT Production Line
Description

Specification items

YS-450Y / YS-450YT

Applicable PCB board siz

L*W : 50×50～450×400 mm

Applicable PCB board thickness

Substrate thickness:0.8～3 mm / Pin length:Within 3mm

Component height

Less than 100mm above the substrate / Less than 50mm below thecess edge

2.The weight including components is less than 5 kilograms substrate

Substrate shape and conditions

1.Substrate placement edge: more than 3mm from the substrate pro

3.The bending of the substrate: less than 0.5mm

Tin furnace

Tin furnace material/capacity:All-titanium alloy material/15KG

Tin bath capacity:Power:4*500W2KW

Preheating power

Infrared preheating 1KW

Total power

AC 220V 3.5KW

N2 Requirements

Nitrogen purity:99.999%

Pressure/Consumption:0.5MPa / 20ℓ/min～30ℓ/min /

1.2 cubic meters

Flux nozzle

0.5mm Precision fluid nozzles imported from Japan

Flux capacity

2 L

Gas source

0.5-0.7Mpa

Nozzle inner diameter

φ 3mm~φ 20mm Customizable size

Peak height

Automatic alignment/height measurement

System control

PC+PLC(windows+汇川)

Programming software

Support programming for picture line drawing (convenient and fast)

Video surveillance

Real-time video monitoring makes it convenient to watch the welding effect

Power supply/power

Single-phase 220V±10% Starting power:3.5KW

Weight

150KG (Containing solder12KG)

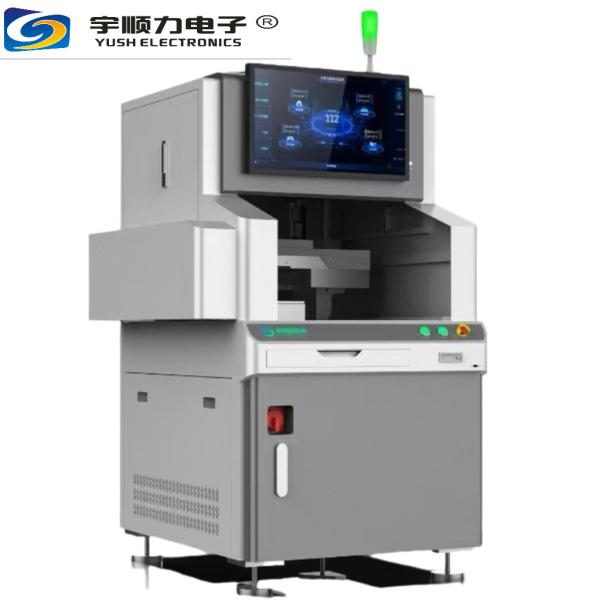

External dimensionsSW-450Y

L*W*H 940×1280×1350 mm (With a display)

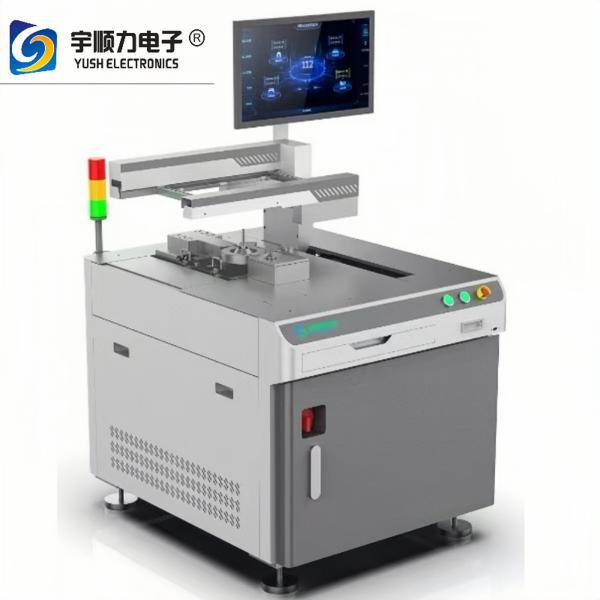

External dimensionsSW-450YT

L*W*H 1110×1280×1500 mm (It does not include three-color lights)

Selective spraying

High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line

Fogging effect (shot in strong light) Linear spray (optional)

High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line

Original 0.5mm "Lumina" imported from Japan

Precision fluid nozzle

Selective spraying

High Efficiency Integrated Selective Wave Soldering Machine For SMT Production Line

Advantage:

  • Sealed system - no evaporation

  • It can maintain the original packaging performance of the flux

  • The dosage is controllable and repeatable

  • The dosage is very low.Strong process reliability

  • No solvent needs to be added The flux was fully utilized and there was no waste
