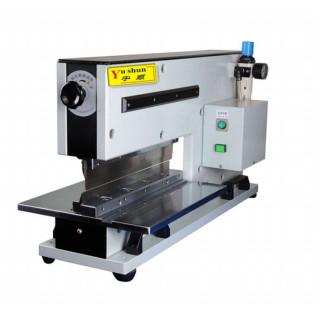

Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Specifications
Brand Name :
YUSH
Model Number :
YSVC-2/YSVC-200/YSVC-400
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
JiangSu
MOQ :
1set
Price :
USD3000
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
300 sets/ month
Delivery Time :
3 days
Packaging Details :
Plywooden case
Dimension :
450*200*460mm
Blades length :
200mm
Air requirement :
0.7Mpa
Cutting thickness :
0.6~5.0mm
Voltage :
220V,50HZ, 110V,50HZ(option)
Max component height :
70mm
Description

High Quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Feature
●Separates boards up to 3.5mm thick;
●Shears boards safely with parts as close as 0.5mm to the score line,including
ceramic capacitors;
●Operator foolproof! Panels cannot be inserted into the knives except on the
score line;
●Pneumatically driven;
●Handles high components up to70mm;
●Bow waves that can occur with round knives are avoided;
●Easy adjusting of distance between knives.

Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

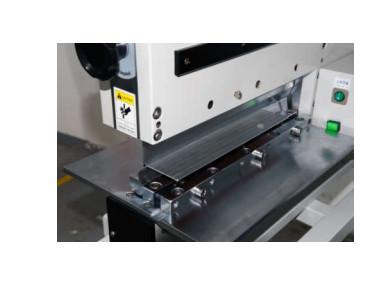

● Adjust blades to PCB score line using rotary knob.
● Boards are separated without bending or breaking.
● Safe for use with flexible and thin (to 0.5mm) PCBs.
● Smooth, quiet pneumatic-powered unit with foot -pedal activation.
● Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.
● Can be used with aluminum and other substrates, including substrates with metal inner layers.

Pneumatic PCB depaneling machine Specifications
Model
YSVC-200
YSVC-2
YSVC-400
Dimension
450*200*460mm
620*230*400mm
960×425×350mm
Blades length
200mm
330mm
400mm
Air requirement
0.7Mpa
0.7Mpa
0.7Mpa
Cutting thickness
0.6~5.0mm
0.6~5.0mm
0.6~5.0mm
Minimum component distance from v-groove
1mm
Voltage
220V,50HZ, 110V,50HZ(option)
Max component height
70mm
Machine weight
130kg
185kg
210kg
Machine Warranty period
One year
Machine drawing
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

Machine video reference URL
https://www.youtube.com/watch?v=07Gl10z1xIg
https://www.youtube.com/watch?v=AJMoFzCl-8c
https://www.youtube.com/watch?v=JWDAggG3wUI YSVC-200

PACKAGE PHOTO

Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Machine CE certificate
Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
