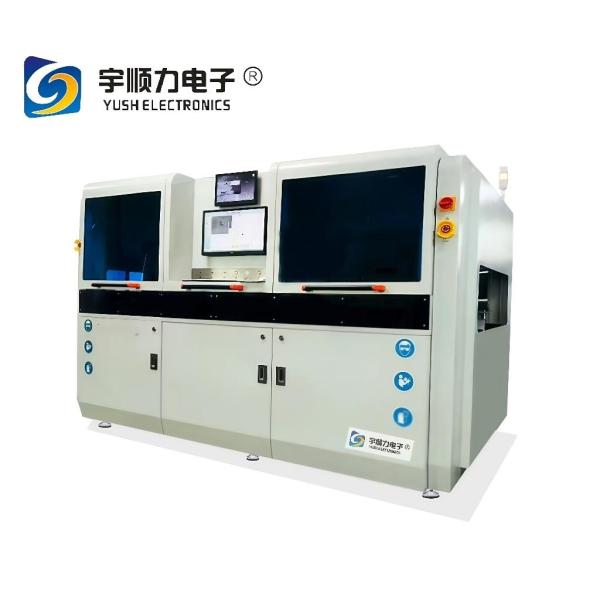

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW
Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW
Specifications
Brand Name :
YUSH
Model Number :
YS-400
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
jiangsu
MOQ :
1set
Price :
USD15000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Sets/Month
Delivery Time :
5-7work days
Packaging Details :
plywooden case
Overall Dimensions :
2850L*1650W*1850H (mm)
Machine frame :
Steel structure+baking paint
Operating height :
900±30mm
machine appearance :
closed - type
Weight :
Approx.1500KG
Power supply :
380V Three-phase five-wire system, 380V
Total power :
30KW
Operating mode :
PCB board guide transportation, XYZ axis movement of solder pot, XYZ axis movement of flux spray valve.
Description
High Quality Single-Head Online Three-Stage Selective Wave Soldering MSI-400TO 30KW
Overview of Scheme Advantages
  • An integrated all-in-one functional machine with three PCB boards or fixtures working simultaneously in spraying, preheating, and welding sections, enhancing overall machine productivity.
  • Individual spray flux table & soldering table.
  • High soldering quality.
  • SMEMA interfaces on both sides of the machine enable online transportation, supporting flexible line configuration for customers.
  • Equipped with wave height detection (calibration)
  • Nitrogen Flow Control: Adjusting nitrogen flow rate with a nitrogen flowmeter
  • Equipped with a barcode scanner for 2D barcode reading.
  • Fiducial mark recognition:Configuration of Make Points for Error-proofing and Correction
  • Equipped with solder level detection and automatic solder feeding system
  • Online Programming Software: Real-time PCB Image Scanning via Positioning Camera
  • Offline programming capability: Allows parameter programming offline after image import
  • Side camera and monitor for real-time soldering display:Critical parameters are totally under monitoring by PC software, like temperature, speed, pressure etc.

  • Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,N2 temperature etc, best trace-ability and easy to get repeat soldering quality.Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW

Standard machine include

Serial Item content Quantity
1 Controlling system PC & monitor

1set
Live on monitor camera
dual motion control
2 Motion table(fluxing) Fully cast iron xy motion table

1set
2 axis equipped with ball screw & linear guild rail
2 axis equipped with servo motor & driver
3 Fluxing system Imported jet fluxing valve(dual nozzle) 1set
flux tank
flux pneumatic system
4 preheating system slight heat on the wind and preheating with infrared spotlights 1set
5 Motion table( soldering ) Fully cast iron xyz motion table 1set
3 axis equipped with ball screw & linear guild rail
3 axis equipped with servo motor & driver
6 Soldering pot 13KG electromagnetic pump tin furnace 1set
solder temperature over heat alarm system
solder temperature controlling system
2 inline heating system
(inner diameter 8mm, 3mm, 4mm, 5mm,6mm )Standard equipped solder nozzle
7 Conveyor system stepper control for front & rear conveyor 1set
pin chain for conveyor (soldering section)
PCB Plate blocking device spray section, preheating section
stepper control for front & rear conveyor
roller for conveyor (soldering section)
PCB stopper system
PCB side clamping system
8 Machine chassis machine frame/cover & painting 1set

Fluxing system

  • Standard equipped with imported jet valve to get precious fluxing result with small flux dot, please note flux solid content should be less than 10%.

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW

  • by PP plastic pressure tank, make sure pressure stable without influenced of amount of flux.

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW
