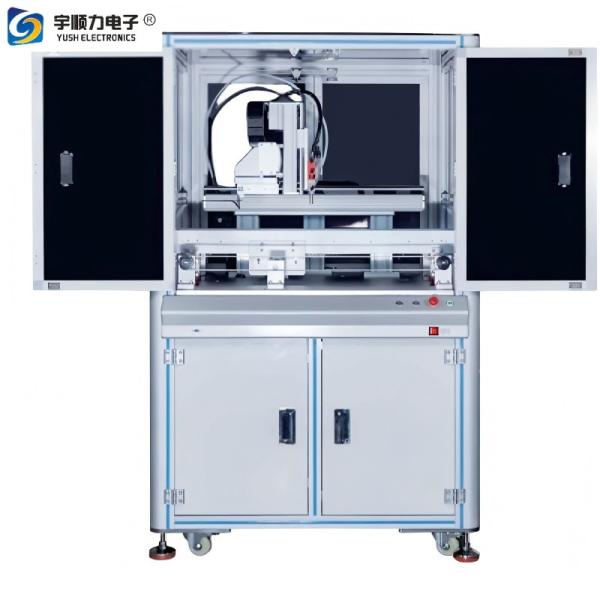

Full Automatic Three Anti Paint Automatic Coating For SMT Production Line
Full Automatic Three Anti Paint Automatic Coating For SMT Production Line
Specifications
Brand Name :
YUSH
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
USD 7000~12000
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
100 sets/ month
Delivery Time :
3 days to 7days
Packaging Details :
Plywooden case
mode :
Automatic coating machine
Trip(mm) :
(travel customizable)
programmatically :
Import teaching programming or graphics
Can movethegraphtrack :
Point,line,arc,circle,curve,multiple lines,spiral,ellipse
Dispensing head :
Precision dispensing valve
Glue barrel :
Capacityoptional
Minimum discharge :
0.01ml
The gluefrequency :
5 times/SEC.
Description

Full Automatic/High Quality Three Anti-Paint Automatic Coating For SMT Production Line

Specification Sheets

mode

Automatic coating machine

Trip(mm)

(travel customizable)

programmatically

Import teaching programming or graphics

Can movethegraphtrack

Point,line,arc,circle,curve,multiple lines,spiral,ellipse

Dispensing head

Precision dispensing valve

Glue barrel

Capacityoptional

Minimum discharge

0.01ml

The gluefrequency

5 times/SEC.

load

Y/Xaxle load

10kg

Z axle load

5kg

Axialdynamicspeed X/Y/Z(mm)

0-600mm/sec

Resolvingpower

0.01mm/Axis

Repeatability

positioning accuracy(mm)

Screw drive

0.01-0.02

Synchronousbeltdrive

0.02-0.04

Programrecord mode

At least 100,5000 pointseach
Displaymode

LCD Teaching box

Motorsystem

Japan precision micro stepping motor

Drivemode

Guide

Taiwan upper silver linear guide rail

Wirerod

Taiwan silver bar

Belt

Italy Italy Lartey synchronous belt

XYZ axis synchronous belt for standard configuration,Zaxis screw rod is optional,XYZ axis screw rod for customization

Motion filling function

3 axis(3 Three dimensional space,any route can)

Input power

Full voltageAC110V-220V

External control interface

RS232

Motorcontrolshaft number

3 axis

Axis range(mm)

Xaxis

300

Yaxis

300

Zaxis

100

Outline size(mm)

530/589/632

Bodyweight(KG)

45KG

Full Automatic Three Anti Paint Automatic Coating For SMT Production Line

Distinguishing Feature​

  • It is suitable for three defense lacquers,silica gel,ink, lubricating oil,alcohol and paint.
  • It is equipped with stainless steel pressure bucket which has high strength,good sealing and non adhesive.
  • It uses accurate atomizing spray parts without splashing, the edges are neat and uniform,and
  • there are no problems of clogging,dripping,or too dry. When used,it willnot overdose the spray,
  • do not produce oil mist,keep the product area clean and reduce the use of the fluid.
