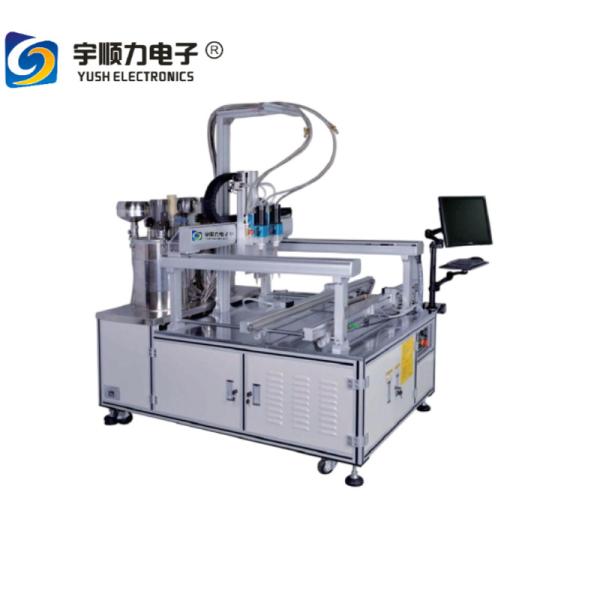

Online Automatic Glue Filling Machine YSL-1200MJ For SMT Production Line
Online Automatic Glue Filling Machine YSL-1200MJ For SMT Production Line
Specifications
Brand Name :
YUSH
Model Number :
YSL-1200MJ
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
USD 7000~12000
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
100 sets/ month
Delivery Time :
3 days to 7days
Packaging Details :
Plywooden case
Model :
YSL-1200MJ
Working range :
600×300(X)(Y)x100(Z)mm(customizable)
Maximum speed :
300mm/sec
Proportioning accuracy :
±2%
Spitting accuracy :
±2%
Mixing ratio :
100:100~100:20or100:20~100:10
Gum release rate :
1g/sec~15g/sec 5g/sec-30g/sec
Workable viscosity :
<20000CPS
Power Supply :
AC220V 50HZ 2.5KW
Description

High Quality Online automatic glue filling machine YSL-1200MJ for SMT production line

Specification Sheets

Model

TZ-1200MJ

Working range

600×300(X)(Y)x100(Z)mm(customizable)

Maximum speed

300mm/sec

Proportioning accuracy

±2%

Spitting accuracy

±2%

Mixing ratio

100:100~100:20 or 100:20~100:10

Gum release rate

1g/sec~15g/sec 5g/sec-30g/sec

Workable viscosity

<20000CPS

Metering mode

Stepper motor+gear pump/rotary piston pump,servomotor+piston pump

Drive mode

Step motor+synchronous belt(optional servo motor+ball screw)

Power Supply

AC220V 50HZ 2.5KW

Machine size

2180(L)×1170(W)×1600(H)mm

weight

约130KG

About130KG

work environment

Humidity:20-90%,temperature:0-40DEG℃

XYZaxis stepper motor

High precision micro stepping motor driver

Drum mixing system

One set/two sets(optional)

Guide

Silver on TBI/,Taiwan

Static mixing valve

Dynamic mixing valve can be selected according to glue

High precision metering pump

The gear pump or rotary piston pump/piston pump can be selected according to the glue

Measuring motor

Stepping motor

Material storage barrel

15L/30L/70L,optional vacuum deaeration or heating function

Hose

teflon hose

Automatic glue filling software

Independent research and development

Dynamic agitation detection system

Optional

Glue outlet pressure detection

Optional

Semi-automatic cleaning device

Optional

Online Automatic Glue Filling Machine YSL-1200MJ For SMT Production Line

Descirption

Double liquid automaticfilling machine is also called LED wall washing machine,LED line lampfilling machine, LED aluminum bar glue filling machine.Widely used in the 1meters,1.2 meters,1.5 meters light bar automatic glue operation;by virtue of its excellent performance,glue no bubble,1 machines can replace 5~6 artificial irrigation
machine,at any time at any time,save glue,filling out the product consistency,the advantages of computer control and easy operation.
