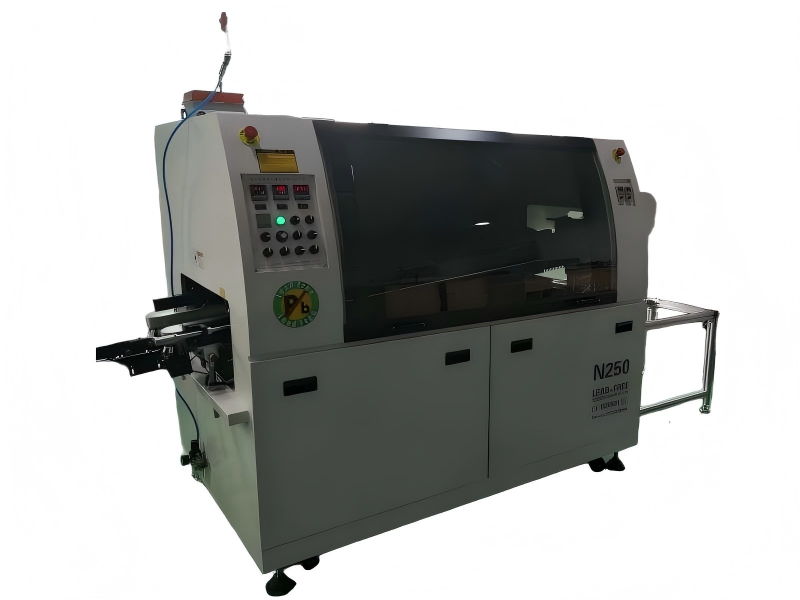

High Efficiency Wave Soldering Machine N250
High Efficiency Wave Soldering Machine N250
Specifications
Brand Name :
YUSH
Model Number :
Yush N250
Certification :
ce
Place of Origin :
Guangdong
MOQ :
1
Price :
USD30000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000
Delivery Time :
20work days
Solder pot capacity :
220KG
Solder pot temperature :
300℃
Solder power :
380V 6KW
Wave crest drive power :
500W 220V
Convey speed :
0-1800mm/min
Description

INTRODUCTION:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC
control, accurate and reliable.
4.PLC is used to control the machine, to ensure the reliability and stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit
board bottom, fast heating and stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures the
7.quality of welding PCB board.
8.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
9.Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
10.Preheating system uses three independent temperature control so that ensure the excellent heat preservation,
temperature uniformity, temperature difference no more than ±2ºC.
11.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
12.automatic claw cleaning function ensure the cleanliness of claws.
13.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.
High Efficiency Wave Soldering Machine N250
Specification:
Body size
1800(L)*1200(W)*1600(H)
Outside dimension
2500(L)*1200(W)*1600(H)
Weight
700KG
Total/running power
11KW/4-6KW
Control method
Press key +PLC (Option: touch screen, PC)
Range of temp. control
Room temperature---300℃
Preheating time
About 10-15mins for setting 150℃
Solder type
Lead-free / Sn-Pb
