3D AOI System with AI Intelligent Recognition High Precision Control Platform and True Color 3D Image for Vision Inspection
3D AOI System with AI Intelligent Recognition High Precision Control Platform and True Color 3D Image for Vision Inspection
Specifications
Brand Name :
YUSH
Model Number :
YS AI-5146WL
Certification :
ce
Place of Origin :
Guangdong
MOQ :
1
Price :
USD20000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000
Delivery Time :
20work days
Board size range :
50x50~510x460mm
Top side/Bottom side clearance :
40/40mm
PCB Thickness :
0.5-5.0mm
Weight :
900kg
Description

Single/Dual Line 3D AOI System with AI Intelligent Recognition High Precision Control Platform and True Color 3D Image
Single/Dual Line 3D AOI
3D AOI System with AI Intelligent Recognition High Precision Control Platform and True Color 3D Image for Vision Inspection
Product Features
  1. AI intelligent recognition and detection algorithm for fast programming and precise detection
  2. High precision control platform
  3. Motion platform with double driver system for high-speed, stable operation with no vibration or noise
  4. High speed industrial camera
  5. Multi projective structure grating system
  6. N-step phase shift algorithm based on Moiré fringes provides micrometer-level detection accuracy; optional multi grating head for handling reflections and shadows

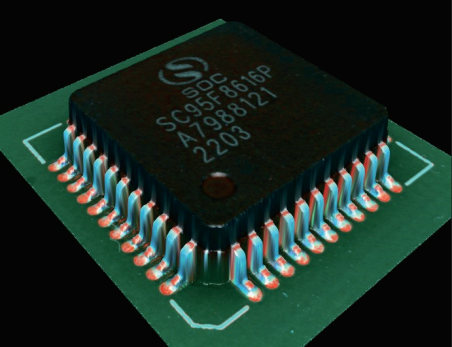

True Color 3D Imaging Technology
Phase measuring profilometry (PMP) based on sinusoidal motion projection by structure grating captures multiple images through discrete phase shift. The system calculates phase distribution using multi-phase triangulation to achieve high-precision outline and volume measurement of objects, enabling display of true-color 3D stereoscopic images.
3D AOI System with AI Intelligent Recognition High Precision Control Platform and True Color 3D Image for Vision Inspection
Technical Parameters
Board size range 50x50~510x460mm
Top side/Bottom side clearance 40/40mm
PCB Thickness 0.5-5.0mm
Conveyor Height 900±20mm
Weight ~900kg
Power supply 220V±10%, 50/60Hz, 1.6KW
