Equipment overview
The dry cleaning method can directly remove impurities on the production line without affecting production or damaging molds.
It increases productivity. After dry ice spraying, it instantly vaporizes, leaving no residue and no secondary waste.
It is widely applicable in the automotive industry, industrial molds, petrochemical industry, printing industry, electronic industry, nuclear industry, and general manufacturing industries.
Dry ice is a non-toxic substance that is convenient to obtain and inexpensive. Dry ice cleaning is non-abrasive, does not damage tolerances, and has no damage to bearings and machinery.

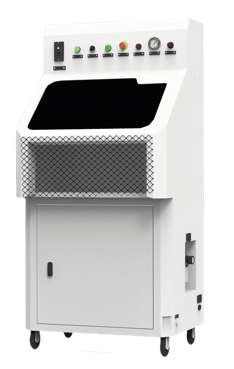

Technical Specifications - Model YSL-210
| Parameter |
Specification |
| Power Supply |
AC220V (50-60HZ) |
| Power |
0.25KW |
| Hopper Capacity |
5-10Kg |
| Applicable Dry Ice Specifications |
140*125*250MM (Approx. 5Kg) |
| Dry Ice Spray Volume |
0.1-0.6KG/min (Parameters adjustable) |
| Equipment Size/Weight |
L750*W700*H1500(mm)/150KG |
| GTL Ice Delivery Pipe |
1/2 Low temperature dry ice |
| Gas Supply Flow Rate/Pressure |
0.5-4.0³/min /0.1~0.8Mpa (Parameters adjustable) |
| Protection Level |
IP55 |
