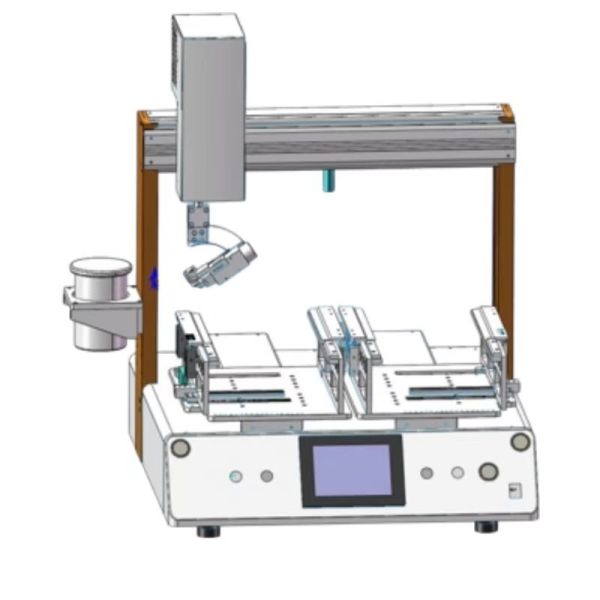

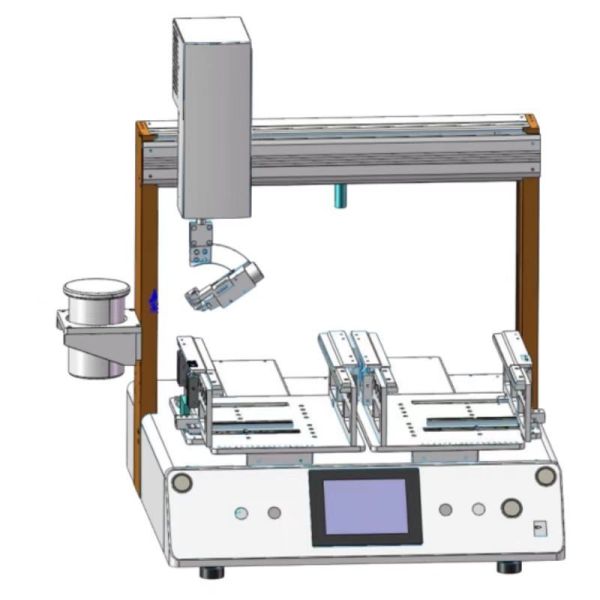

High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution
Specifications
Brand Name :
YUSH
Certification :
CE
Place of Origin :
China,Guangdong
MOQ :
1
Price :
USD 18800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10
Delivery Time :
20work days
Packaging Details :
wooden case
Description
High Speed Fully Automatic PCB Lead Cutting Machine

Advanced component lead trimming solution for precision PCB manufacturing with automated operation and high-speed performance.

Technical Specifications
Parameter Specification
Valid Travel Range X1/200/X2/200/Y1/300/Y2/300/Z1/100/R/360° (customizable)
Speed 100 points/minute
Repeat Accuracy 0.02-0.04mm (synchronous belt rotation)
Workload Capacity X,Y load (10kg) Z load (5kg)
Dimensions 730mm × 900mm × 890mm
Weight 68kg
Frame Construction Aviation aluminum alloy structure with brushed electrophoresis surface treatment
Drive System Stepper motor + linear guide + timing belt
Motor Type Stepper precision motor
Axis Speed (X/Y/Z) 0-600mm/sec
Power Supply Full voltage AC110V-220V
Motor Control Axes 5-axis
Resolution 0.01mm/Axis
Programming Method Teach programming or drag programming
Motion Control System Five-axis motion control card, stable and efficient
Cutting Capacity Copper 1.5mm, Iron 1.0mm, Steel 0.5mm (customizable)
Program Capacity Point files ≤ 99, Points ≤ 999
Motion Tweening 3-axis
I/O Output 8 in 16 out
Storage Expansion Supports flash memory
Application Scope

Suitable for all types of consumer electronics PCBs and electronic component manufacturing.

Key Features & Benefits
  • High Versatility: Compatible with PCB components or wires, with independent height control for single points or overall cutting operations
  • Enhanced Flexibility: Universal fixtures for quick interchange and direct program calling via handle interface
  • Precision Performance: Defect rate ≤0.02% for standard products with tolerance under 0.2mm
  • Compact Design: Space-efficient footprint for easy integration into production lines
  • Dual Platform Operation: One-in-one-out platform configuration minimizes downtime and doubles cutting efficiency
  • Safety Options: Available protective measures including safety light curtains with auto-start protection
  • Touch Screen Interface: Modern control system with optional safety grating protection
Note: Touch screen models offer approximately 67% faster programming compared to handle-type models. Consumable parts include air scissor heads with 1-2 month service life depending on usage.
