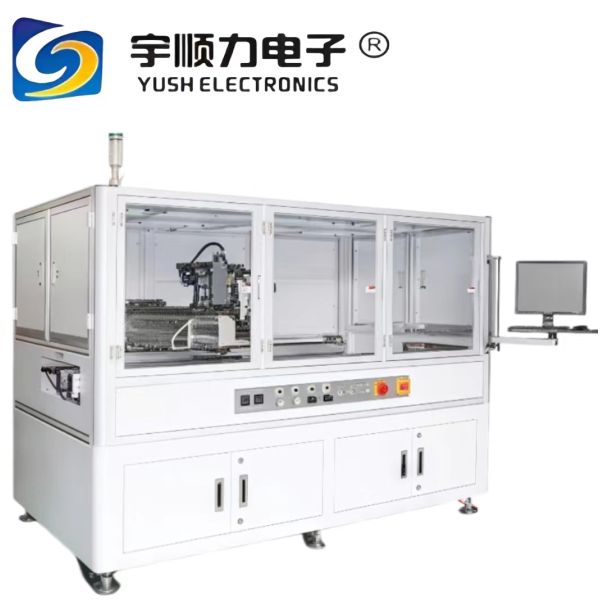

YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-D400
MOQ :
1 set
Price :
$8,800-10,800 / set
Weight :
650 kg
Dispensing Range :
X400*Y400*Z60mm
Vision Methodology :
CCD
Cleaning System :
Automatic
Injection Valve Speed :
200points/s
Power Supply :
1 PH AC 220V 50/60Hz (Option:110V to 230V)
Dimension :
L770*W1200*H1500mm
Core Components :
Motor, Pump
Platform Material :
Marble
Dispensing System :
Needle/Spray Valve
Calibration Standards :
0.1mg Electronic Scale
Model :
YS-D400
Max Dispensing Range :
X1200*Y400*Z60mm
Max Weight :
1150 kg
Max Dimension :
L1690*W1200*H1500mm
Description
YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
Platform System
Integral frame with marble platform supporting moving parts. Moving parts utilize imported accessories to ensure high accuracy and stability of equipment operation.
Dispensing System
  • Needle dispensing and spray valve dispensing options available
  • Spray valve dispensing can be fixed or rotary
  • Optional CCD camera, laser altimeter, and glue sensor
Calibration System
  • 0.1mg Electronic Scale
  • Scale and Ceramic Plate
  • Mechanical Height Detection
  • Vacuum Cleaning System
  • Gluing Cup
Technical Specifications
Model YS-D400 YS-D600 (LENS) YS-D1200 (LENS)
Dispensing Range X400*Y400*Z60mm X600*Y600*Z60mm X1200*Y400*Z60mm
Vision Methodology CCD
Cleaning System Automatic
Injection Valve Speed 200 points/second
Power Supply 1 PH AC 220V 50/60Hz (Option: 110V to 230V)
Weight 650 kg 850 kg 1150 kg
Dimension L770*W1200*H1500mm L1065*W1505*H1500mm L1690*W1200*H1500mm
Manufacturer Profile
YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery. With advanced production and processing equipment, YUSH maintains an experienced development and manufacturing team where half of the personnel have over 10 years of experience in the electronic equipment industry.
Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. YUSH prioritizes product quality, safety, and innovation, producing high-quality, stable performance, and cost-effective products that improve production yields and enhance customer competitiveness. The company offers various PCB separating solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. With good quality and reasonable pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
