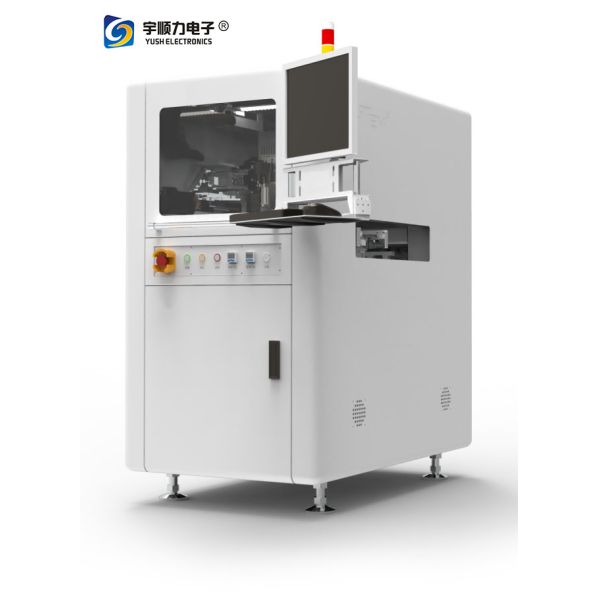

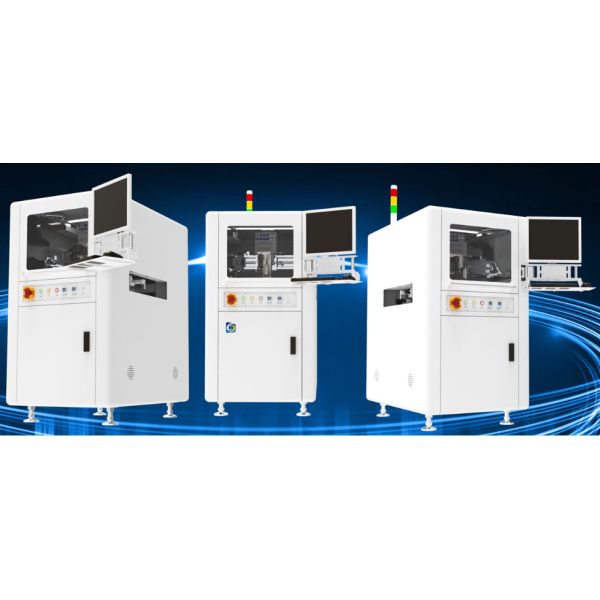

High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000-40,000 / set
Weight :
650 kg
Power :
10 kW
Voltage :
220V/380V
Size :

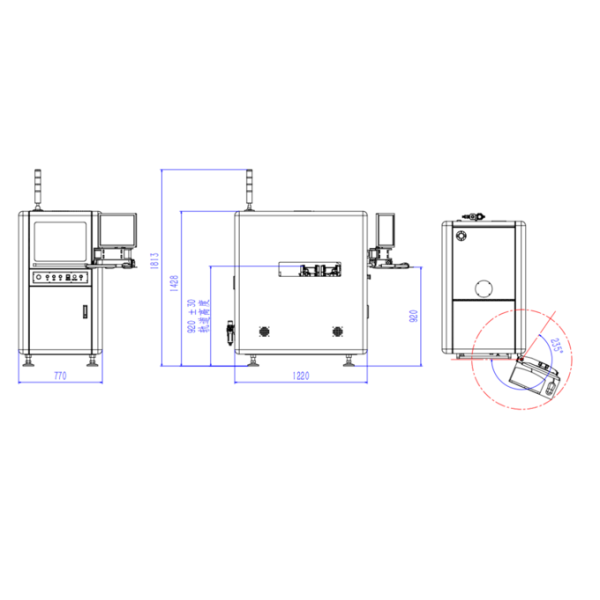

770*1220*1813 mm
Core components :
Motor
Precision weight :
0.1mg/0.01mg
Heating temperature control :
±5 ℃
Rotation angle :
±35°
Four-component tilt angle :
A:0°~90°, B:0°~45°
Double valve distance :
45mm~105mm
Camera resolution :
300000 pixels
Barcode scanner angle :
±15°
Precure light width :
10mm
Precure light length :
80mm
Track adjustable range :
60mm~475mm
Description
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Application Areas
  • SMT & PCB: FPC soft board dispenser, Underfill, Component package
  • Module: VCM, CCM, Vibrating motor, MEMS, BOT-RUBBER
  • Semiconductor Packaging: Chip level bottom fill, Dome Coating, Glob top
  • Automobile Electronic: RTV Component reinforcement, ECU thermal conductive adhesive, Bearing grease point gluing
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Key Features and Advantages
High Precision Movement: X-Y-Z axis with exceptional accuracy
Advanced Vision System: Mask matching, wavelet transform, contour recognition, shape capture
Multiple Dispensing Patterns: Dot, line, circle (arc-shaped), ellipse, screw filling, rectangle filling
Stable Platform: High-speed movement platform with C++ control software
Communication Capability: Connects with customer SFL system for selective dispensing
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Customizable Functions
Tailored solutions to meet specific industry manufacturing requirements:
Assembly Options: One valve one track, one valve double track, double valves one track, double valves double track, double track synchronism, double track asynchronism
Heating Systems: Preheat PCB board front and back, workspace heating, three-stage heating platform
Weight Monitoring: Intelligent glue weight control and monitoring
Tilting Mechanisms: Bidirectional tilting device, four-component tilting device
Additional Features: Barcode Scanner, UV Precure, SFL communication system
Structural Design
LongMen Activity Support Structures: Welded with high temperature annealing treatment to prevent deformation, featuring high precision machined mounting surfaces.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Integral Stretch Form Beam: Formed through integral stretch process with CNC machined mounting surfaces for high rigidity, stability, and consistency. Features worm-type supporting base with dovetail groove design for high applicability and convenience.
Modular Design Advantages
  • Easy to assemble and maintain
  • Convenient expansion functionality
  • Standardized modular fittings

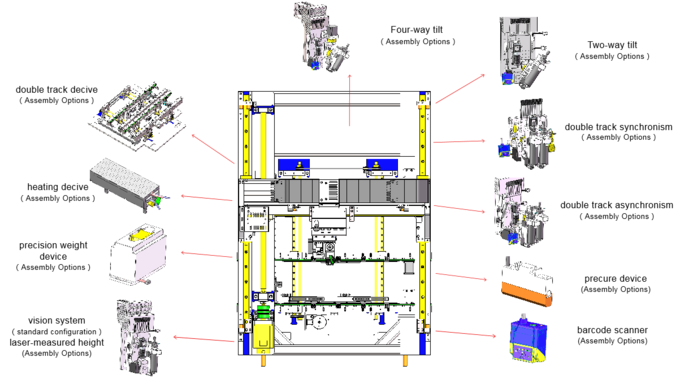

Function Modules

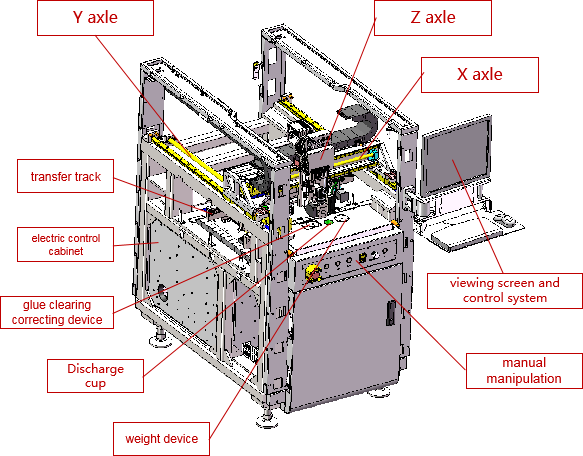

High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

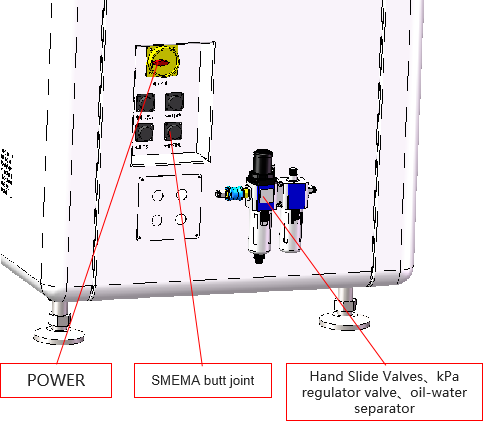

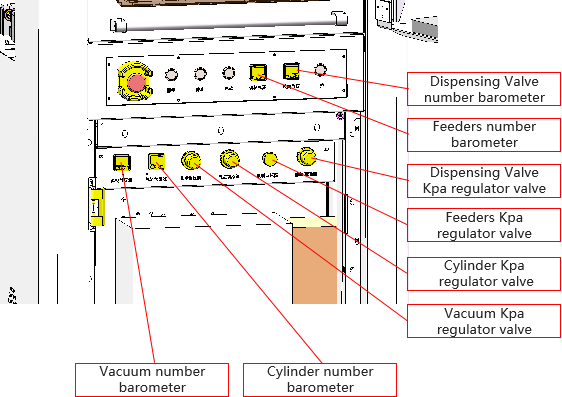

Equipment Interfaces
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Standard Configuration - Single Track Device

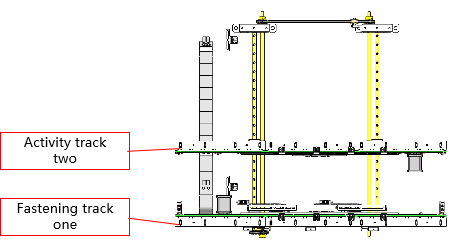

Track one is fastening track (unadjustable); Track two is activity track with electric width adjustment (range: 60mm~475mm).
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

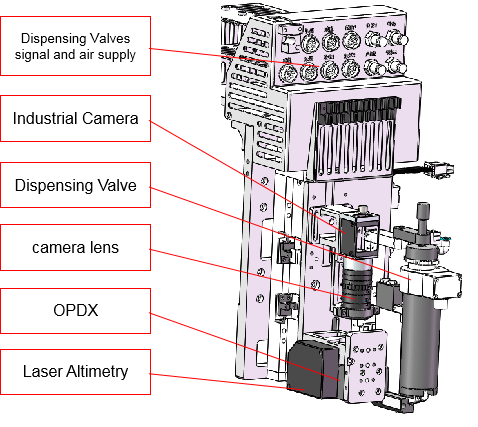

Vision System & Measurement

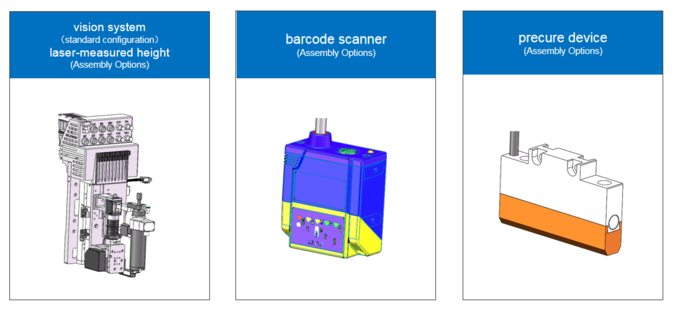

Standard Vision System: 300,000 pixels industrial camera supporting electronic component recognition, automation MARK position fixing, contour capture for programming. Supports catch on fly for improved recognition speed.
OPDX Lighting: Three colors light for reliable identification in different environments.
Assembly Options: Laser Altimetry for precise height measurement.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Conveyor Belt Options

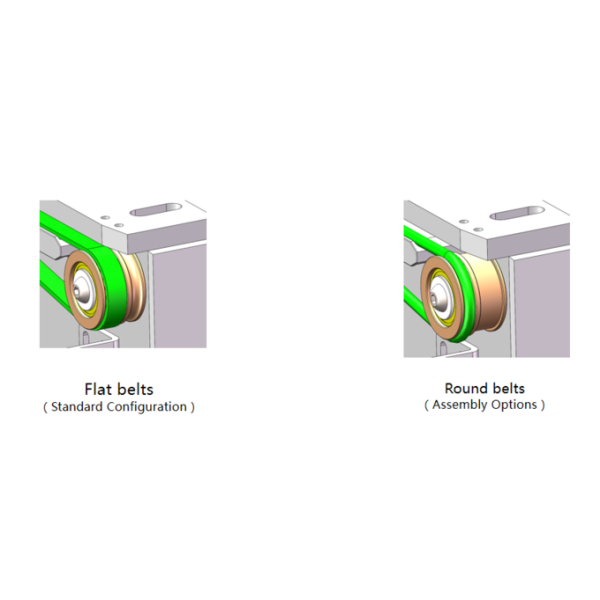

Standard: Flat belts
Assembly Options: Round belts (suitable for lightweight, thin products)
Easy conversion without extra spare parts required.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

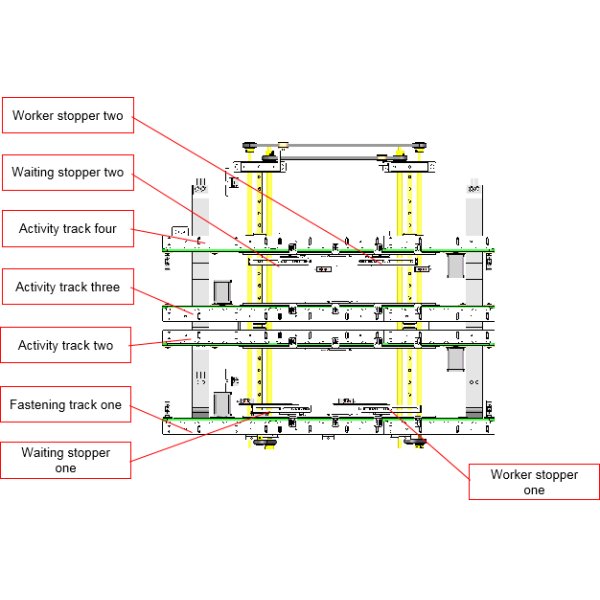

Assembly Options - Double Track Device

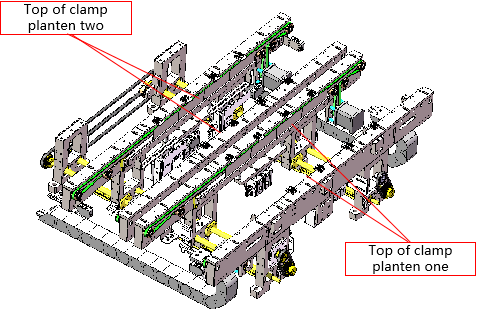

Advanced four-track system with electric width adjustment (range: 60mm~405mm). Features segment clamp planten for multiple product specifications. Stopper and clamp planten move with activity tracks for easy product changeover.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

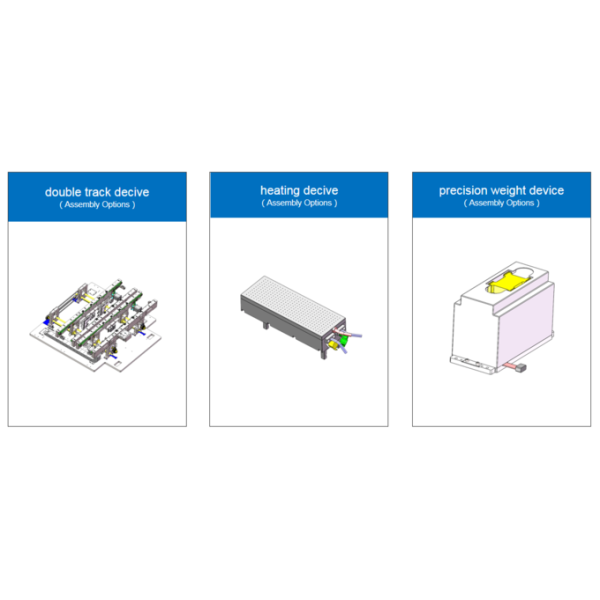

Heating and Weight Monitoring Options

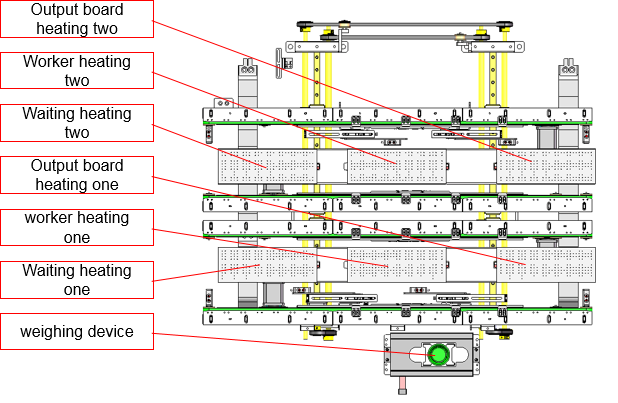

  • Waiting heating, worker heating, and output board heating
  • Three-zone fired furnace option with modular heating zones (50mm, 70mm, 90mm widths)
  • Independent temperature control for each module (±5℃ accuracy)
  • Worm-type supporting base with dovetail groove design for flexible positioning

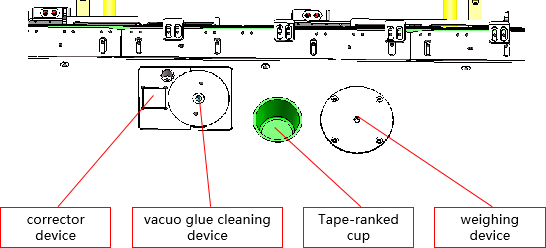

  • Precision weight device (0.1mg or 0.01mg options) with software-controlled glue amount
  • Closed-loop control system eliminates manual adjustment
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

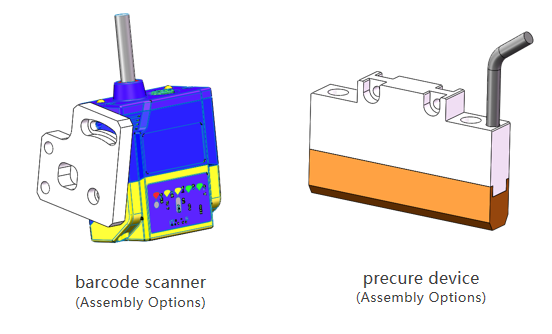

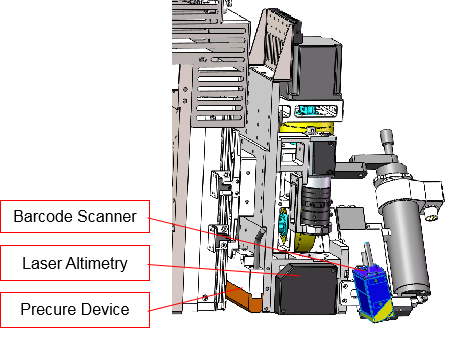

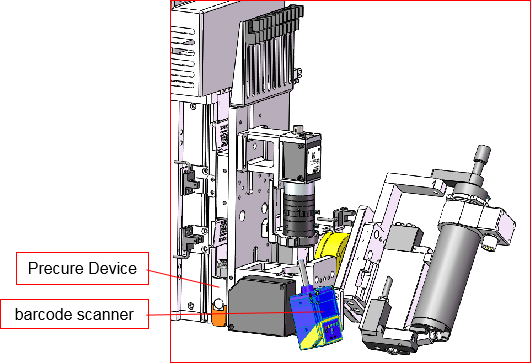

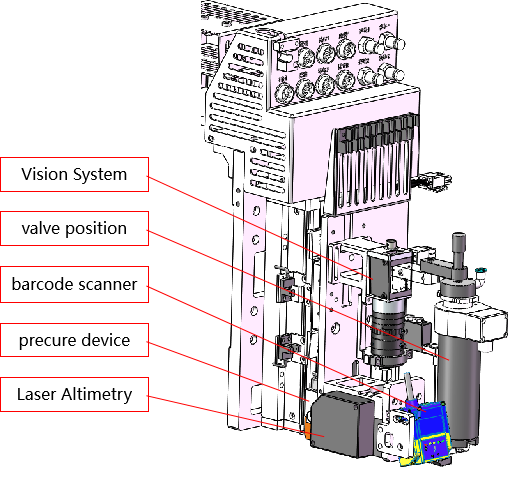

Barcode Scanner and Precure Options
Barcode scanner with ±15° angle adjustment. Precure device with standard 10mm width, 80mm length light source (adjustable length). Compatible with vision system, laser altimetry, and other options.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

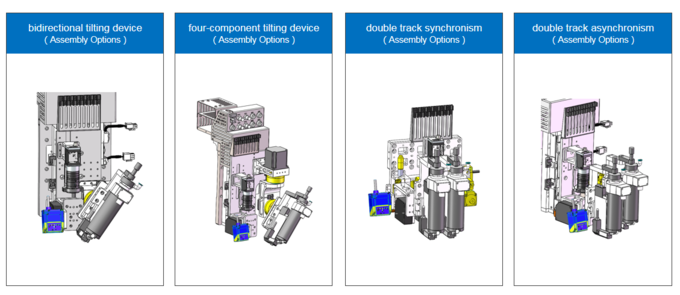

Tilting Mechanism Options
Bidirectional Tilting Device

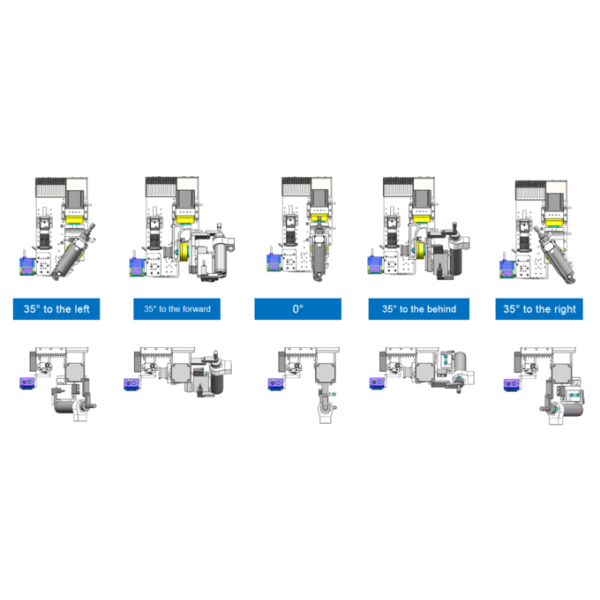

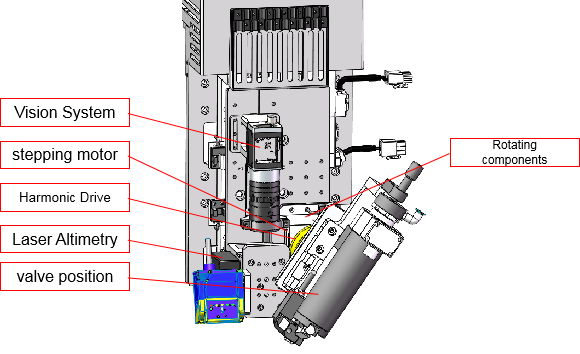

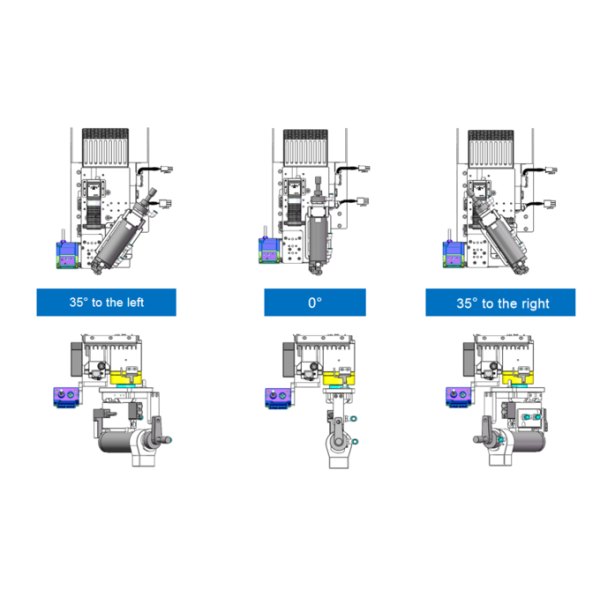

Stepping motor with Harmonic Drive for precise valve rotation. Solves traditional dispensing valve rotation rigidity and accuracy problems. Rotation angle: ±35°.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Four-Component Tilting Device

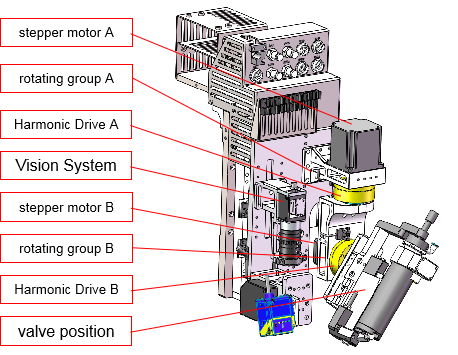

Advanced four-way tilting with stepping motor and Harmonic Drive. A rotation: 0°~90°, B rotation: 0°~45°. Enhanced precision for complex dispensing applications.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line

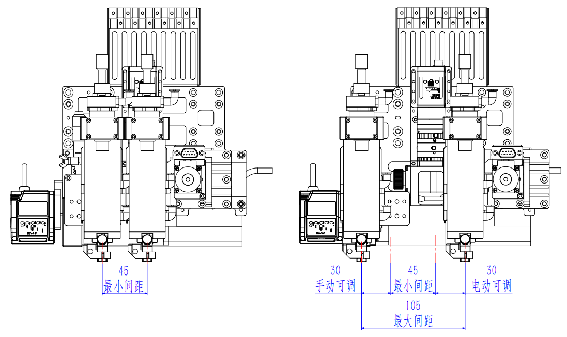

Dual Valve Operations
Double Valve Synchronism

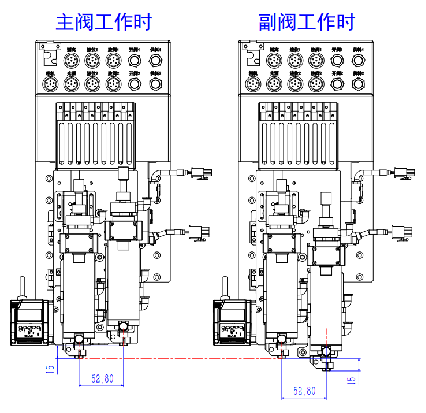

  • Minimum distance between valves: 45mm, maximum: 105mm
  • Z-axis micrometer head: manual height correction ±4mm
  • Y-axis: electric position correction ±6mm
  • X-axis: electric width correction 30mm, manual width correction 30mm
  • Completes two products simultaneously for increased productivity
  • Solves precision issues of traditional double valve operations
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Double Valve Asynchronism
Ideal for products requiring two different glues. Main valve applies glue A, secondary valve applies glue B in sequence.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
Material Handling Systems

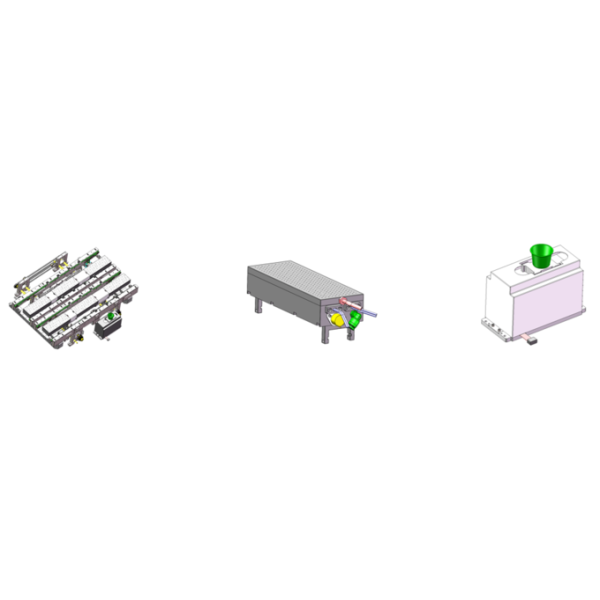

Double lifting, pallet conveyor, and collecting plate equipment for complete production line integration.
High Quality Durable Fully Automatic SMT Jet Dispenser for Production Line
