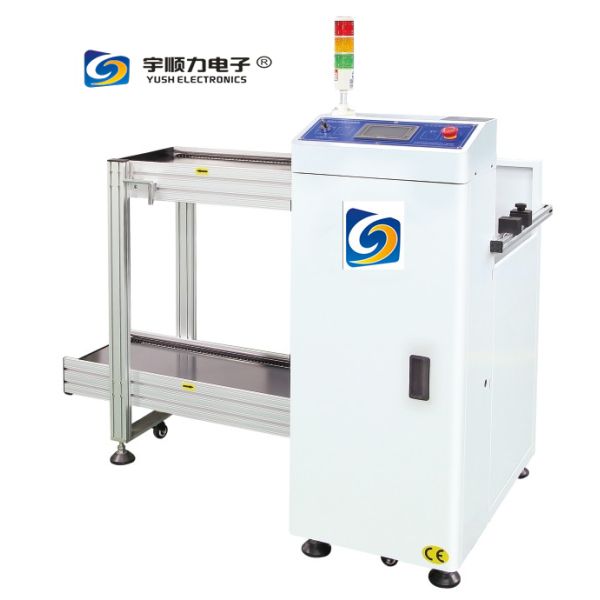

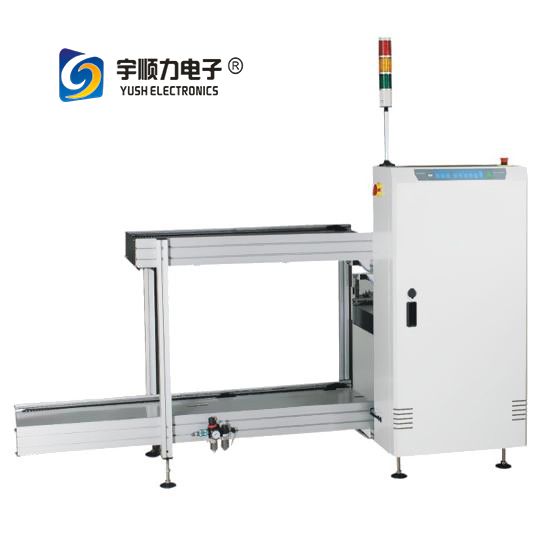

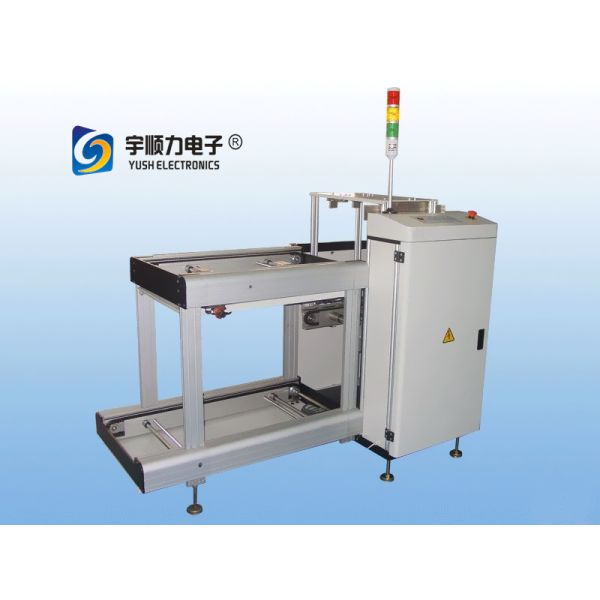

YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Certification :
CE
MOQ :
1 set
Price :
$5,000 / set
Weight :
140 kg
Power :
10 kW
Voltage :
220V
Air pressure :
4~6 kgf/cm
PCB feed time :
6 seconds
Magazine change time :
30 seconds
Power consumption :
300VA max
Air consumption :
10Ltr/min max
Conveyor height :
910±20mm
PCB thickness :
0.4mm min
Indexing pitch :
1-4 (10mm pitch)
Effective PCB size :
(50*50)~(350*250)
Dimension :
1100*780*1200 mm
Magazine size :
355*320*565 mm
Conveyor direction :
L-R / R-L
Description
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
PCB Handling Equipment and PCB Transport Machine designed for SMT workshop production environments.
Key Product Features
  • Strong, firm and stable structural design
  • User-friendly membrane control panel
  • Top & bottom pneumatic clamps to secure magazine rack
  • Guaranteed no PCB breakage during loading and unloading operations
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
Technical Parameters
Description This unit is used for loading of PCBs
Time Feed PCB Approximately 6 seconds
Magazine change over time Approximately 30 seconds
Power Source & Consumption 100-230 VAC (Specify), 1ph, 300VA max
Air pressure & Consumption 4-6 bar, 10Ltr/min max
Conveyor Height 910±20mm (or specify)
Conveyor Direction L-R / R-L (Option)
PCB thickness 0.4mm minimum
Number of magazines Upper conveyor: 1 magazine / Lower conveyor: magazine
Indexing Pitch 1-4 (10mm pitch)
YS-250 High-Efficiency PCB Handling Equipment for SMT Workshop Production
Model Specifications Comparison
Model YS-250 YS-330 YS-390 YS-460
Effective PCB size (L*W)~(L*W) (50*50)~(350*250) (50*50)~(455*330) (50*50)~(530*390) (50*50)~(530*460)
Dimension (L*W*H) 1100*780*1200 1400*860*1200 1500*920*1200 1600*1120*1200
Size of magazine (L*W*H) 355*320*565 460*400*565 535*460*565 535*530*565
Weight Approx 140 kg Approx 180kg Approx 220kg Approx 230kg
