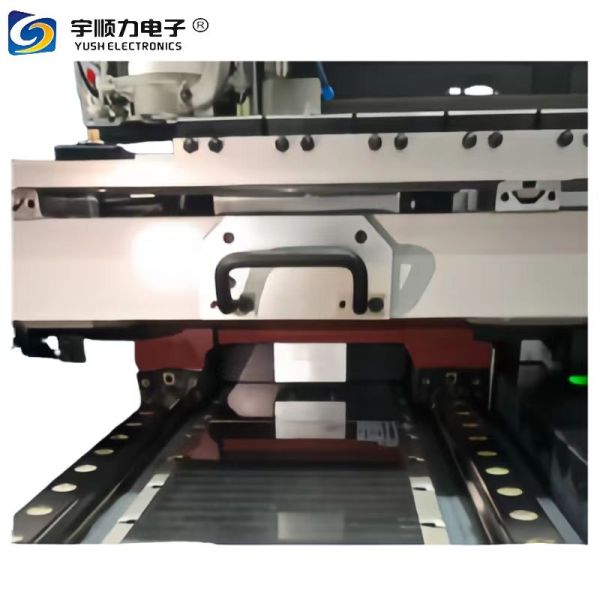

YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$5,300-5,800 / set
Weight :
100 KG
Voltage :
220V
X,Y speed :
80m/min
Z-axis speed :
35m/min
Tool capacity :
6-300
Spindle speed :
20000-200000rpm
Positioning accuracy :
±0.004mm
Repeated accuracy :
±0.0025mm
Drilling accuracy :
±0.018mm
Minimum hole :
4mil(φ0.1mm)
Maximum hole :
256mil(φ6.5mm)
Table size :
6-635mm*772mm
Working range :
6-622mm×755mm
Power consumption :
15KVA
Air pressure :
6.5~7.5bar
Description
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
Product Overview
The YS-F6MH PCB Drilling Machine delivers exceptional precision and rigidity for demanding PCB manufacturing applications. Engineered for superior performance with thick plates and copper plates, this machine features advanced air bearing technology with low air consumption and higher radial stiffness.
YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine
  • Air bearing system with low air consumption
  • Higher radial stiffness for improved stability
  • Optimized for thick plates and thick copper plates
  • Large torque spindle for demanding applications
Equipment Configuration
Serial Number Name Specifications and Models Quantity
1.Host MachineYS-F6MH1 set
2.Control SystemSieb & Meyer Control System1 set
3.Linear Motor (X, Y, Z)High Performance Linear Motor Drive9 sets
4.Principal Axis200KRPM6 sets
5.Grating ScaleHigh Precision Grating Ruler (0.5μm resolution)9 sets
6.Guide ElementImported High Precision Linear Guide Rail9 sets
7.Broken Tool DetectionCapacitive Cutter Detection6 sets
8.Tool Measuring SystemMingwei Tool Detector6 sets
9.Press Foot SwitchingFlat Press Foot Switch6 sets
10.DryerInlet Drier1 set
11.Air Holder70L Gas Storage Tank1 set
12.DisplayLiquid Crystal Display1 set
Technical Specifications
X,Y Maximum Moving Speed80m/min
Z-axis Maximum Velocity35m/min
Tool Magazine Capacity6-300
X, Y, Z Axis Measurement SystemHigh Precision Grating Ruler (0.5μm resolution)
Positioning Clamping SystemSMC Pneumatic Automatic Positioning Clamp
Broken Tool Detection SystemCapacitive Cutter Detection
Spindle Speed20,000-200,000 rpm
Positioning Accuracy±0.004mm
Repeated Positioning Accuracy±0.0025mm
Drilling Accuracy±0.018mm
Depth Control Accuracy (Optional)±0.015mm
Minimum Hole Diameter4mil (φ0.1mm)
Maximum Hole Diameter256mil (φ6.5mm)
Table Size6-635mm × 772mm
Effective Working Range6-622mm × 755mm (24.5" × 29.7")
Power Source3PH-AC380V+N+PE, 50/60Hz
Maximum Power Consumption15KVA
Air Pressure6.5-7.5bar
Noise≤75dBA
Operating Temperature20℃-24℃
Operating Humidity45-65%
Overall Dimensions (L × W × H)4700mm × 2000mm × 1610mm
About YUSH Electronic Technology Co., Ltd
Founded in 2004 and located in Jiangsu, China, YUSH Electronic Technology Co., Ltd specializes in professional PCB separator and PCB depaneling electronic equipment machinery. The company operates advanced production and processing equipment with an experienced development team, half of whom possess over 10 years of experience in the electronic equipment industry.
Since 2004, YUSH has focused on developing and manufacturing PCB separators and depaneling machines, emphasizing product quality, safety, and innovation. Our product line includes high-quality, stable performance, cost-effective solutions that improve production yields and enhance customer competitiveness. We offer various PCB separation types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router machines. With our commitment to quality and competitive pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
