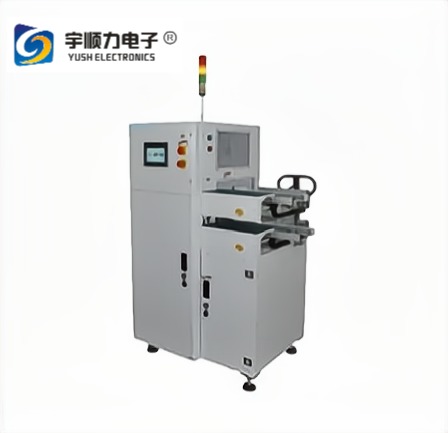

Multifunction Vertical PCB Buffer
Multifunction Vertical PCB Buffer
Multifunction Vertical PCB Buffer
Multifunction Vertical PCB Buffer
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Model Number :
YS-1T100L
Certification :
CE
MOQ :
1 set
Price :
$10,000 / set
Weight :
220 KG
Voltage :
220V
Power Source :
220VAC 50/60HZ
Max PCBs Capacity :
15 pcs
Max PCBs Load :
2kg/PCB
Cycle Time :
15 seconds
Indexing Pitch :
20mm
Air Pressure :
4-6 bar
Air Consumption :
15ltr/min max
PCB Thickness :
0.6mm min
Model Size :
M, L, LL
Dimension :
1000*950*1560mm, 1100*1075*1560mm, 1200*1280*1560mm
Effective PCB Size :
50*50-330*250mm, 50*50-445*330mm, 50*50-530*390mm
Approximate Weight :
180kg, 220kg, 280kg
Conveying Medium :
Durable rollers
Description
Multifunction Vertical PCB Buffer
AOI/SPI PCB Vertical Buffer - Advanced vertical buffer solution for SMT manufacturing lines
Key Features
  • User-friendly 'soft touch' LED membrane control panel
  • Multiple operating modes: OK pass through, Stock, NG reject, Awaiting definite, By Pass
  • Durable rollers as conveying medium (no belt replacement needed)
  • Fast, smooth and accurate indexing position with servo motor drive
  • Integrated "Threshold" system
  • Smooth and parallel width adjustment with lead screw drive
  • Compact machine footprint
  • SMEMA compatible interface
Technical Parameters
Application Buffer between SMT machines
Maximum PCB Capacity 15 pieces or as specified
Maximum PCB Load 2kg per PCB
Cycle Time Approximately 15 seconds
Indexing Pitch 20mm or as specified
Power Source 220VAC 50/60Hz
Air Pressure & Consumption 4-6 bar, 15ltr/min maximum
PCB Thickness 0.6mm minimum
Model Specifications
Model Size Dimensions (L×W×H) mm Effective PCB Size (L×W) mm Approximate Weight (Kg)
SMC-1T100M M 1000×950×1560 50×50-330×250 180
SMC-1T100L L 1100×1075×1560 50×50-445×330 220
SMC-1T100LL LL 1200×1280×1560 50×50-530×390 280
Packaging & Shipping
Multifunction Vertical PCB Buffer
Our Services
Multifunction Vertical PCB Buffer
Company Information
YUSH Electronic Technology Co., Ltd is a manufacturer and trader specialized in the research, development and production of PCB depaneling, Hot bar welding machines and Touch screen film sticking machines. We are located in Dongguan City, Guangdong Province, China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in various markets worldwide. Contact us for product inquiries or custom orders.
Frequently Asked Questions
  • Who are we? - Based in Jiangsu, China since 2014, serving global markets including Eastern Europe, North America, South America, and Europe with 301-500 employees.
  • How do we guarantee quality? - Pre-production samples before mass production and final inspection before shipment.
  • What can you buy from us? - PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
  • Why choose us? - Founded in 2004, located in Jiangsu manufacturing hub, with professional PCB separator/depanelizer equipment and experienced team.
  • What services do we provide? - Multiple delivery terms (FOB, CIF, EXW, DDP, DDU, DAF), various payment methods (T/T, L/C, Credit Card, PayPal), and multilingual support.
