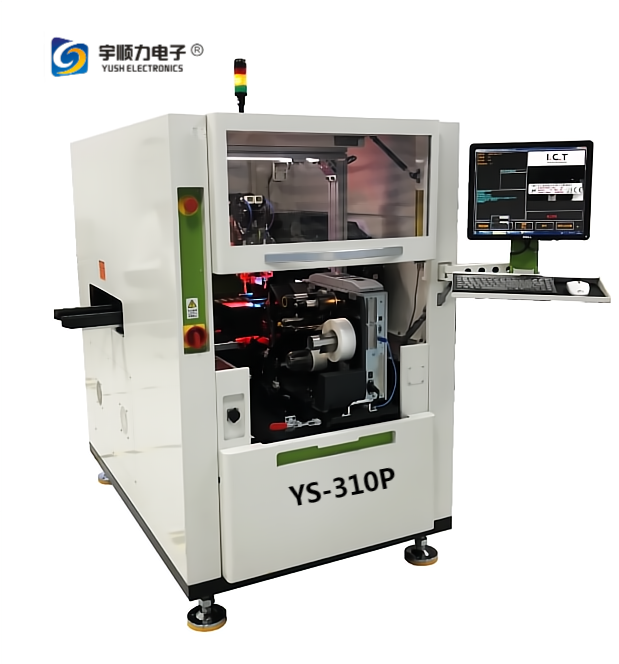

SMT Online Label Mounter in PCB Assembly Line
SMT Online Label Mounter in PCB Assembly Line
SMT Online Label Mounter in PCB Assembly Line
SMT Online Label Mounter in PCB Assembly Line
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
1250 kg
Power :
10 kW
Voltage :
220V/110V
PCB Size :
L50*W80mm ~L450*W350mm; Thickness 0.5mm-6mm
Operation Mode :
X,Y,Z,R movement (Servo Motor)
Dimension :
L1000*W1200*H1500 mm
Position System :
5M CCD
Top Surface Height :
<25mm
Speed :
3500Pcs/H
Label Size :
3*3 ~ 50*50mm
Labeling Precision :
±0.05mm
Labeling Angle :
360°
Feeder Input :
2 | 1
Power Supply :
AC220V/50Hz, 1kva
Internal Printer :
Zebra Brand
Description
SMT Online Label Mounter in PCB Assembly Line
4 Heads Multi-Function SMT Automatic Labeling Machine
This advanced unit is designed for mounting various barcodes labels (1D, 2D, labels with different background paper colors) and film products (translucent, opaque, different colors, different thicknesses) in PCB assembly lines.
SMT Online Label Mounter in PCB Assembly Line SMT Online Label Mounter in PCB Assembly Line SMT Online Label Mounter in PCB Assembly Line
Key Features
  • R&D, design and manufacturing in Taiwan
  • In-line/Off-Line operation modes
  • X, Z, R axis with servo modules for high precision and speed
  • Adsorbing and mounting of printed roll-up labels
  • Print-and-paste functionality with optional printer
  • Barcode reading and validation with optional reader
  • Z-axis adaptation for PCBA at different heights
  • Standard 2 groups of mounting heads for simultaneous label adsorption
  • Independent vacuum detection for each mounting head
  • Online database system for barcode information management
  • 360° servo rotation for precise mounting control
  • 600dpi latest Zebra industrial grade printer
  • 5 million industrial cameras with three-color light source
  • MES system interconnection for production statistics
Technical Specifications
Item YS-310 YS-310P
Internal Printer N/A Zebra Brand
Speed 3500Pcs/H
Label Size 3*3 ~ 50*50mm
Labeling Precision ±0.05mm
Labeling Angle 360°
Feeder Input 2 1
PCB Size L50*W80mm ~L450 * W350mm; Thickness 0.5mm-6mm
Top Surface Height of PCB <25mm
Position System 5M CCD
Operation Mode X,Y,Z,R movement (Servo Motor)
Power AC220V/50Hz, Total power: 1kva
Body Size L1000 *W1200 *H1500 mm
Machine weight 1250Kg
Packaging & Shipping
SMT Online Label Mounter in PCB Assembly Line
Our Services
SMT Online Label Mounter in PCB Assembly Line
Company Information
YUSH Electronic Technology Co., Ltd is a manufacturer and trader specialized in the research, development and production of PCB depaneling, Hot bar welding machines and Touch screen film sticking machines. We are located in Dongguan City, Guangdong Province, China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in various markets worldwide. Contact us to discuss custom orders and business partnerships.
Frequently Asked Questions
Who are we?
We are based in Jiangsu, China, established in 2014, serving markets including Eastern Europe (20.00%), North America (20.00%), South America (15.00%), Southern Europe (10.00%), Northern Europe (10.00%), Western Europe (10.00%), South Asia (10.00%), and Mid East (5.00%). Our office employs 301-500 people.
How can we guarantee quality?
Always provide pre-production samples before mass production; Always conduct final inspection before shipment.
What can you buy from us?
PCB depaneling, PCB separator, PCB cutting machine, PCB depaneler, V-cut machine.
Why should you buy from us instead of other suppliers?
YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in the world manufacturing city Jiangsu. We specialize in professional PCB separator/PCB depanelizer electronic equipment machinery with advanced production and processing equipment and experienced team.
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF; Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow; Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi.
