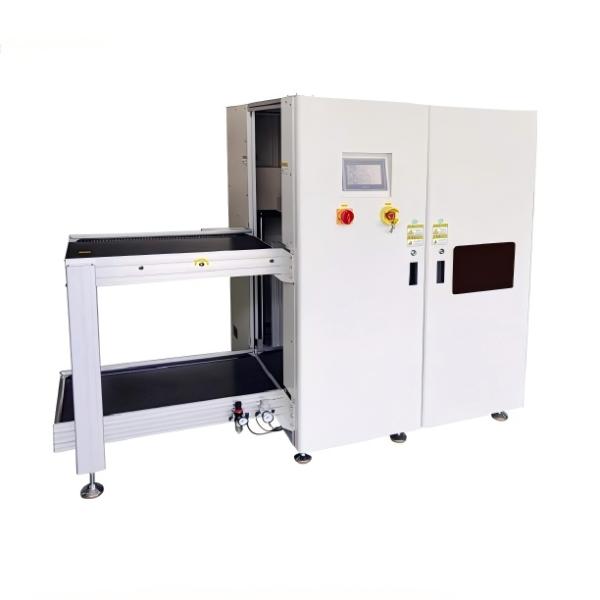

Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$5,000 / set
Weight :
220 KG
Model :
YS-250XT
Air source :
0.4-0.6MPa
Rail height :
920±30MM
Overall dimension :
1690*915*1680
Magazine dimension :
535*460*565mm
PCB dimension :
530*390mm
PCB storage quantity :
100PCS
Conveyor speed :
9M/min
Lifting platform pitch :
10,20,30,40
Power supply :
220V 50HZ
Motor power :
90W
Feeding motor :
15W
Conveyor belt :
7M flat belt
Control panel :
LED TFT touch screen
Description
Full Auto Loader & Unloader: High-Precision Automated SMT Line
Key Features
  • PLC control system for precise automation
  • LED TFT touch screen control panel for intuitive operation
  • Four-step pitch selection (10, 20, 30, 40) for flexible configuration
  • Anti-clamping plate and foolproof functionality for enhanced safety
  • Bi-directional operation (left to right or right to left) as standard
Full Auto Loader & Unloader: High-Precision Automated Smt Line
Technical Specifications
Overall Dimensions 1690 × 915 × 1680 mm
Guide Rail Material Special aluminum profile with Qianniao plastic chain
Magazine Drive 90W production brake motor with ball screw for step up/down movement
Feeding Box Transmission 15W constant speed platform motor
Clamping Mechanism Pneumatic clamp structure
Magazine Specification 535 × 460 × 565 mm (L × W × H)
Maximum PCB Size 530 × 390 mm (L × W)
PCB Storage Capacity 100 pieces
Rail Transmission Height 920 ± 30 mm
Delivery Direction Right to left / Left to right
Conveyor Belt 7M flat belt
Conveyor Transmission Speed 9 M/min
Lifting Platform Pitch Selection 10, 20, 30, 40
Control System PLC programmable controller
Operation Features Automatic board loading and board suction functionality
Control Panel True color touch screen display
Pneumatic Components Push plate cylinder position adjusted by screw rod
Power Supply 220V 50HZ
Air Source Requirement 0.4-0.6 MPa
