SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-350
MOQ :
1 set
Price :
$1,200-1,800 / set
Weight :
45 KG
Model :
YSL-350
Dimensions :
1000*700*750(mm)
PCB Width :
0-350(mm)
Motor :
1P AC220V 50/60HZ 15W
Power Supply :
1P AC220V 50/60HZ
Conveyor Height :
750±20mm
Conveyor Length :
1000(mm)
Conveyor Speed :
0-2000(mm)/Min
PCB Direction :
L-R
Belt Material :
ESD Belt
Core Components :
Motor, Pump
Inclination Angle :
6-7°
Motor Power :
15W
Conveyor Width :
Adjustable
Description

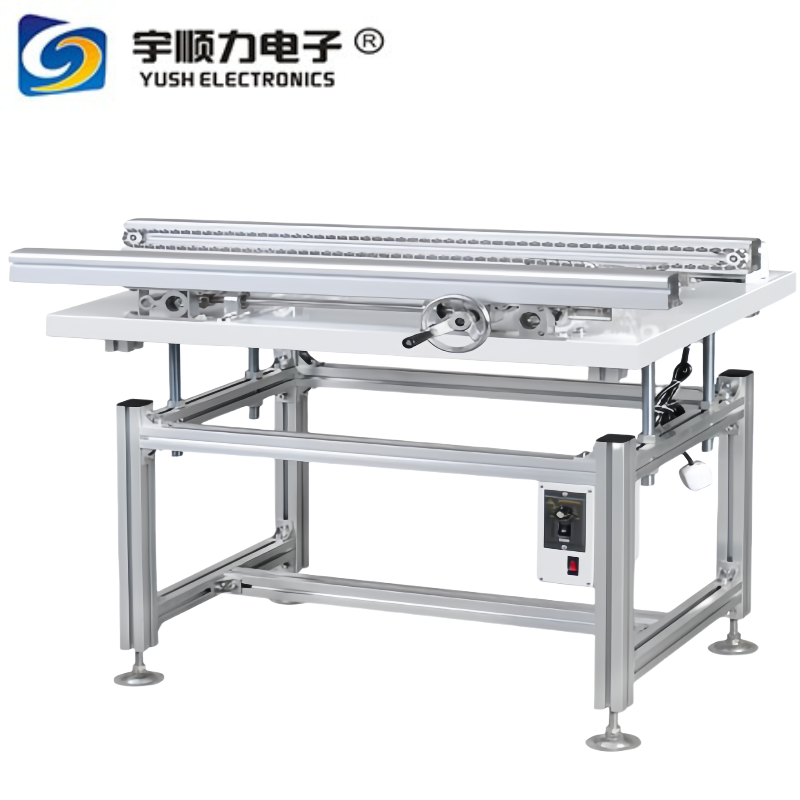

SMT Wave Solder In-Feed Conveyor - Fully Automatic Conveyor System
Product Overview

This fully automatic SMT wave solder in-feed conveyor is designed to efficiently feed PCBs or pallets into wave soldering machines at a precise 6-7° angle, ensuring optimal soldering performance and production efficiency.

Key Features
  • Feeds PCBs or pallets into wave soldering machines at optimal 6-7° angle
  • Adjustable conveyor width and angle via convenient hand crank operation
  • Specialized ESD belt and track design for smooth transmission and reliable performance
SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
Technical Specifications
Model YS-350
Dimensions (L×W×H) 1000×700×750 mm
PCB Width Capacity 0-350 mm
PCB Direction Left to Right
Conveyor Speed 0-2000 mm/Min
Motor 1P AC220V 50/60HZ 15W
Power Supply 1P AC220V 50/60HZ
Conveyor Height 750±20 mm
Belt Material ESD Belt
Conveyor Length 1000 mm
Weight Approximately 45 Kg
Trusted by Industry Leaders

Our conveyor systems are trusted by leading electronics manufacturers worldwide for their reliability and performance.

SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
Packaging & Shipping

All conveyor systems are carefully packaged to ensure safe transit and arrive ready for installation and operation.

SMT Wave Solder in Feed Conveyor Fully Automatic Conveyor
