Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Model Number :
YSPC-2A
MOQ :
1 set
Price :
$8,600 / set
Weight :
110kg
Power :
2 kW
Voltage :
220V, 110V
Working Size :
200 X 260mm
Working Pressure :
0.15-0.7Mpa
Power Supply :
AC220V + 10% 50HZ
Heating Settings :
Two Segment Settings, 4 Storage Programs
Welding Pressure :
1~50Kg
Temperature Setting :
Room Temperature ~500C Error +5C
Hot Pressing Time :
1~99s
Hot Pressing Precision :
0.05mm
Temperature Control :
Closed Loop PID
Soldering Time :
Programmable
Pressure Control :
Programmable with LCD
Welding Speed :
3-5S
Description

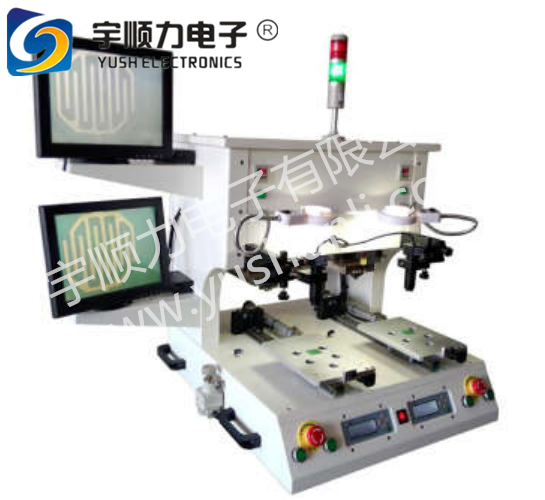

SMT PCB/FPC Hot Bar Solder Welding Machine - Desktop Heating Equipment
Technical Specifications
Working Size200 × 260mm
Machine Weight110kg
Working Pressure0.15-0.7Mpa Compressed Gas
Power SupplyAC220V + 10% 50HZ, 2000W
Heating SettingsTwo Segment Settings, 4 Storage Programs
Welding Pressure1~50Kg
Temperature SettingRoom Temperature ~500°C Error ±5°C
Hot Pressing Time1~99s
Hot Pressing Precision0.05mm

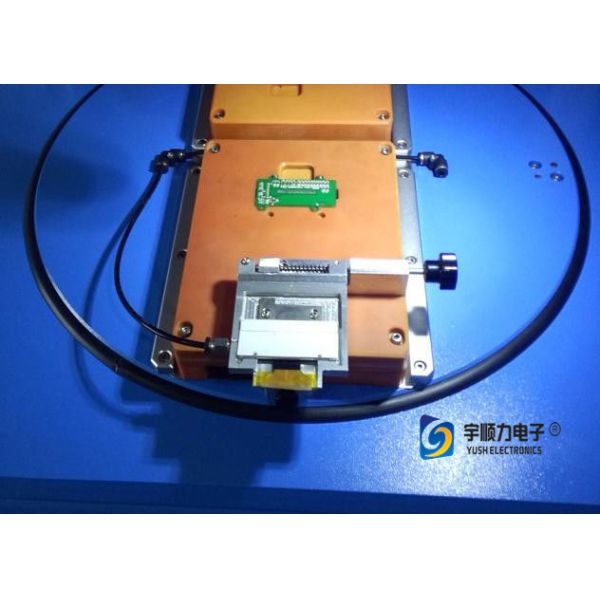

Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Operation Overview
The hot press equipment controls three essential parameters - temperature, time, and pressure - to ensure stable welding results. This machine specializes in connecting PCB, FPC, and FFC products using soldering tin to achieve reliable electrical connections.
Precise parameter setting is crucial for quality welding. Optimal solder joints require sufficient solder to properly connect both surfaces with melted tin. Effective coordination of temperature, time, and pressure parameters ensures successful welding operations.

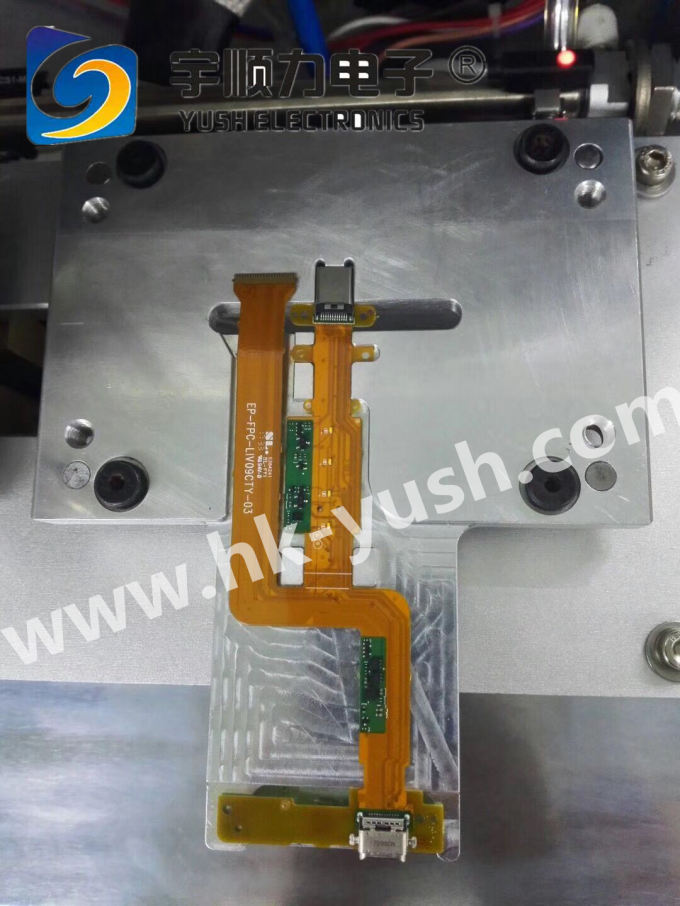

FPC construction consists of polyimide and copper layers with an operating temperature range of 130-200°C, reaching up to 300°C for short welding durations. During PCB and FPC welding, heat dissipation occurs through the indenter, material absorption, and air convection. Considering FPC thickness ranges from 0.02-0.12mm, temperature losses of 50-80°C should be factored into temperature settings.
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Key Technical Features
  • Unique pulse heat technology provides fastest soldering head heating
  • Programmable soldering temperature, heat-up rate and time duration for diverse product requirements
  • Thermocouple positioned close to working surface for accurate temperature feedback control
  • Closed Loop PID temperature control with clearly visible LED display
  • Programmable soldering time triggered by temperature
  • Floating thermode ensures consistent pressure and heat transfer
  • Programmable pressure switch with LCD display for precise force control
  • Optional CCD camera system with magnification lens for fine-pitch positioning
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Touch Screen Pulse Heat Press Features
  • Pulse heating mode with adjustable heating speed for different products
  • Special material welding head ensures even pressure distribution
  • Vacuum function for convenient counterposition adjustment
  • Rotating double stations with feed rotation for improved efficiency
  • Digital temperature control with programmable preheating and reflow welding curves
  • Digital pressure display with preset pressure range and overvoltage protection
  • PLC control with 7-inch color touch screen LCD display
  • Real-time temperature curve display with Chinese menu interface
  • Password protection, system self-inspection, and fault alarm functions
  • Microcomputer control for precise and stable operation
  • Suitable for high density TAB, TCP bonding and FPC, FFC, PCB welding
  • Minimal vibration, low noise, and stable voltage operation
  • Titanium alloy head for fast heating/cooling and corrosion resistance
  • Single head double fixture design for high efficiency and labor cost savings
Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Performance Advantages
Achieves super fine distance welding with digital temperature and pressure control. Welding speed of 3-5 seconds ensures high throughput and efficiency.
Application Functionality
Suitable for various high density TAB, TCP pressing applications and FPC, FFC, PCB welding operations. Versatile enough for multiple industrial applications.
