High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
Specifications
MOQ :
1 set
Price :
$9,600 / set
Weight :
110 KG
Temperature Tolerance :
+2℃
Working Area :
110mm X 150mm
Air Pressure :
0.5-0.7Mpa
Machine Size :
1000mm*660mm*700mm
Power Supply :
AC200V
Heat Seal Pitch :
0.25mm
Bonding Force :
3,900N
Temperature Control :
Closed loop PID
Pressure Control :
Digital programmable
Cycle Trigger :
Real-time pressure sensor
Thermode Type :
Floating
Product Fixtures :
2X
Alignment Module :
Optional CCD
Control Logic :
Microprocessor
Description
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
Advanced automated soldering solution for precision PCB assembly with high-speed rotary table design and microprocessor control.
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
Technical Specifications
  • Microprocessor-based controller for precise and consistent temperature control
  • Unique pulsed heat thermos for uniform temperature distribution with fast heating and cool-down
  • Flexible programmable profiles for targeted idle, preheat and reflow heating
  • Floating thermos and digital pressure switch for optimal pressure distribution

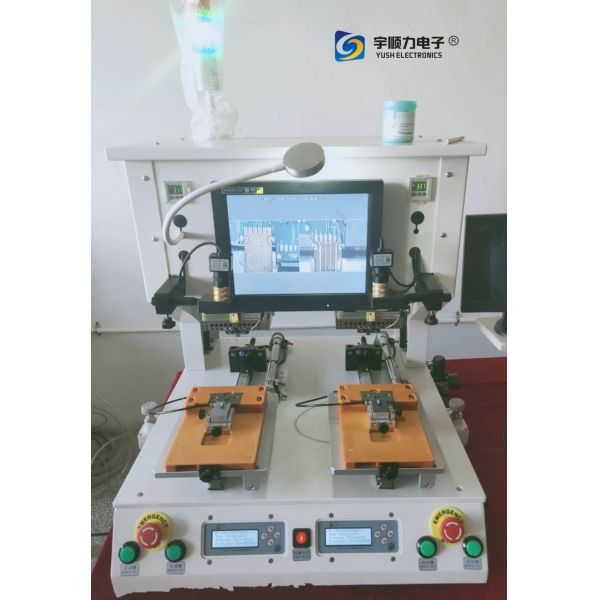

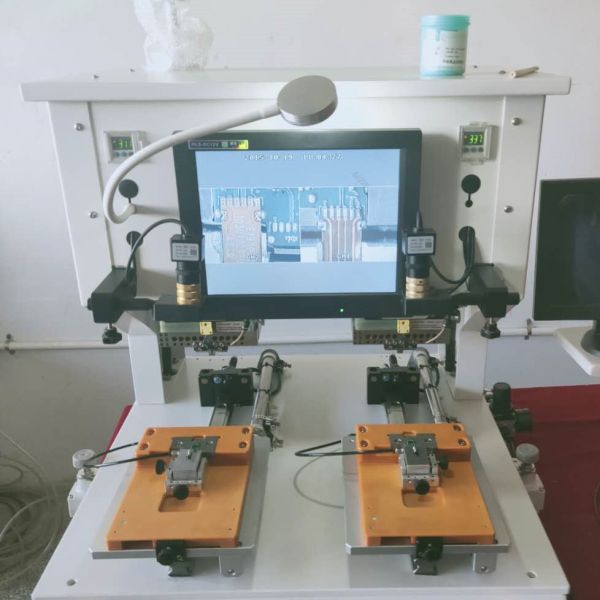

  • Optional CCD camera system with magnification lens for fine-pitch positioning
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
Key Features

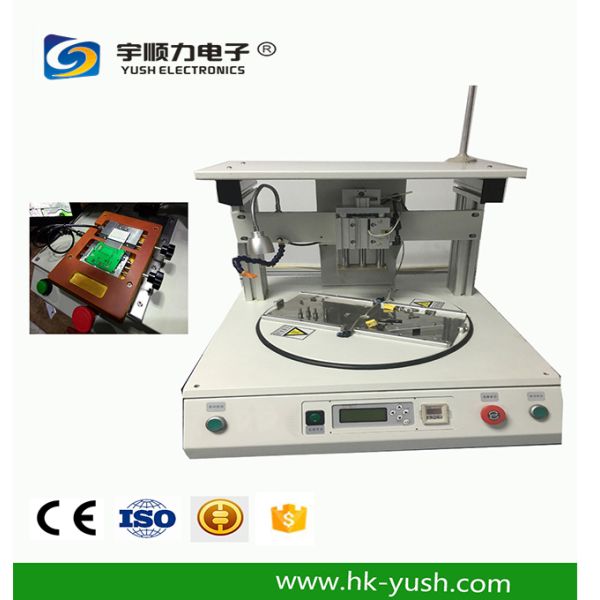

  • Extremely short cycle time with efficient rotary table design
  • Simultaneous product loading and unloading during heat sealing process
  • High quality heat seal application up to 0.25mm pitch

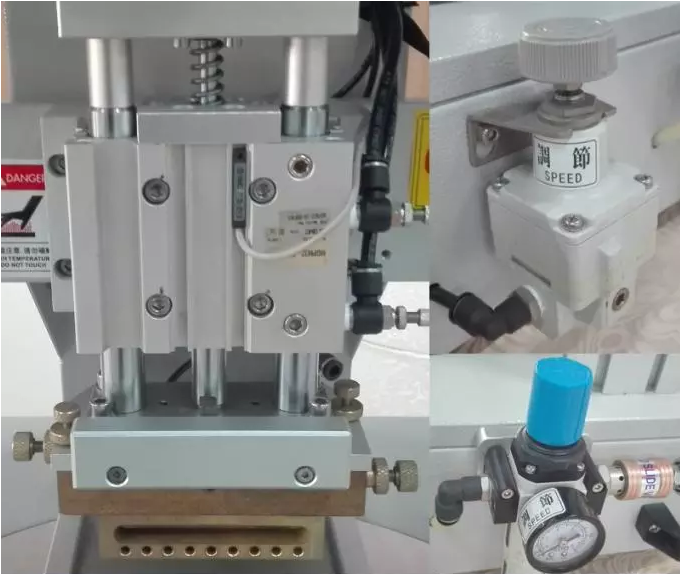

  • Pneumatic bonding head providing up to 3,900N force
  • Digital programmable pressure control with LCD display
  • Closed loop PID temperature control with visible LED display
  • Bonding cycle triggered by real-time pressure sensor
  • Floating Thermode ensures consistent pressure and heat transfer
  • Precision product fixtures with micrometer alignment and vacuum component fixation
  • Optional CCD alignment module for fine pitch applications
  • Full microprocessor logic control system
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
Packaging & Shipping
Professional packaging ensures safe delivery worldwide with comprehensive shipping options.
High Speed Automatic PCB HotBar Soldering Machine YSPP-2A High Speed Automatic PCB HotBar Soldering Machine YSPP-2A
Manufacturer Information
YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling electronic equipment machinery.
With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has become one of China's largest PCB separator production bases. The company focuses on product quality, safety, and innovation, offering high-quality, stable performance, cost-effective solutions that improve production yields and enhance customer competitiveness.
YUSH designs various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types, serving customers worldwide with reliable quality and competitive pricing.
