Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Specifications
Place of Origin :
China
Brand Name :
YUSH
Model Number :
YSPC-1A
MOQ :
1 set
Price :
$10,000 / set
Weight :
110 KG
Max Working Area :
200mm X 260mm
Fixture :
1 set
Working Air Pressure :
0.45-0.7Mpa
Temperature Setting :
20-500°C
Temperature Precision :
±2°C
Hot-pressing Time :
1-99 s
Force Head Pressure :
0.1-0.6 MPa
Voltage :
110V/220V
Size :
620mm * 690mm * 570mm
Core Components :
Motor
Heating Speed :
Fast
Noise Level :
Low
Vibration Level :
Little
Soldering Head Material :
Molybdenum alloy
Description

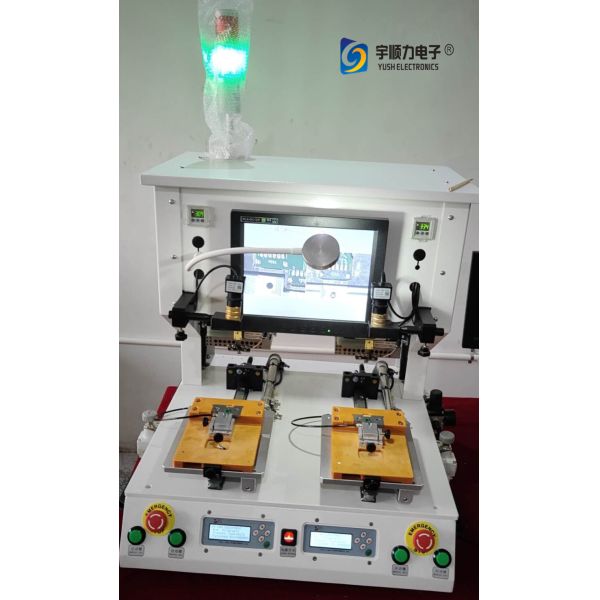

Double Worktable Pulse Bonding Hot Bar Soldering Machine for FPC/LCD
Professional Hot Bar Soldering Solution

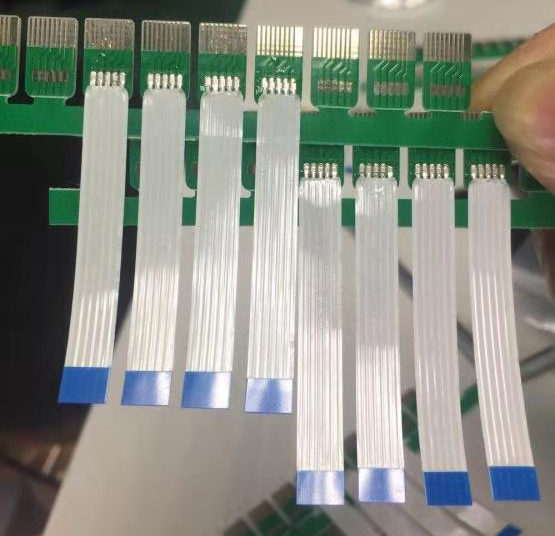

This double worktable pulse bonding hot bar soldering machine is engineered for precision bonding of challenging components and materials. It delivers exceptional performance for flexible circuits, ribbon cables, wires, flex-to-PCB, flex-to-LCD applications, and thermo compression bonding of gold ribbon across telecommunications, computer, automotive, display, and various industrial sectors.
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Advanced Technical Features
  • Molybdenum alloy head ensures temperature stability, fast heating speed, and extended service life
  • Adjustable soldering head level for uniform part assembly processing
  • Digital temperature control display for easy and clear operation
  • Digital pressure meter with preset pressure range capability
  • Specialized welding materials for superior bonding performance
  • Precise PID control with phase angle instead of pulse drive
  • Minimal vibration, low noise operation, and no voltage fluctuation
  • Molybdenum alloy soldering head provides faster warming, excellent heat transfer coefficient, and superior wear resistance compared to traditional titanium alloy
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
