Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-S330
MOQ :
1 set
Price :
$7,800 / set
Weight :
70KG
Working Area :
300*300*60 mm
Working Humidity :
20~90% no condensation
Dimensions :
485*505*610 mm
Voltage :
250W
Glue Pump :
all viscosity
Dispensing Head :
one or more
Power :
220/110 V
Speed :
Max. 500mm/sec
Dispensing Quantity :
Min. 0.001ml
Resolution :
0.01mm
Repeatability :
+/-0.01mm
Size :
460*450*480 mm
Model :
YS-S330
Description

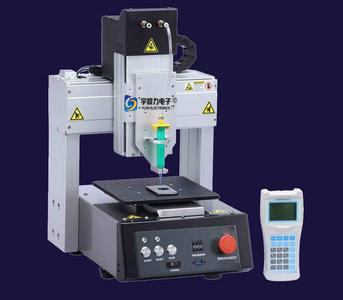

Epoxy Resin Dispensing Arm Robot
High-precision automated dispensing system for various industrial adhesives and sealants.
Key Specifications
  • Compatible with silicone glue, UV glue, AB glue, and more
  • Easy-to-modify holder and programming
  • High quality construction with CE certification
Epoxy Resin . Dispensing Arm Robot
Compatible Materials
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Methods
Capable of dotting, drawing lines, squares, circles, and various irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
Epoxy Resin . Dispensing Arm Robot
Technical Specifications
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Speed Max. 500mm/sec
Dispensing Quantity Min. 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
Epoxy Resin . Dispensing Arm Robot
Key Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path can be set in robot or imported from external computer
  • Easy operation with amendable holder and programming
  • Can store multiple independent running programs
  • High precision with well-controlled glue application
  • Configurable with multiple dispensing heads
  • Wide dispensing area for multiple product setup
  • Customizable working table available on request
Epoxy Resin . Dispensing Arm Robot
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
  • Computers, digital products, digital cameras, MP3, MP4, electronic toys
  • Switches, connectors, wire, plug cable
  • Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen
  • Optics: optical lenses, optical head
  • Mechanical hardware, battery box, trademark, steam machinery spare parts
  • LED industries
Epoxy Resin . Dispensing Arm Robot
