Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-S330
MOQ :
1 set
Price :
$5,000 / set
Weight :
70 KG
Working Area :
300*300*60 mm
Working Humidity :
20~90% no condensation
Dimensions :
485*505*610 mm
Voltage :
250W
Glue Pump Viscosity :
almost all viscosity
Dispensing Head :
one or more on request
Power :
220/110 V
Max Speed :
500mm/sec
Min Dispensing Quantity :
0.001ml
Resolution :
0.01mm
Repeatability :
+/-0.01mm
Size :
460*450*480 mm
Core Components :
Pump
Model :
YS-S330
Description

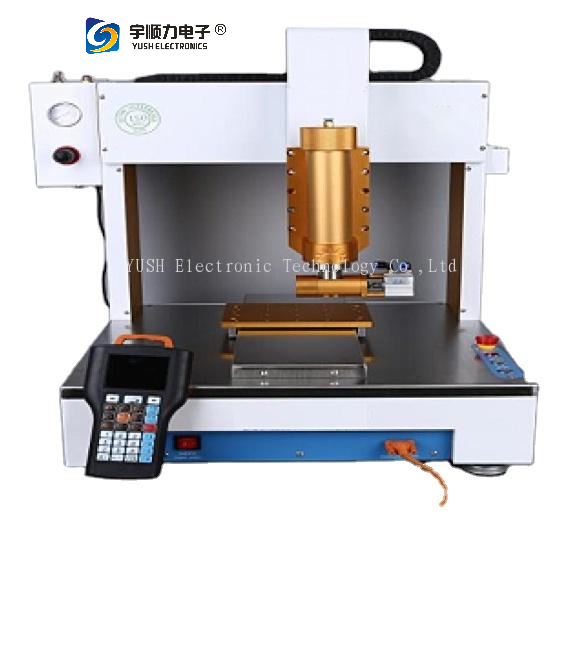

Smart Solder Paste Dispenser - Automatic Liquid Glue Dispensing Machine Robot
High-precision automated dispensing system for various industrial adhesives and solder pastes with customizable programming and wide application range.
Key Specifications
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Speed Max. 500mm/sec
Dispensing Quantity Min. 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
Compatible Materials
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Capabilities
Precision dispensing for dots, lines, squares, circles, and irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
Advanced Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path programmable in robot or imported from external computer
  • Easy operation with amendable holder and programs
  • Multiple independent running program storage
  • High precision glue control system
  • Configurable multiple dispensing heads
  • Wide dispensing area supporting multiple products
  • Customizable working table available
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: transformers, SMD transformers, relays, coil motors
  • Communications industry: mobile phone components, radios, telephones
  • Computers and digital products: electronic toys, MP3/MP4 players
  • Switches, connectors, wires, and cable assemblies
  • Electronics: components, integrated circuits, PCB solder paste, LCD screens
  • Optics: lenses and optical heads
  • Mechanical hardware, battery boxes, and machinery spare parts
  • LED manufacturing industries
Quality Assurance
High quality construction with CE certification compliance for industrial safety standards.
