700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000 / set
Weight :
110kg
Working size :
200 x 260mm
Power supply :
AC220V + 10% 50HZ, 2000W
Working environment :
10-60°C, 40%-95%
Hot pressing time :
1~99s
Hot pressing precision :
0.05mm
Working pressure :
0.15-0.7Mpa
Welding pressure :
1~50Kg
Temperature setting :
room temperature ~500°C ±5°C
Hot press head size :
90X5mm
Machine size :
700 x 800 x 950mm
Heating settings :
two segment settings, 4 storage programs
Core components :
PLC, Engine, Bearing, Gearbox, Motor
Temperature control :
Closed Loop PID
Display type :
7 inch color touch screen LCD
Description

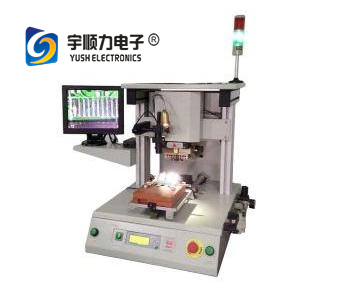

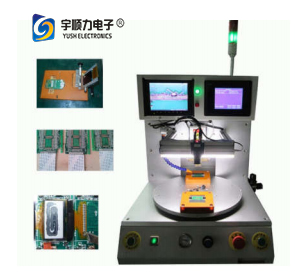

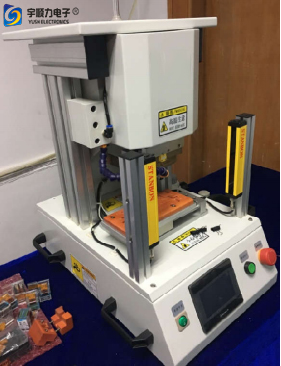

700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine
Automatic Soldering Robot for high-precision PCB, FPC, and FFC welding applications
Equipment Operation Overview
This precision hot press equipment controls three critical parameters - temperature, time, and pressure - to ensure stable and reliable welding results. The system is specifically designed for connecting PCB, FPC, and FPC products using soldering tin to achieve optimal electrical functionality.
Accurate parameter setting is essential for quality solder joints. Proper configuration ensures sufficient solder material welds both surfaces effectively, with melted tin properly bonding the components. The coordinated control of temperature, time, and pressure parameters enables consistent, high-quality welding performance.
FPC construction consists of polyimide and copper platinum layers with an operating temperature range of 130-200°C, capable of short-term welding up to 300°C. During PCB and FPC welding, heat dissipation occurs through the indenter, component absorption, and air convection. Given FPC thickness ranges from 0.02-0.12mm, temperature losses of 50-80°C typically occur at the welding surface, requiring compensation in temperature settings.
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
Advanced Technical Features
  • Unique pulse heat technology provides fastest soldering head heating
  • Programmable soldering temperature, heat-up rate and time duration for diverse product requirements
  • Thermocouple positioned close to working surface for accurate temperature feedback control
  • Closed Loop PID temperature control with clearly visible LED display
  • Programmable soldering time triggered by temperature
  • Floating thermode ensures consistent pressure and heat transfer
  • Programmable pressure switch with LCD display for precise force control
  • CCD camera system with magnification lens available for fine-pitch positioning
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
Touch Screen Pulse Heat Press Capabilities
  • Pulse heating mode with adjustable heating speed for different products
  • Special material welding head ensures even pressure distribution
  • Vacuum function for convenient counterposition adjustment
  • Rotating double station feed mechanism improves working efficiency
  • Temperature numerical control with programmable curves including preheating and reflow welding
  • Digital display pressure switch with preset pressure range and overvoltage protection
  • PLC control with 7-inch color touch screen LCD display and real-time temperature curve
  • Chinese menu interface with simplified parameter setting and operation
  • Password protection, system self-inspection, and fault alarm display functions
  • Microcomputer control for accurate and stable performance
  • Ideal for high density TAB, TCP bonding and FPC, FFC, PCB welding
  • Minimal vibration, low noise operation, and stable voltage
  • Advanced head materials (titanium alloy) for fast heating/cooling and corrosion resistance
  • Single head double fixture design for high efficiency and labor cost savings
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering Robot
Technical Specifications
Working Size200 x 260mm
Machine Weight110kg
Working Pressure0.15-0.7Mpa compressed gas
Power SupplyAC220V + 10% 50HZ, 2000W
Heating SettingsTwo segment settings, 4 storage programs
Working Environment10-60°C, 40%-95% humidity
Welding Pressure1-50Kg
Temperature SettingRoom temperature - 500°C (±5°C error)
Hot Pressing Time1-99s
Hot Pressing Precision0.05mm
Hot Press Head Size90 x 5mm
Alignment ModeCCD + liquid crystal display
Feeding ModeManual extraction
Starting ModeHand press
Machine Size700 x 800 x 950mm (L x W x H)
ConfigurationDesktop and erect models available
