Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-S330
MOQ :
1 set
Price :
$5,000 / set
Weight :
70KG
Working Area :
300*300*60 mm
Working Humidity :
20~90% no condensation
Dimensions :
485*505*610 mm
Voltage :
250W
Glue Pump Viscosity :
almost all viscosity
Dispensing Head :
one or more on request
Power :
220/110 V
Speed :
Max. 500mm/sec
Dispensing Quantity :
Min. 0.001ml
Resolution :
0.01mm
Repeatability :
+/-0.01mm
Size :
460*450*480 mm
Core Components :
Motor
Description

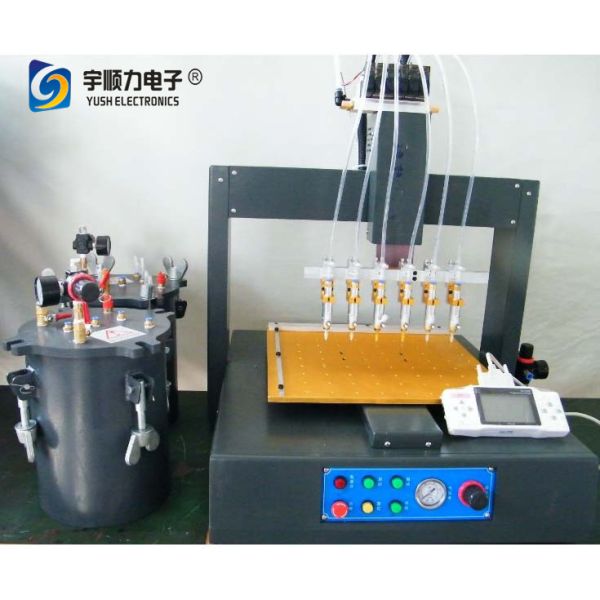

SMT Glue Dispenser - Automatic Glue Dispenser Machine
Our SMT glue dispenser is a high-precision automatic dispensing machine designed for various industrial applications requiring accurate adhesive placement.
Key Specifications
  • Compatible with silicone glue, UV glue, AB glue, and more
  • Easy-to-modify holder and programming
  • High quality construction with CE certification
SMT Glue Dispenser . Automatic Glue Dispenser Machine SMT Glue Dispenser . Automatic Glue Dispenser Machine
Compatible Materials
Suitable for silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Capabilities
Can perform dots, draw lines, squares, circles, and various irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
SMT Glue Dispenser . Automatic Glue Dispenser Machine SMT Glue Dispenser . Automatic Glue Dispenser Machine
Technical Specifications
ModelYS-S330
Power220/110 V
Voltage250W
Working Area (X*Y*Z)300*300*60 mm (Customizable)
SpeedMax. 500mm/sec
Dispensing QuantityMin. 0.001ml
Resolution0.01mm
Repeatability+/-0.01mm
Size (L*W*H)460*450*480 mm
Weight70KG
SMT Glue Dispenser . Automatic Glue Dispenser Machine SMT Glue Dispenser . Automatic Glue Dispenser Machine
Advanced Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path can be set in robot or imported from external computer
  • Easy operation with amendable holder and programming
  • Can store multiple independent running programs
  • High precision with well-controlled glue application
  • Configurable with multiple dispensing heads
  • Wide dispensing area capable of handling several products
  • Customizable working table available on request
SMT Glue Dispenser . Automatic Glue Dispenser Machine SMT Glue Dispenser . Automatic Glue Dispenser Machine
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
  • Computers, digital products, digital cameras, MP3, MP4, electronic toys
  • Switches, connectors, wire, plug cable
  • Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screens
  • Optics: optical lenses, optical heads
  • Mechanical hardware, battery boxes, trademarks, steam machinery spare parts
  • LED industries
SMT Glue Dispenser . Automatic Glue Dispenser Machine SMT Glue Dispenser . Automatic Glue Dispenser Machine
