Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$3,800 / set
Weight :
70 KG
Working Area :
300*300*60 mm
Working Humidity :
20~90% no condensation
Dimensions :
485*505*610 mm
Voltage :
250W
Glue Pump Viscosity :
almost all viscosity
Dispensing Head :
one or more on request
Power :
220/110 V
Max Speed :
500mm/sec
Min Dispensing Quantity :
0.001ml
Resolution :
0.01mm
Repeatability :
+/-0.01mm
Machine Size :
460*450*480 mm
Model :
YS-S330
Core Components :
Motor
Description
High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing
Automatic epoxy resin glue dispensing machine designed for precision applications in SMT workshop processing.
High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing
Key Specifications
  • Compatible with silicone glue, UV glue, AB glue, and more
  • Easy-to-amend holder and programs
  • High quality construction with CE certification
Compatible Materials
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing
Application Capabilities

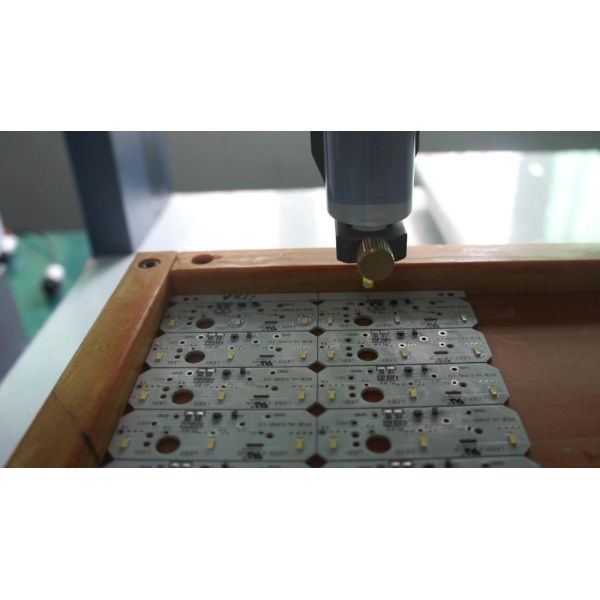

Can dot, draw lines, squares, circles and all kinds of irregular graphics on surfaces, outside walls, vertical planes, and product gaps.
Technical Specifications
ModelYS-S330
Power220/110 V
Voltage250W
Working area (X*Y*Z)300*300*60 mm (Can be customized)
SpeedMax. 500mm/sec
Dispensing quantityMin. 0.001ml
Resolution0.01mm
Repeatability+/-0.01mm
Size (L*W*H)460*450*480 mm
Weight70KG
High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing
Key Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path can be set in robot or imported from external computer
  • Easy operation with amendable holder and programs
  • Can store multiple independent running programs
  • High precision with well-controlled glue application
  • Configurable with multiple dispensing heads
  • Wide dispensing area for multiple product setup
  • Customizable working table available on request
High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
  • Computers, digital products, digital cameras, MP3, MP4, electronic toys
  • Switches, connectors, wire, plug cable
  • Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen
  • Optics: optical lenses, optical head
  • Mechanical hardware, battery box, trademark, steam machinery spare parts
  • LED industries
High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing High Efficiency Automatic Epoxy Resin Glue Dispenser for SMT Workshop Processing
