Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$30,000 / set
Weight :
530/700 kg
Voltage :
110/220V
Power :
40W
Dimensions :
730X810X1700 mm
Worktable size :
330 x 220 mm
Depression pressure :
0.45-0.70 Pa
Punch force :
3-30 T
Working area :
330*220 mm
Working air pressure :
0.5-0.7 Mpa
PCB tool size :
730*810*1700 mm
PCB tool weight :
530 kg
Core components :
Pressure Vessel
Machine type :
Punching Machine
Power supply :
110/220V
Model :
YSPE
Description
Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line

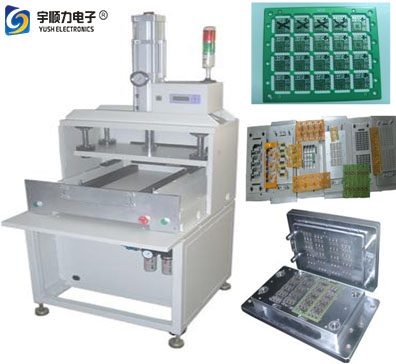

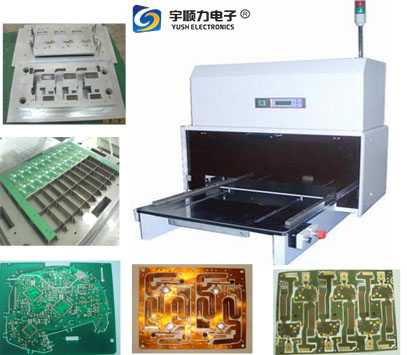

FPC / PCB Servo Hydraulic Punching Machine, 8T / 15T / 30T
Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line
Key Features
  • Applicable for cutting Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB

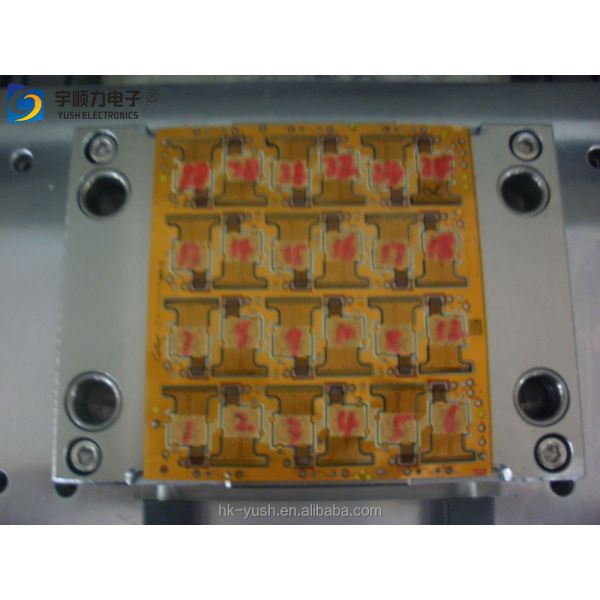

  • Utilizes punching molds for high-efficiency cutting operations
  • Supports multiple mold configurations with easy mold changing capability
  • Simple and safe operation with user-friendly controls
Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line
Technical Specifications
Model YSPE
Punch Capacity (T) 3 (customizable up to 30T)
Working Area (mm) 330×220 (customizable)
Voltage (V) 110/220
Working Air Pressure (MPa) 0.5-0.7
PCB Punching Tool Size (mm) 730×810×1700
PCB Punching Tool Weight (kg) 530
Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line Professional High Precision FPC/PCB Servo Hydraulic Punching Machine 8T/15T/30T for SMT Assembly Line
Advanced Operational Features
  • Robust machine structure with 4 casters for easy mobility and positioning
  • Supports multiple mold types with quick and easy mold changing

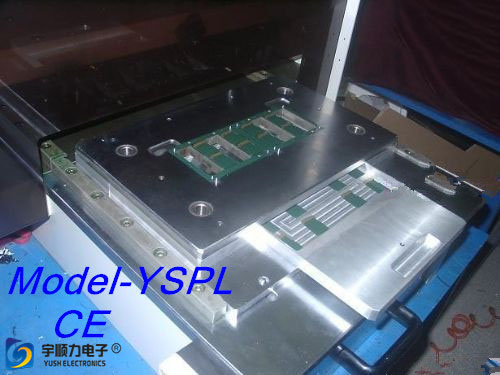

  • Automatic lower mold in/out system for convenient product handling
  • Finished products automatically fall into collection drawer
  • Minimizes internal stress during PCB cutting to prevent tin stress cracking
  • High-efficiency punching for semi-finished PCB processing
  • Custom mold and die manufacturing available according to customer requirements
