Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Certification :
CE
MOQ :
1 set
Price :
$50,000 / set
Weight :
530/700 kg
Voltage :
110/220V
Power :
40W
Worktable size :
330 x 220 mm
Punch force :
3-30 T
Air pressure :
0.5-0.7 Mpa
Dimensions :
730X810X1700 mm
Core components :
PLC, Motor
Machine type :
FPCB depaneling machine
Depression :
0.45-0.70 Pa
Working area :
330*220 mm
Tool size :
730*810*1700 mm
Tool weight :
530 kg
Punch force range :
3-30 T
Working pressure :
0.5-0.7 Mpa
Description

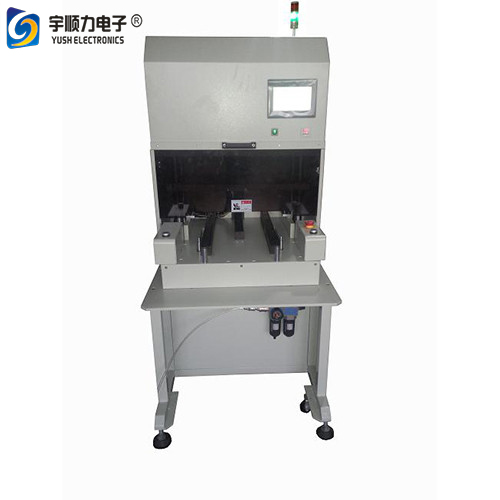

Professional YSPE High Precision PCB Punching Machine
The YSPE FPCB punching machine delivers exceptional precision and efficiency for SMT assembly line operations, designed to handle various PCB types with reliable performance.
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Key Features

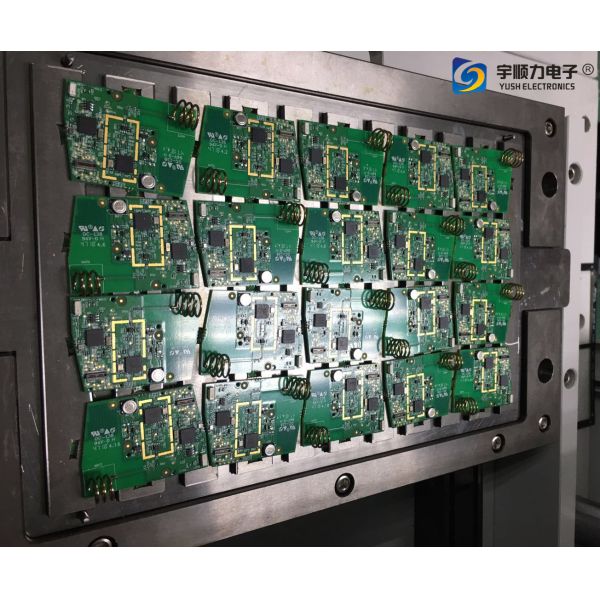

  • Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials
  • Utilizes punching mould technology for high-efficiency cutting
  • Supports multiple mold configurations with easy changeover capability
  • Simple and safe operation with user-friendly controls
Technical Specifications
Model YSPE
Punch Capacity (T) 3 (customizable up to 30T)
Working Area (mm) 330 × 220 (customizable)
Voltage (V) 110/220
Working Air Pressure (MPa) 0.5-0.7
Machine Dimensions (mm) 730 × 810 × 1700
Machine Weight (kg) 530
Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line Professional YSPE High Precision High Efficiency PCB Punching Machine for SMT Assembly Line
Advanced Operational Features
  • Robust construction with 4 casters for easy mobility and positioning

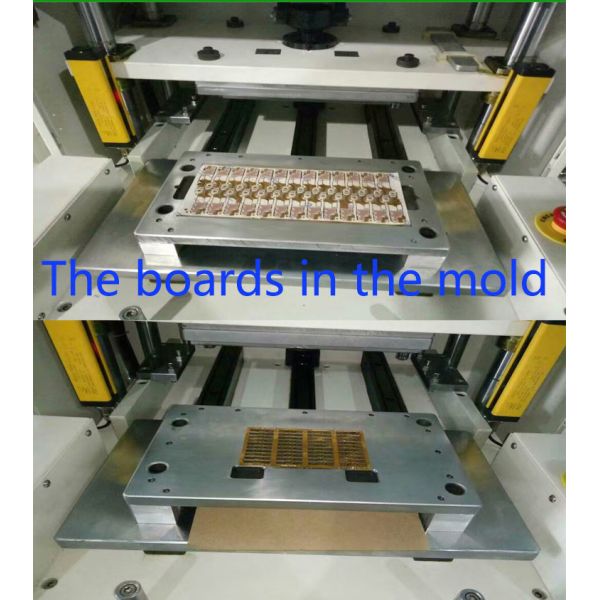

  • Quick mold change capability for versatile production requirements
  • Automatic lower mold in/out system for easy product handling
  • Integrated drawer system for finished product collection
  • Minimizes internal stress during PCB cutting to prevent tin stress cracking
  • High-efficiency punching for semi-finished PCB processing
  • Custom mold and die fabrication available to meet specific customer requirements
The YSPE PCB punching machine combines precision engineering with operational efficiency, making it an ideal solution for high-volume SMT assembly environments requiring reliable depaneling capabilities.
