Specifications
Place of Origin :
Guangdong, China
Brand Name :
YuSH
Certification :
CE
MOQ :
1 set
Price :
$50,000 / set
Weight :
530/700 kg
Voltage :
110/220V
Power :
40W
Dimensions :
730X810X1700 mm
Worktable size :
330 x 220 mm
Punch force :
3-30 T
Working air pressure :
0.5-0.7 Mpa
Depression :
0.45-0.70 Pa
Core components :
PLC, Motor
Machine type :
Punching Machine
PCB tool size :
730*810*1700 mm
PCB tool weight :
530 kg
Working area :
330*220 mm
Electrical equipment :
220V
Condition :
New
Description
SMT Line Supporting YSPE High Efficiency PCB Punching Machine
The YSPE PCB High Efficiency Punching Machine is designed for SMT workshop processing, offering precision cutting solutions for various PCB types with exceptional efficiency and reliability.
SMT Line Supporting YSPE High Efficiency PCB Punching Machine for SMT Workshop Processing
Key Features of YSPE PCB Punching Machine
  • Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials
  • Utilizes punching mold technology for high-efficiency cutting operations
  • Supports multiple mold configurations with easy mold changing capability
  • Simple and safe operation with user-friendly controls
SMT Line Supporting YSPE High Efficiency PCB Punching Machine for SMT Workshop Processing
Technical Specifications
Model YSPE
Punch Contribution (T) 3 (customizable up to 30T)
Working Area (mm) 330 × 220 (customizable)
Voltage (V) 110/220
Working Air Pressure (MPa) 0.5-0.7
PCB Punching Tool Size (mm) 730 × 810 × 1700
PCB Punching Tool Weight (kg) 530
Advanced Operational Features

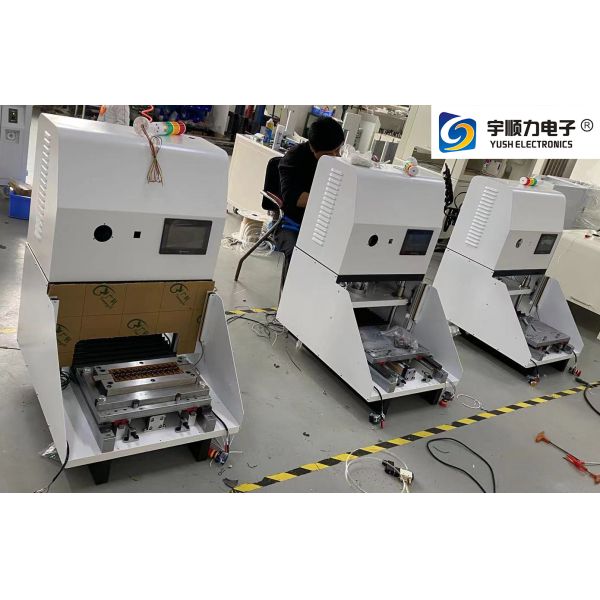

  • Robust machine structure with mobility provided by 4 casters

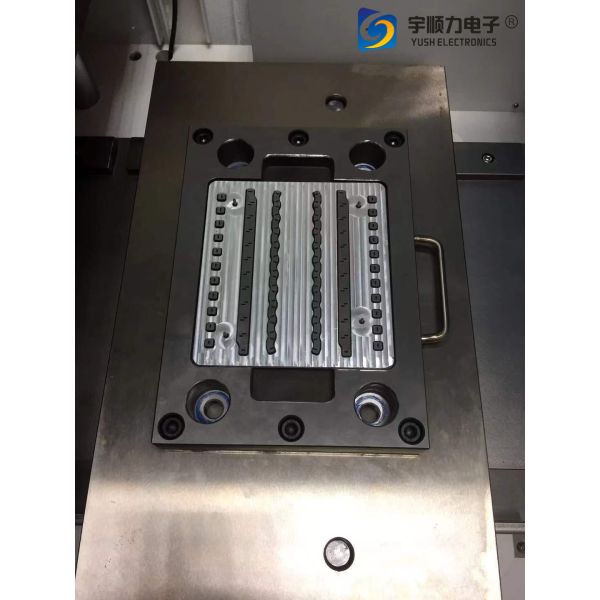

  • Versatile mold compatibility with easy mold changing system
  • Automatic lower mold in/out mechanism for simplified product handling
  • Integrated drawer system for finished product collection
  • Minimizes internal stress during PCB cutting to prevent tin stress cracking

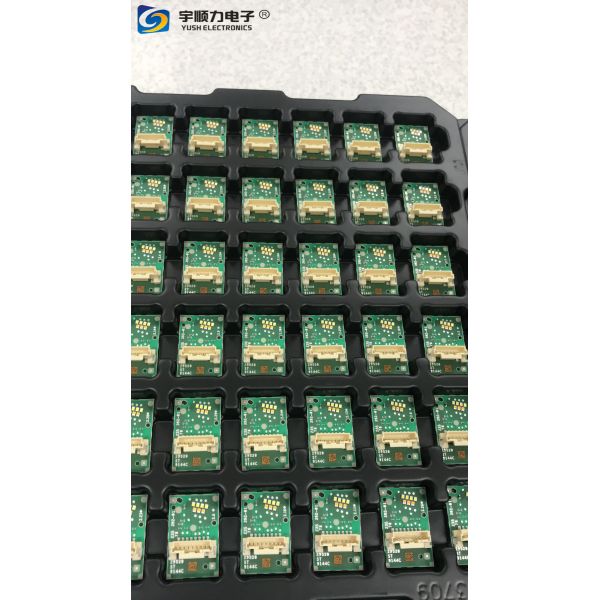

  • High-efficiency punching for semi-finished PCB processing
  • Custom mold and die manufacturing available per customer requirements
SMT Line Supporting YSPE High Efficiency PCB Punching Machine for SMT Workshop Processing
