Semi-Automatic SMT PCB Solder Paste Printer
Semi-Automatic SMT PCB Solder Paste Printer
Semi-Automatic SMT PCB Solder Paste Printer
Semi-Automatic SMT PCB Solder Paste Printer
Semi-Automatic SMT PCB Solder Paste Printer
Semi-Automatic SMT PCB Solder Paste Printer
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$23,000-58,000 / set
Weight :
300 kg
Power :
10 kW
Voltage :
220V, 110V
Gross Power :
2KW
Max PCB size :
1200*300mm
Printing accuracy :
±0.02 mm
PCB thickness :
0.2-2.0mm
Power supply :
220V, 50/60 HZ
Working table size :
1280X300mm
Max frame size :
1300X320mm
Max print size :
1200X300mm
Max stencil size :
1260mm*430mm
Micro-adjustment range :
±10mm
Machine repeatability accuracy :
±0.02mm
Air pressure :
0.4-0.6Mpa
Description

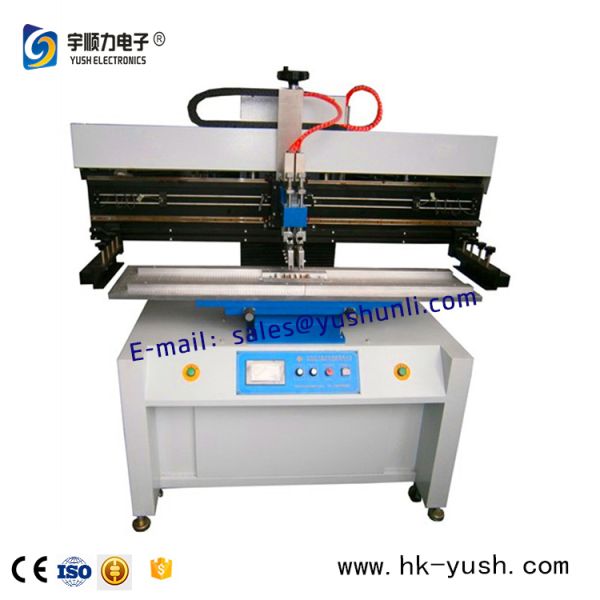

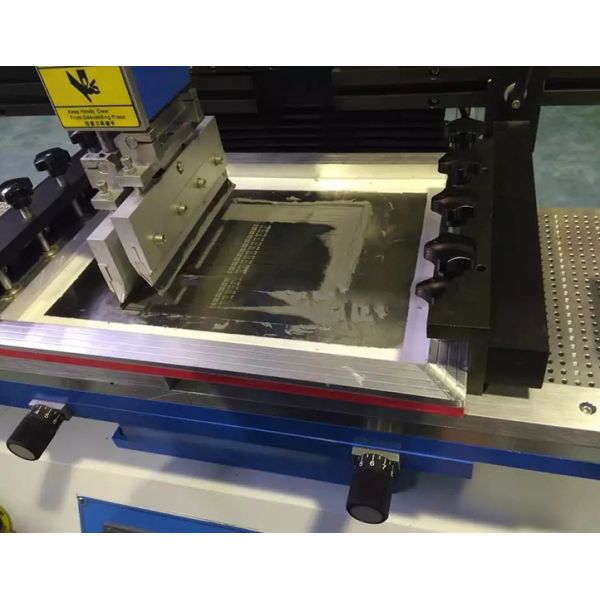

Semi-Automatic SMT PCB Solder Paste Printer
High-precision semi-automatic solder paste printing solution for SMT PCB assembly, designed for reliable performance in manufacturing environments.
Semi-Automatic SMT PCB Solder Paste Printer Semi-Automatic SMT PCB Solder Paste Printer
Technical Specifications
Working table size (X,Y direction) 1280 × 300 mm
Maximum frame size (X,Y direction) 1300 × 320 mm
Maximum print size of PCB board (X,Y direction) 1200 × 300 mm
Maximum PCB stencil sizes 1260 mm × 430 mm
PCB thickness range 0 - 100.0 mm
Positioning method PCB outer or pin holes positioning
Micro-adjustment range (X, Y) Front/back ±10 mm, Right/left ±10 mm
Printing accuracy ±0.01 mm
Machine repeatability accuracy ±0.02 mm
Minimum internal clearance 0.35 mm
Air pressure requirement 0.4 - 0.6 MPa / 4 - 6 kgf/cm²
Power supply Single phase 220V, 50/60 Hz, 100W
Dimensions 1600 mm × 900 mm × 1650 mm
Weight Approximately 300 kg
Semi-Automatic SMT PCB Solder Paste Printer Semi-Automatic SMT PCB Solder Paste Printer
Packaging & Shipping
Semi-Automatic SMT PCB Solder Paste Printer Semi-Automatic SMT PCB Solder Paste Printer

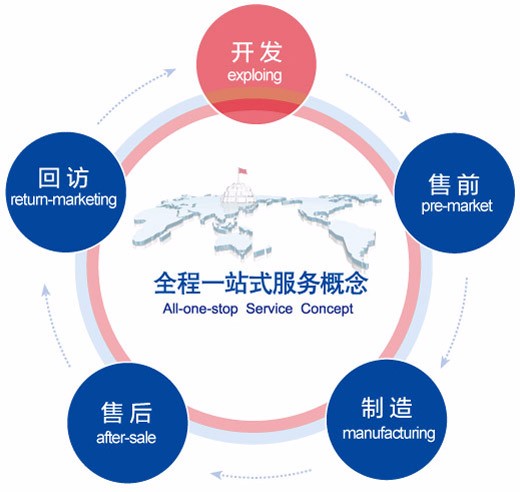

Our Services
Semi-Automatic SMT PCB Solder Paste Printer Semi-Automatic SMT PCB Solder Paste Printer
