Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Automatic CNC V-CUT Machine Manufacture
Specifications
Place of Origin :
China
Brand Name :
YUSH
MOQ :
1 sheet
Price :
$30,000 / sheet
Weight :
185 kg
Power :
10 kW
Voltage :
220V, 110V
Cutting Width :
75mm wide vertical 480mm
Wide :
380mm
Thickness :
0.6~2.5 mm
Speed :
12mm/min
Total Blades :
Upper 10pcs, Down 10pcs
Spindle Motor :
3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed
Mechanical Dimensions :
1200 mm x 980 mm x 1400 mm (W x D x H)
Thickness Range :
0.8-3.2 mm
Cardboard V-cut :
≥10 pit (up and down 10 knives)
Aluminum Plate V-cut :
≥5 pit (up and down 4 knives)
Fiberboard V-cut :
≥8 pit (up and down 8 knives)
Description

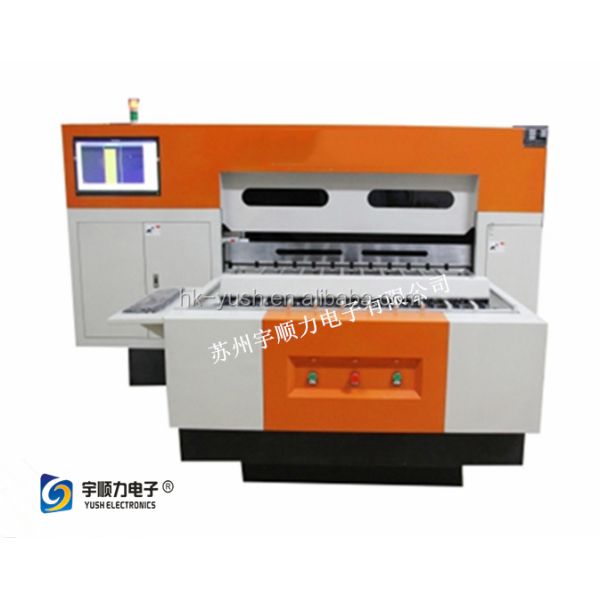

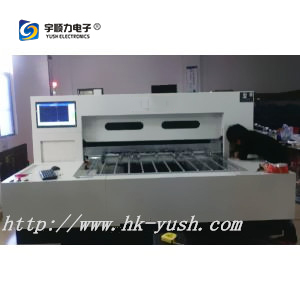

Automatic CNC V-CUT Machine
Professional manual V-cut machine for PCB V-groove scoring and depaneling applications.
Key Specifications
  • Cutting Width: Longitudinal 70mm; Wide: 380mm
  • Material Thickness: 0.6-2.5 mm
  • Cutting Speed: 12 mm/min
  • Total Blades: Upper 10 pieces, Lower 10 pieces
Automatic CNC V-CUT Machine Manufacture
Operation Guidelines
Speed Adjustment
V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower speeds, while thinner plates can use faster settings. For standard 1.6mm plate thickness, recommended speed is approximately 25.
Cutting Parameters
V-CUT aluminum base plate conveying speed determines cutter knife shaft speed. Standard plates can be processed at slower speeds for optimal results.
Tool Compatibility
Standard V-CUT knives are not suitable for aluminum plates. Specialized aluminum plate V-CUT knives can also be used for standard V-cut applications.
Cooling Requirements
When processing aluminum plates, cooling water or alcohol must be used. Never operate without proper cooling fluid.
Automatic CNC V-CUT Machine Manufacture
YS-1200480 Aluminum V-CUT Machine Specifications
Model Number YS-1200
Cutting Width 75mm vertical × 480mm wide
Material Thickness 0.8-3.2 mm
Cardboard Capacity ≥10 cuts per cycle (10 upper + 10 lower knives)
Aluminum Plate Capacity ≥5 cuts per cycle (4 upper + 4 lower knives)
Fiberboard Capacity ≥8 cuts per cycle (8 upper + 8 lower knives)
Processing Speed 8 m/min
Spindle Motor 3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed motor
Machine Dimensions 1200mm × 980mm × 1400mm (W × D × H)
Weight 185KG

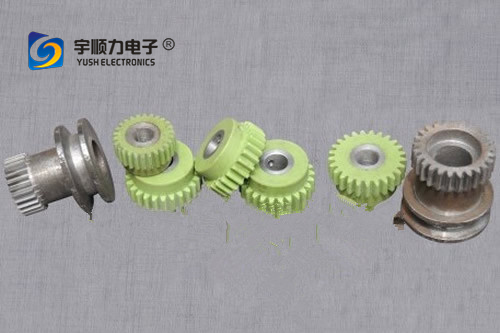

Standard Accessories
Washer set, V-CUT knife (4 pieces), Shield bearing (10 pieces), Wrench set, Hex key set, Blades turret (1 piece)
Automatic CNC V-CUT Machine Manufacture
